Air Outlet Replacement - Rear Window

AIR OUTLET REPLACEMENT - REAR FLOOR

REMOVAL PROCEDURE




1. Remove the console.

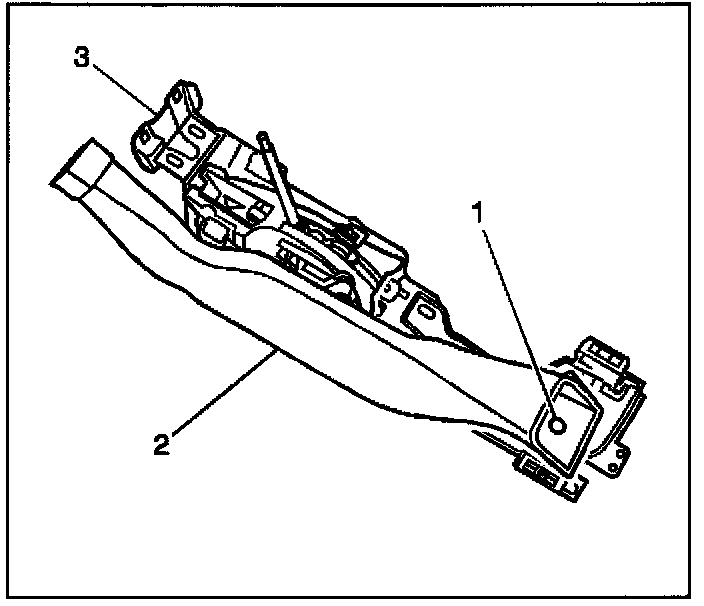

2. Remove the push pin (1).

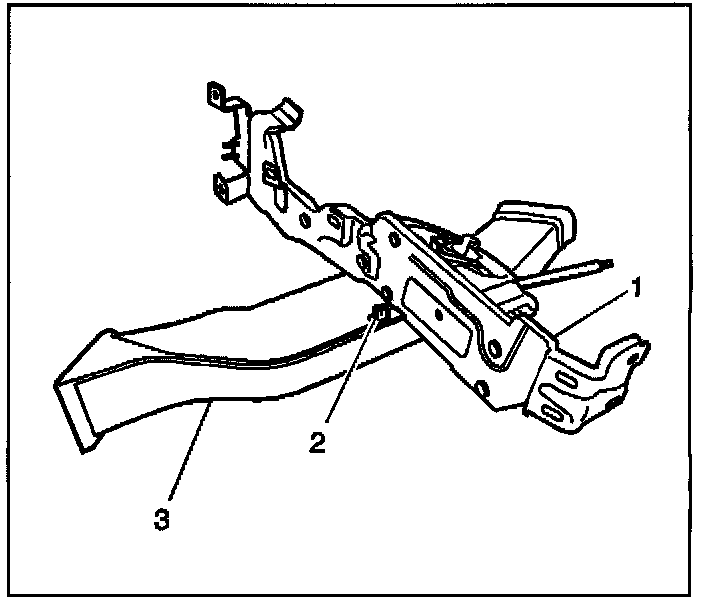

3. Remove the air outlet duct-rear (3) from the console support bracket (1).


INSTALLATION PROCEDURE

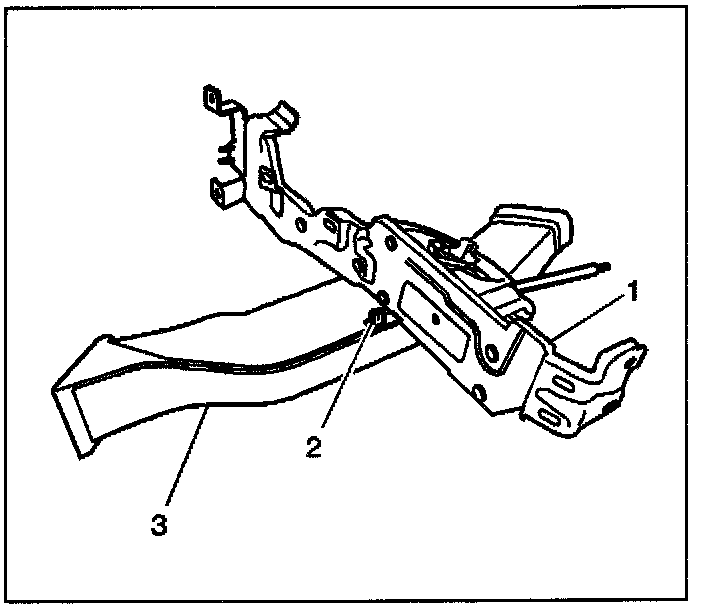

1. Install the air outlet duct-rear (3) to the console support bracket (1).

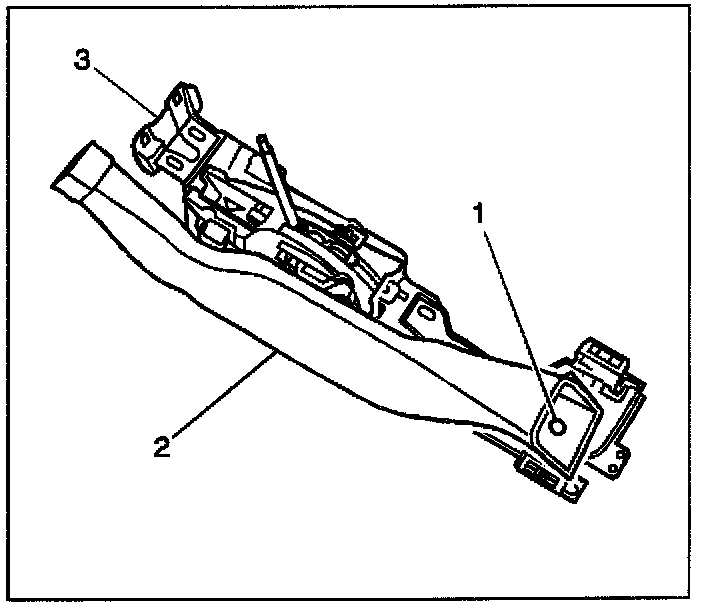

2. Install the push pin (1).
3. Install the console.
