Home >> Hummer >> 2004 >> H2 V8-6.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Case Fluid Passages (Control Valve Body Side)

Case Fluid Passages (Control Valve Body Side)

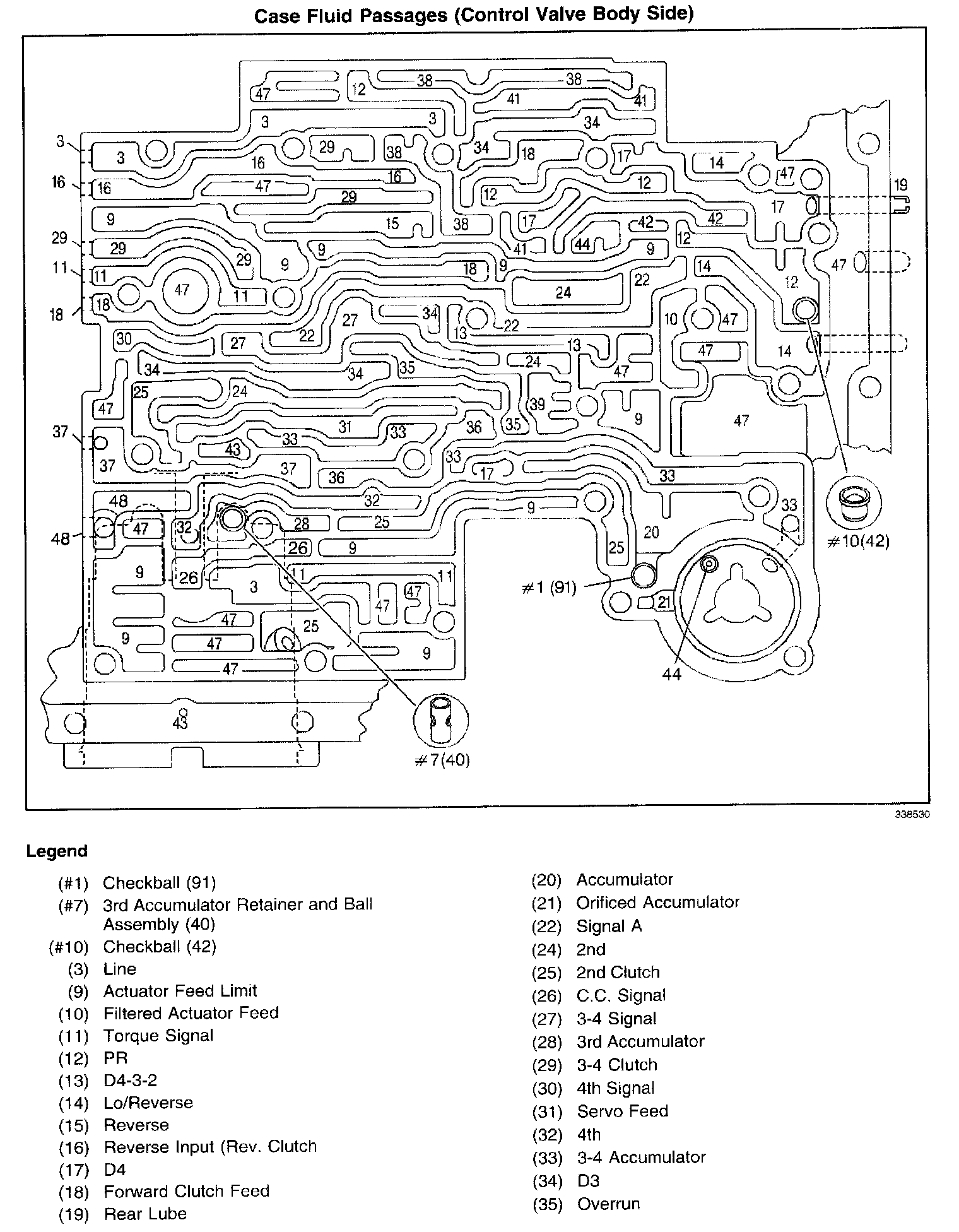

Case Fluid Passages (Control Valve Body Side) Part 1:

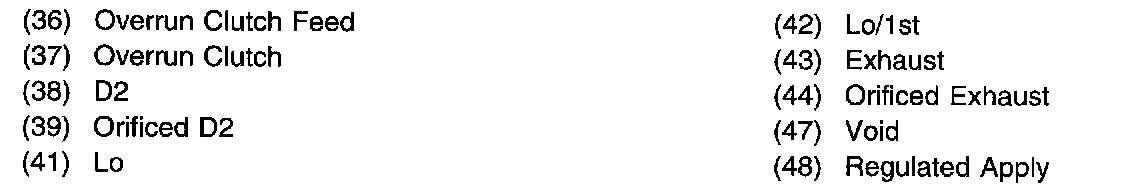

Case Fluid Passages (Control Valve Body Side) Part 2:
