Automatic Transmission/Transaxle: Application and ID

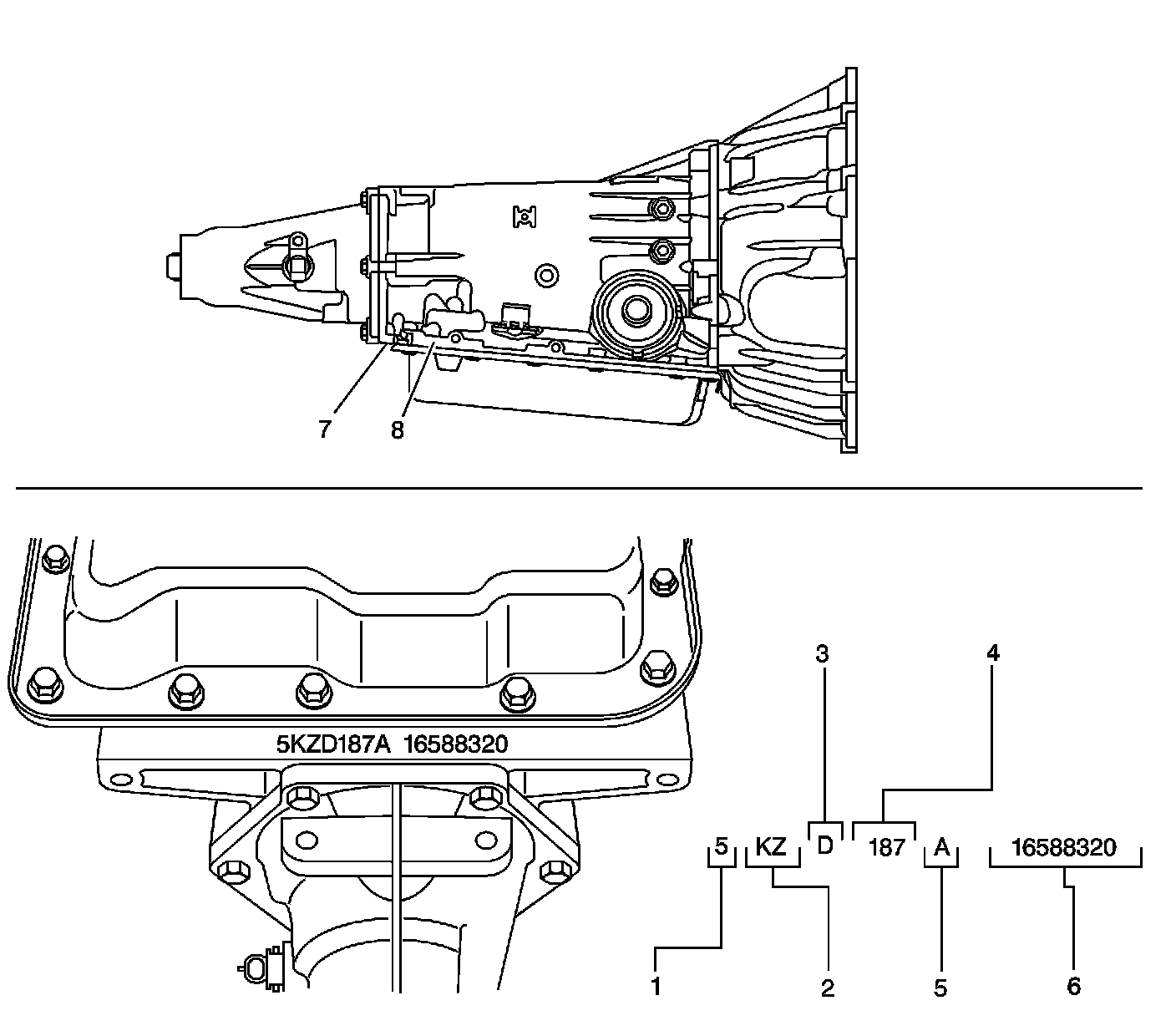

Transmission Identification Information1 - (5 = 2005)
2 - Model
3 - Hydra-Matic 4L60-E
4 - Julian Date (or Day of the Year)

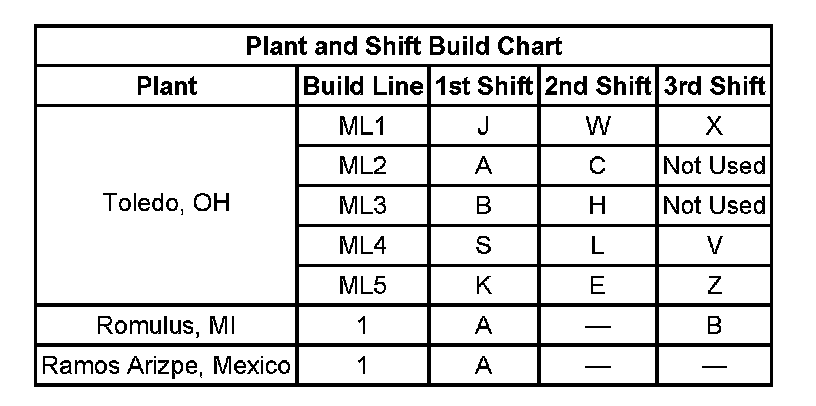

5 - Shift Built (A, B, J = First Shift; C, H, W = Second Shift)
6 - Serial Number
7 - Transmission ID Location
7 - Transmission ID Location
8 - Optional Transmission ID Location
