Winch: Service and Repair

Front Pull Winch Receiver Replacement

Removal Procedure

1. Remove the bumper. Refer to Front Bumper Replacement (Service and Repair) .

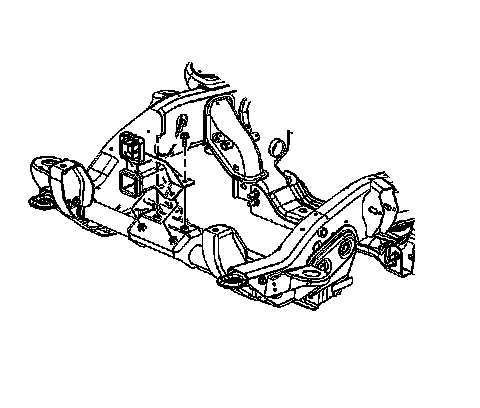

2. Remove the winch receiver bolts from the frame.
3. Remove the winch receiver from the vehicle.



Installation Procedure





1. Install the winch receiver to the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the receiver bolts to the frame.

Tighten the bolts to 85 N.m (63 lb ft).

3. Install the bumper. Refer to Front Bumper Replacement (Service and Repair) .
