Rear Fender Liner: Service and Repair

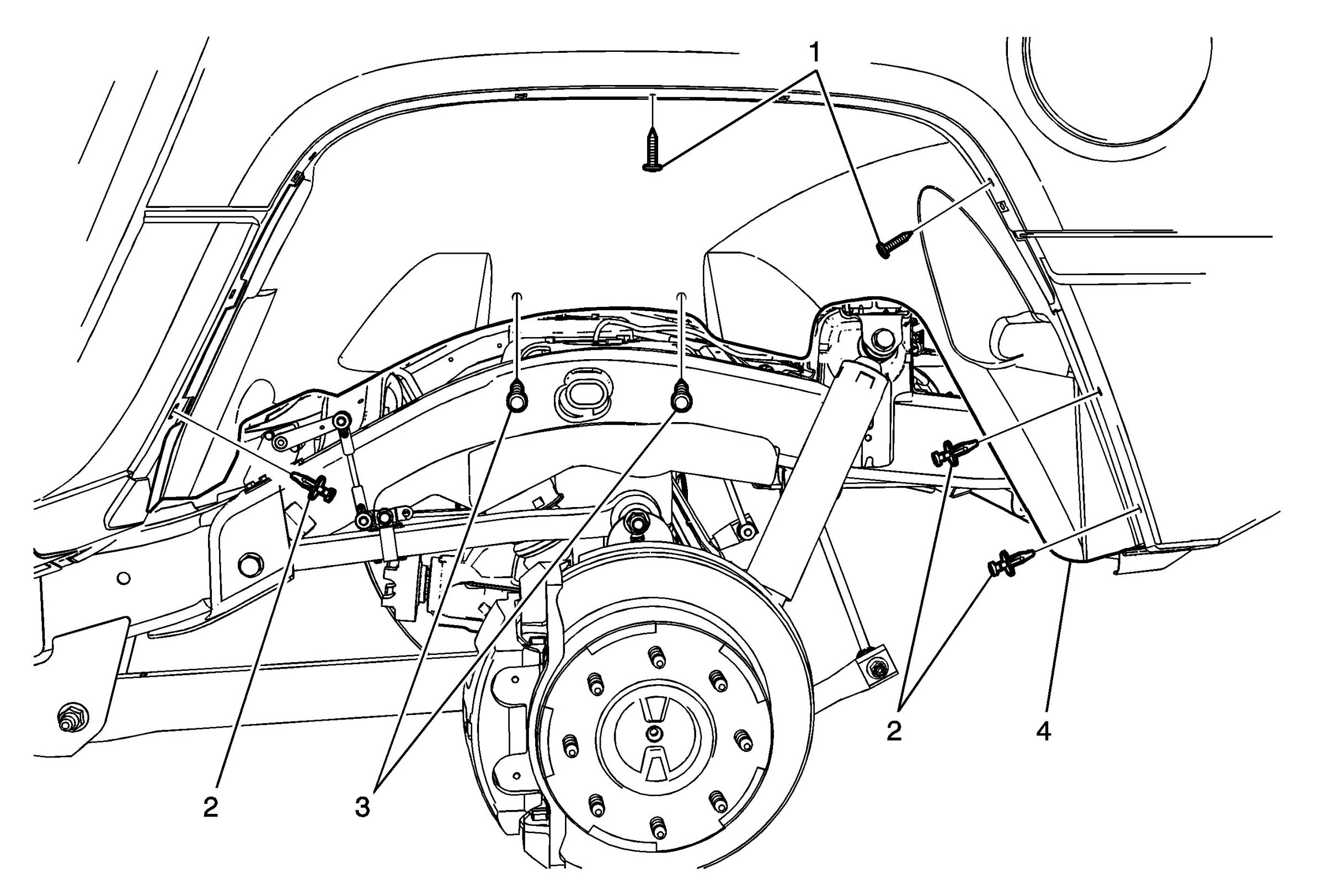

Rear Wheelhouse Panel Liner Replacement

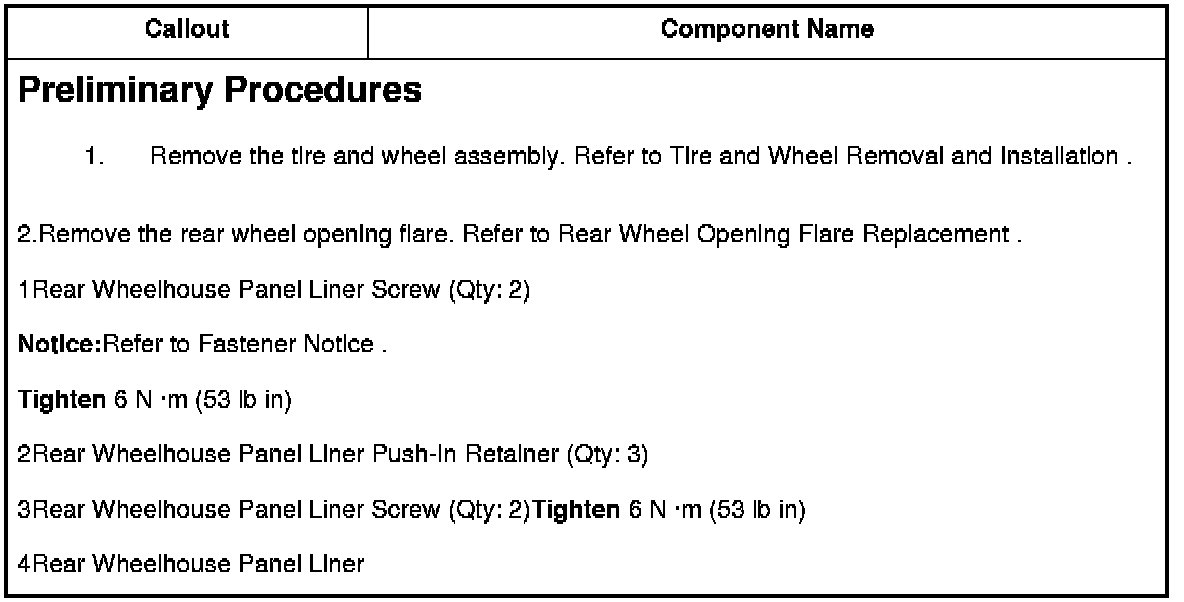

2.Remove the rear wheel opening flare. Refer to Rear Wheel Opening Flare Replacement .

1Rear Wheelhouse Panel Liner Screw (Qty: 2)
Notice:Refer to Fastener Notice .
Tighten 6 N �m (53 lb in)

2Rear Wheelhouse Panel Liner Push-In Retainer (Qty: 3)

3Rear Wheelhouse Panel Liner Screw (Qty: 2)Tighten 6 N �m (53 lb in)

4Rear Wheelhouse Panel Liner
