Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accessories and Optional Equipment
>>
Entertainment Systems
Entertainment Systems

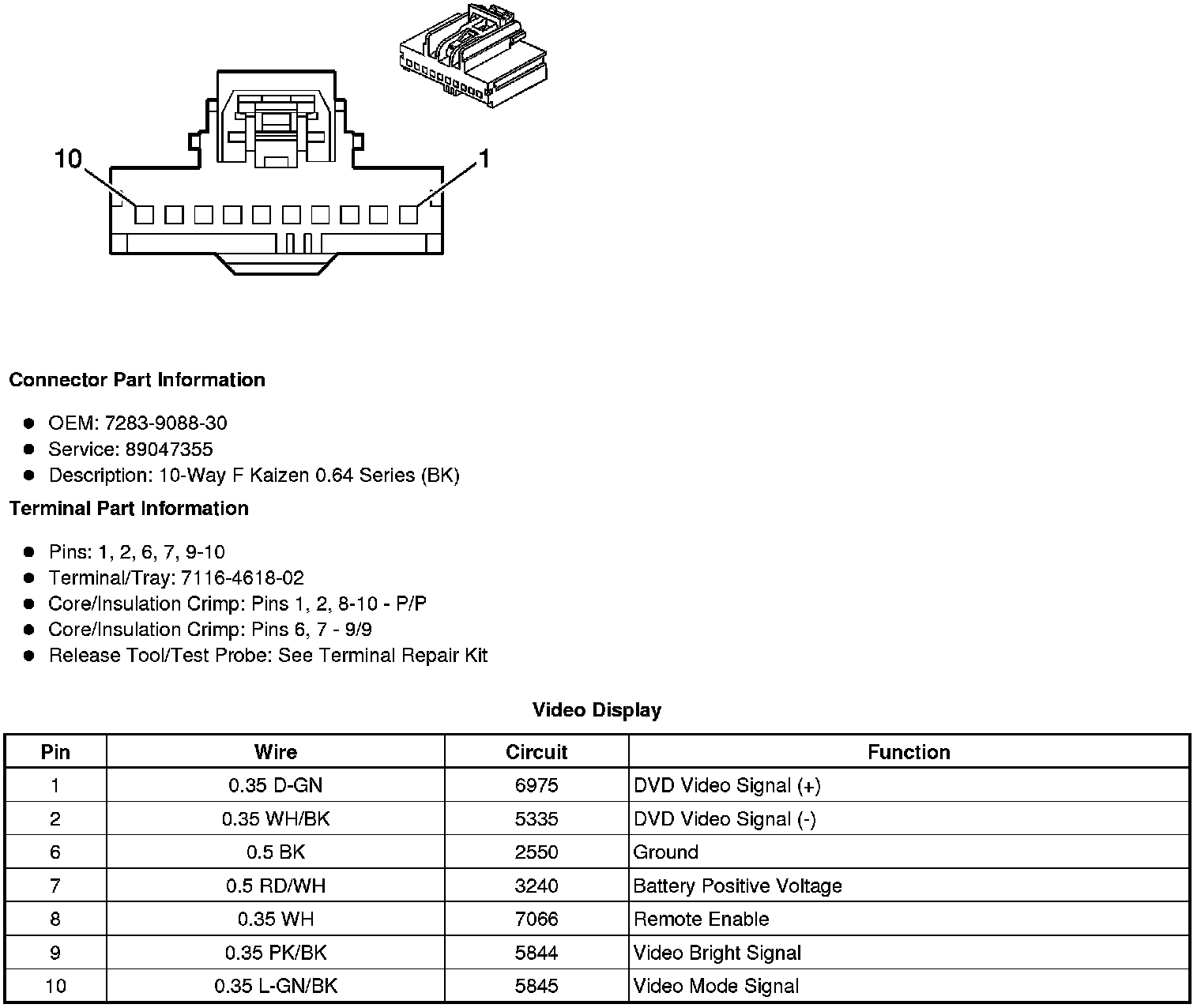

Component Connector End Views
Video Display
