Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connector End Views
>>
Engine Cooling and Exhaust
Engine Cooling and Exhaust
Component Connector End Views

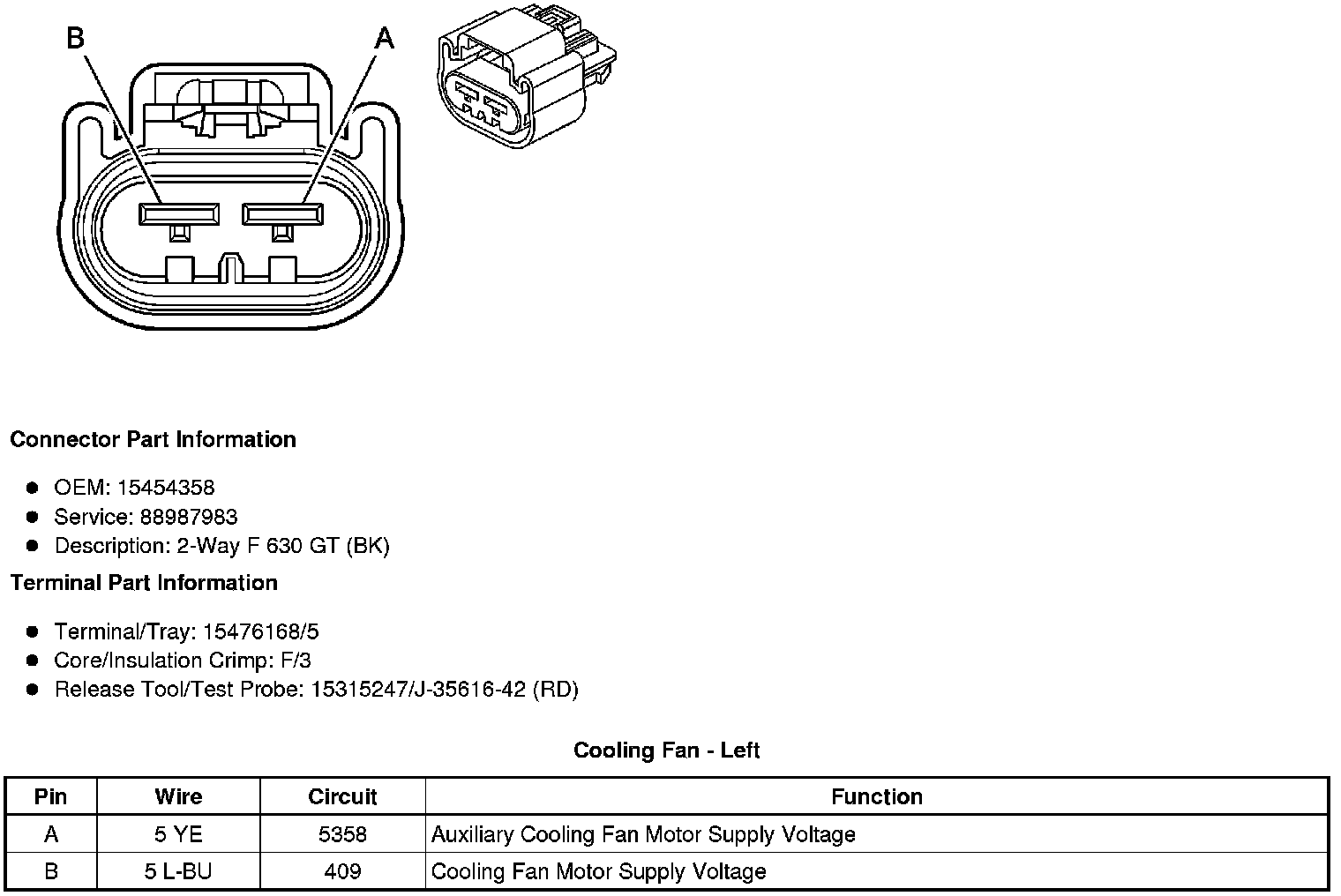

Cooling Fan - Left
Cooling Fan - Right
