Heating and Air Conditioning
Component Connector End Views
A/C Compressor Clutch

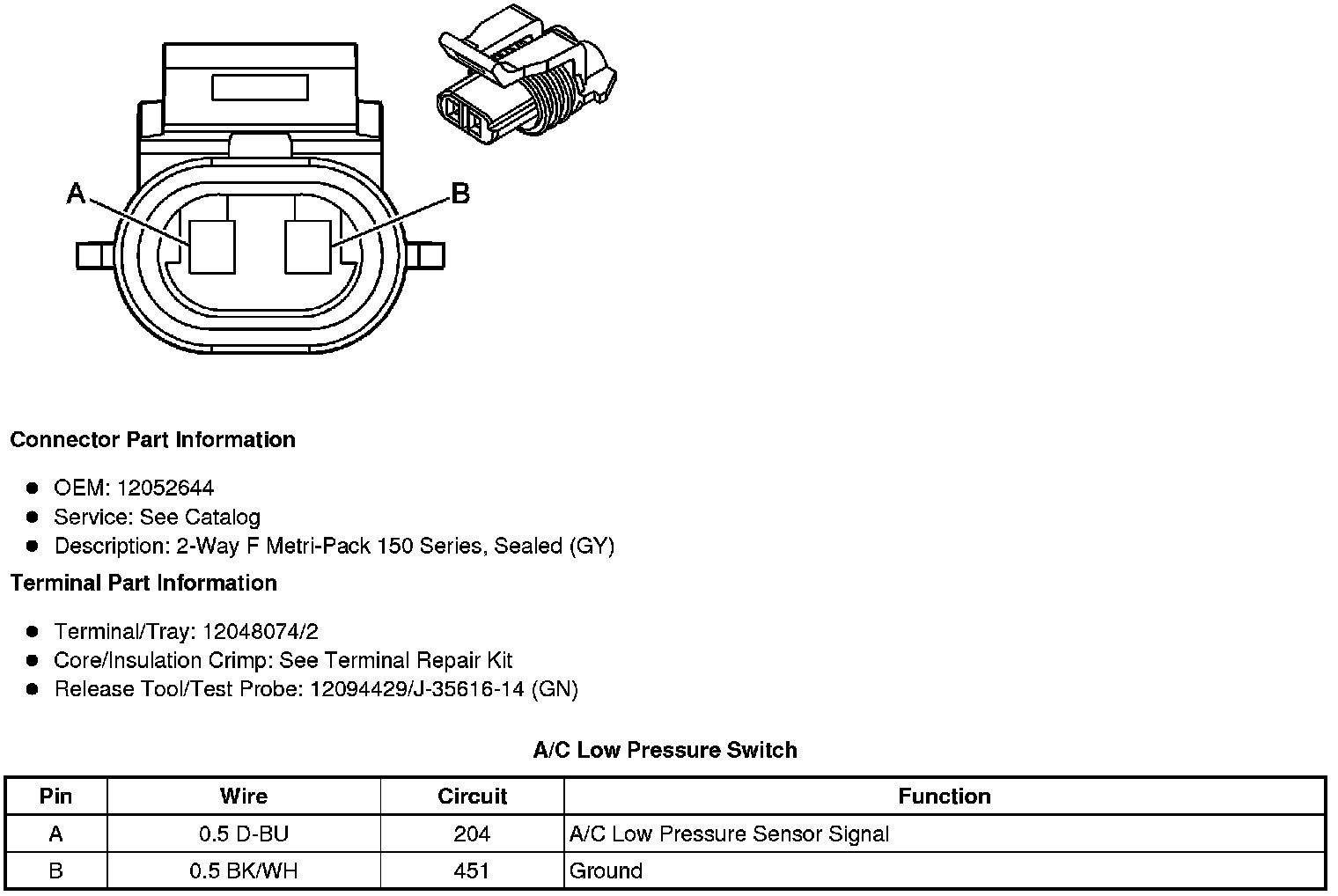

A/C Low Pressure Switch

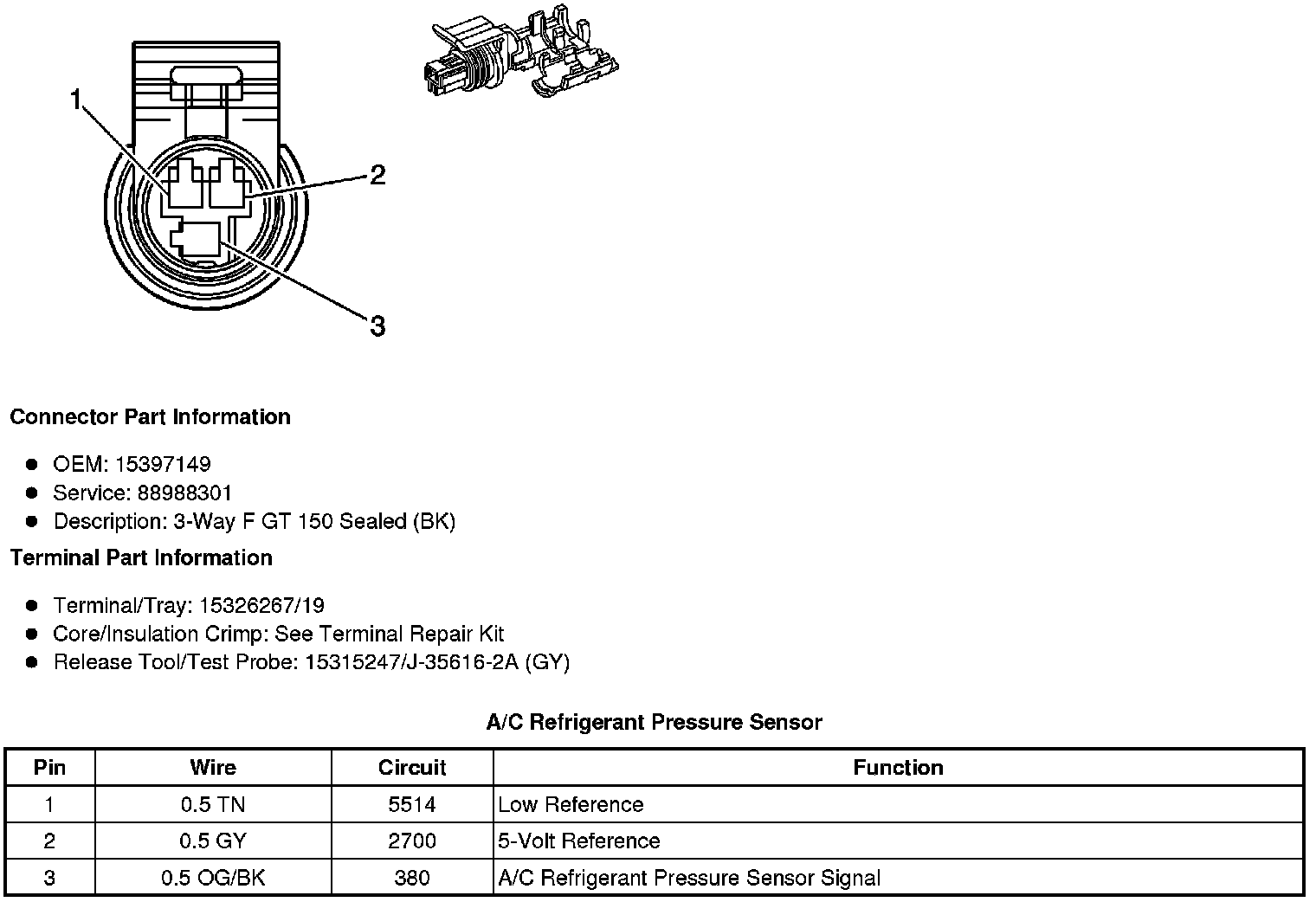

A/C Refrigerant Pressure Sensor
Air Temperature Sensor - Upper Left

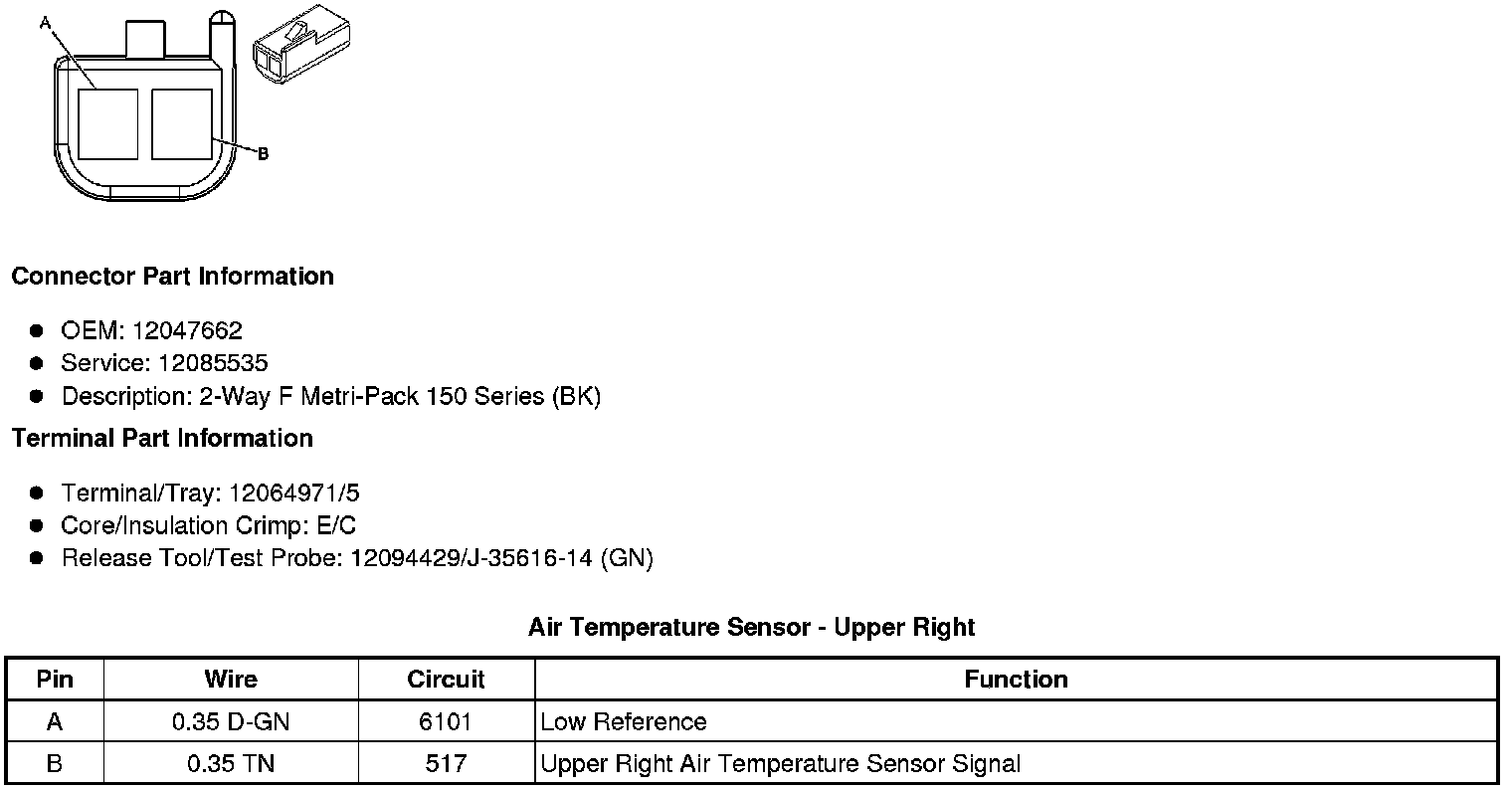

Air Temperature Sensor - Upper Right
Ambient Air Temperature Sensor - HVAC
HVAC Control Module X1
HVAC Control Module X2
HVAC Control Module X3
HVAC Control Module X4 (C69)
Inside Air Temperature Sensor - Front
