Control Module, Transfer Case
>>

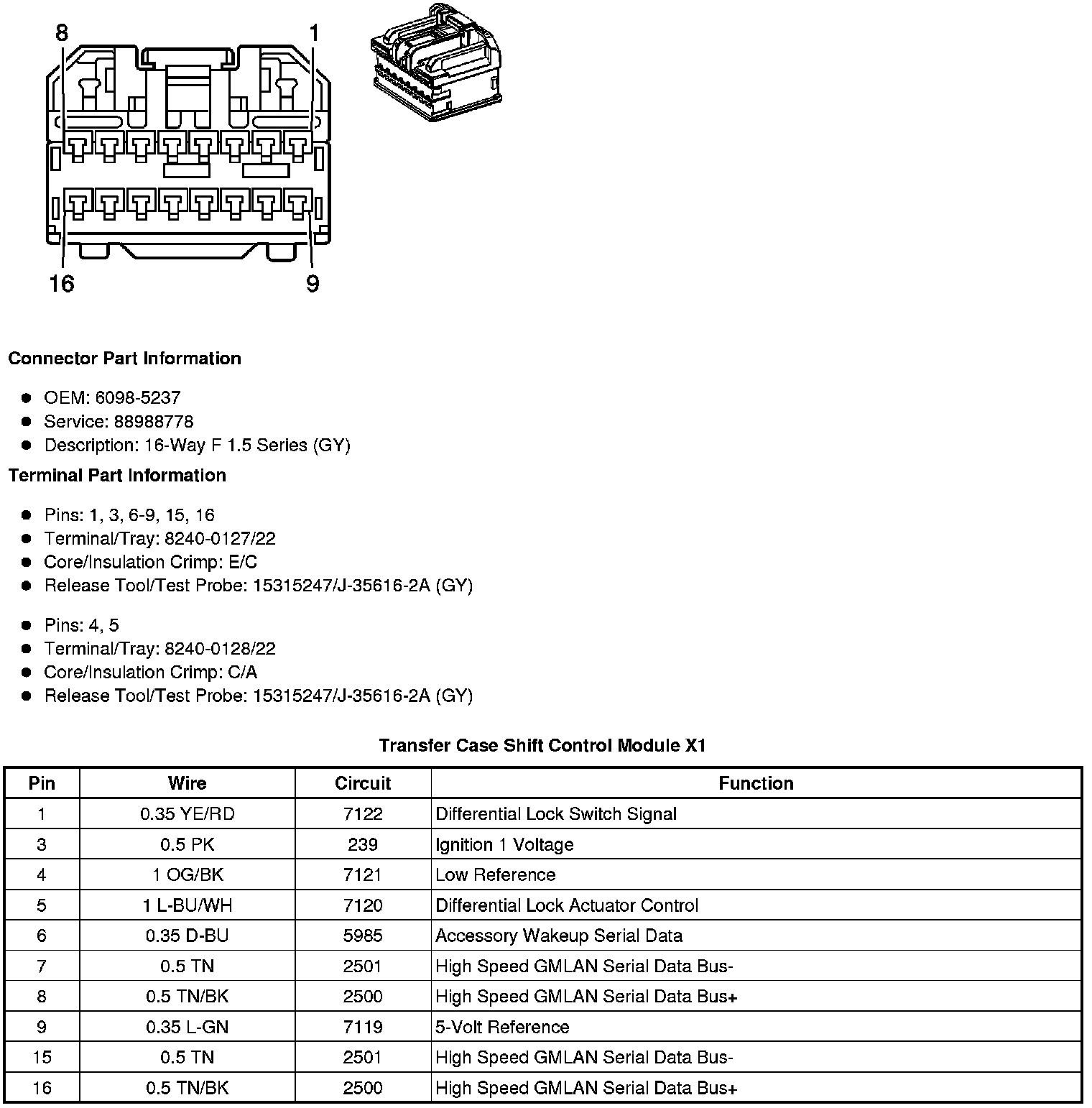

Transfer Case Shift Control Module X1
Transfer Case Shift Control Module X1
Component Connector End Views
Transfer Case Shift Control Module X1
