Control Module, Transfer Case
>>

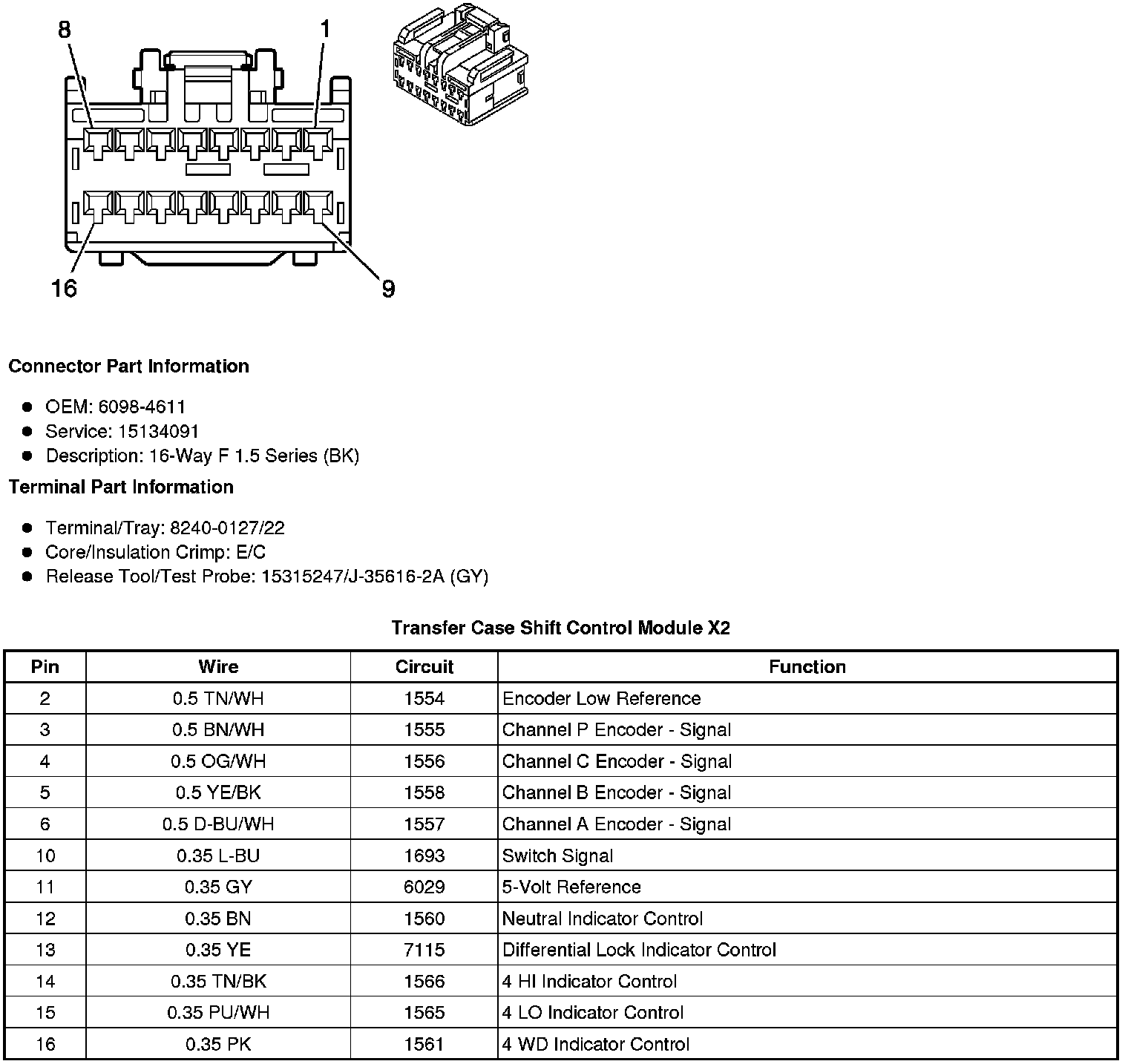

Transfer Case Shift Control Module X2
Transfer Case Shift Control Module X2
Component Connector End Views
Transfer Case Shift Control Module X2
