Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> Console Lamp Switch

Console Lamp Switch

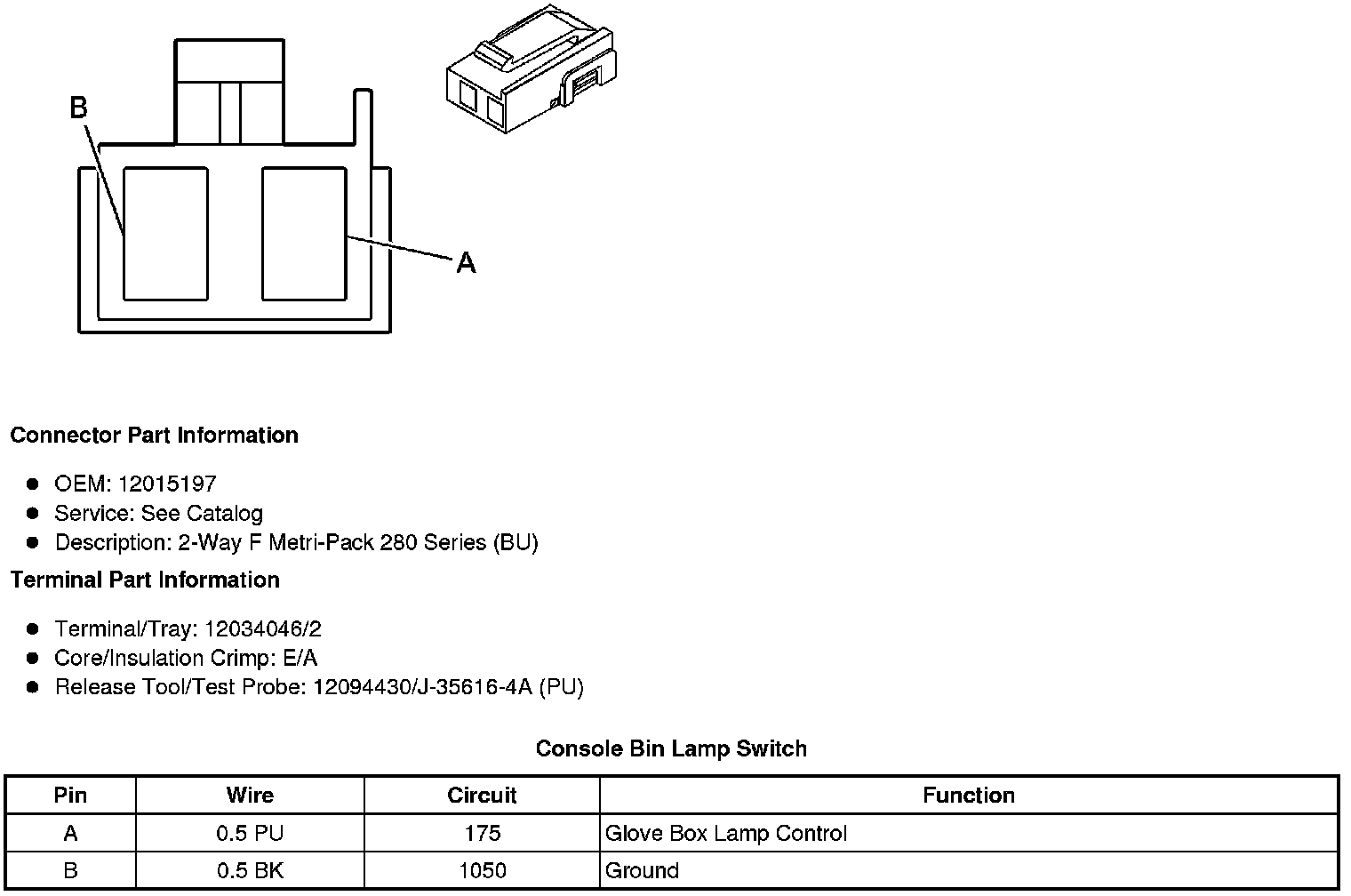

Component Connector End Views

Console Bin Lamp Switch
