Home >> Hummer >> 2008 >> H2 V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Pump >> System Diagram

System Diagram



Component Connector End Views

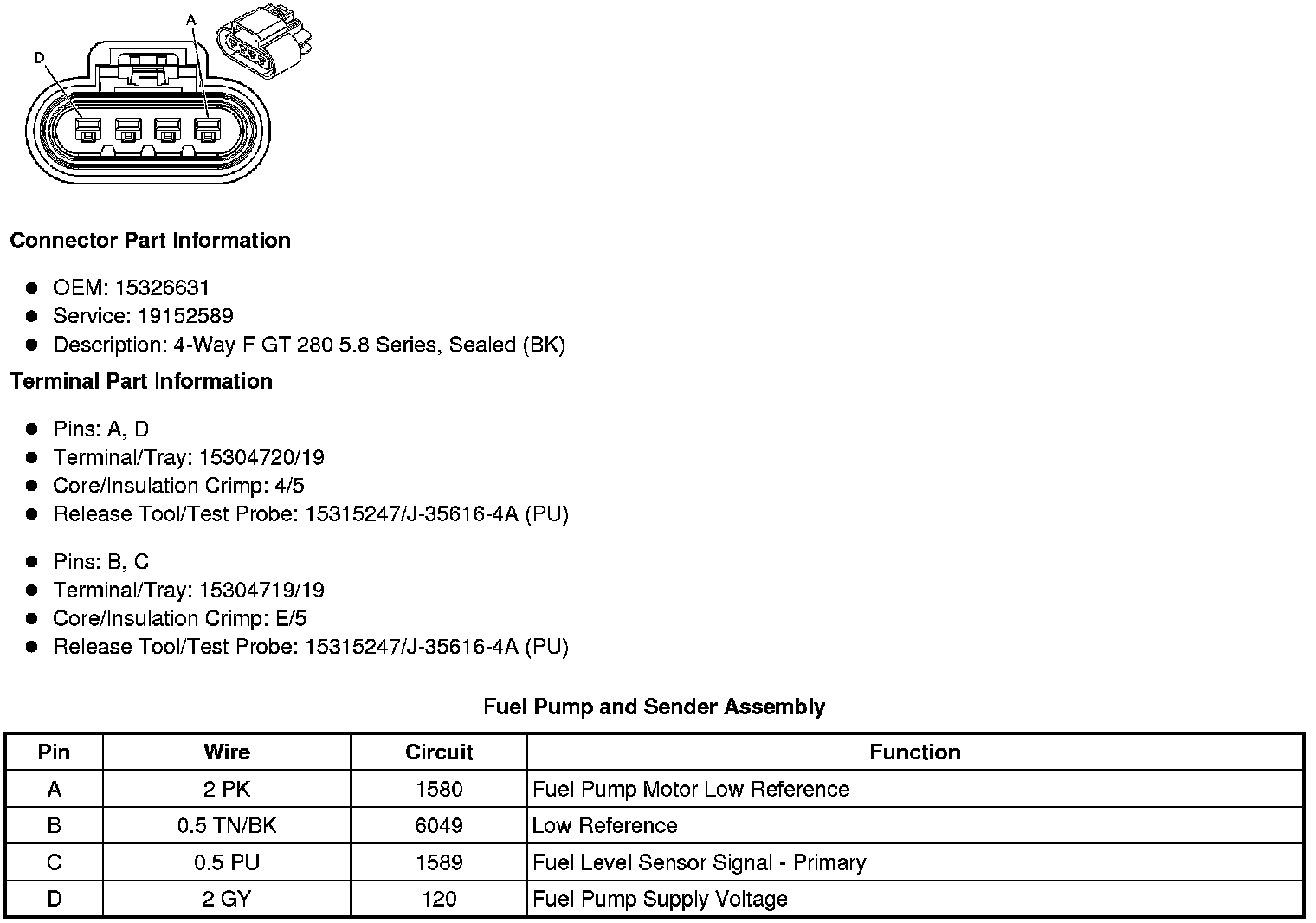

Fuel Pump and Sender Assembly
