Inflatable Restraint Side Impact Sensor (SIS) - Left Front
Inflatable Restraint Side Impact Sensor (SIS) - Left Front

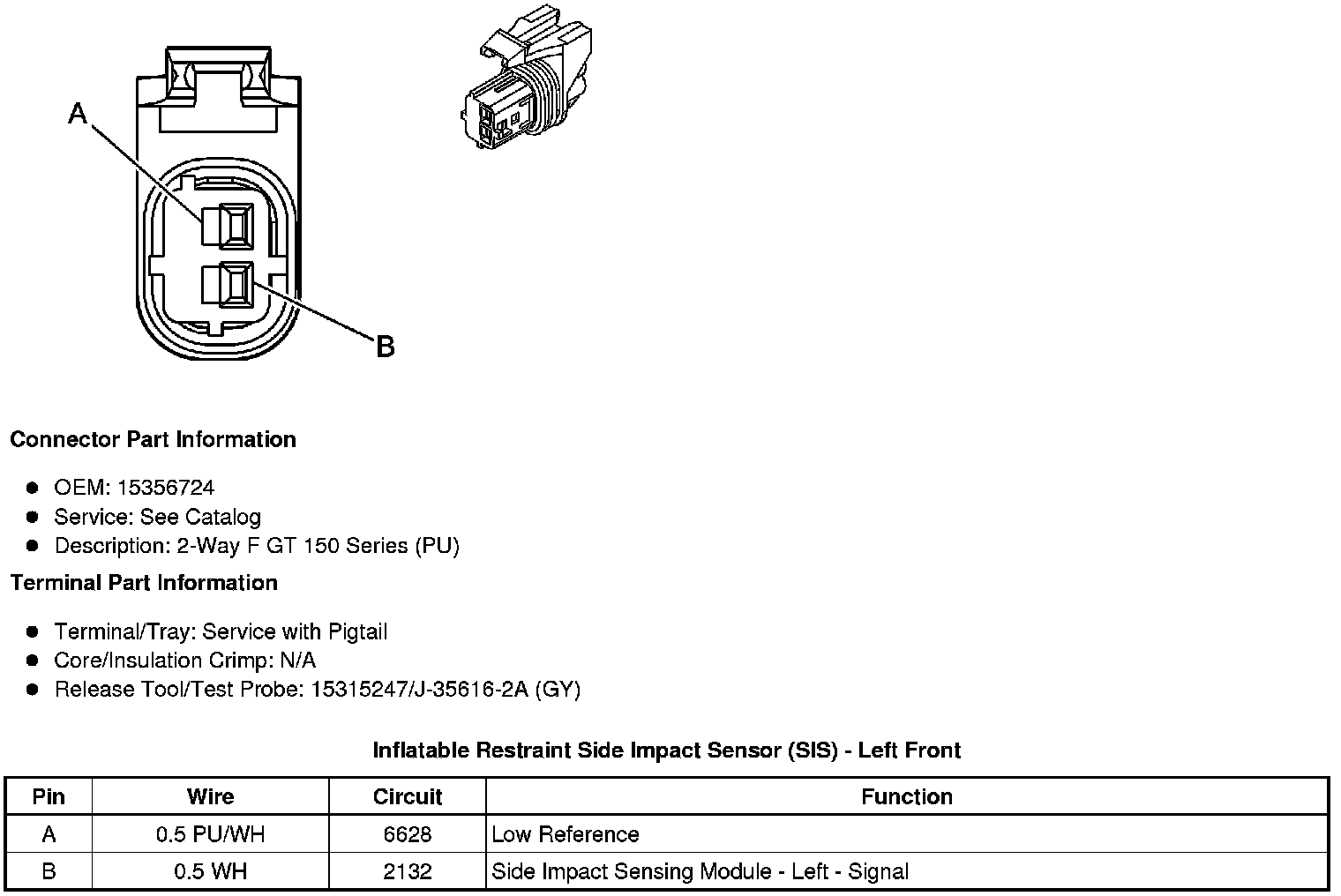

Component Connector End Views
Inflatable Restraint Side Impact Sensor (SIS) - Left Front
