Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X295
X295

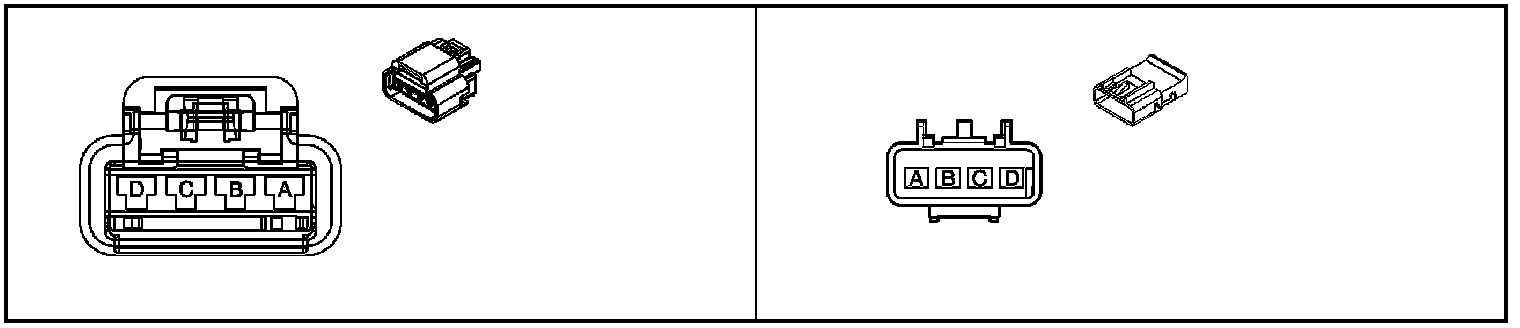

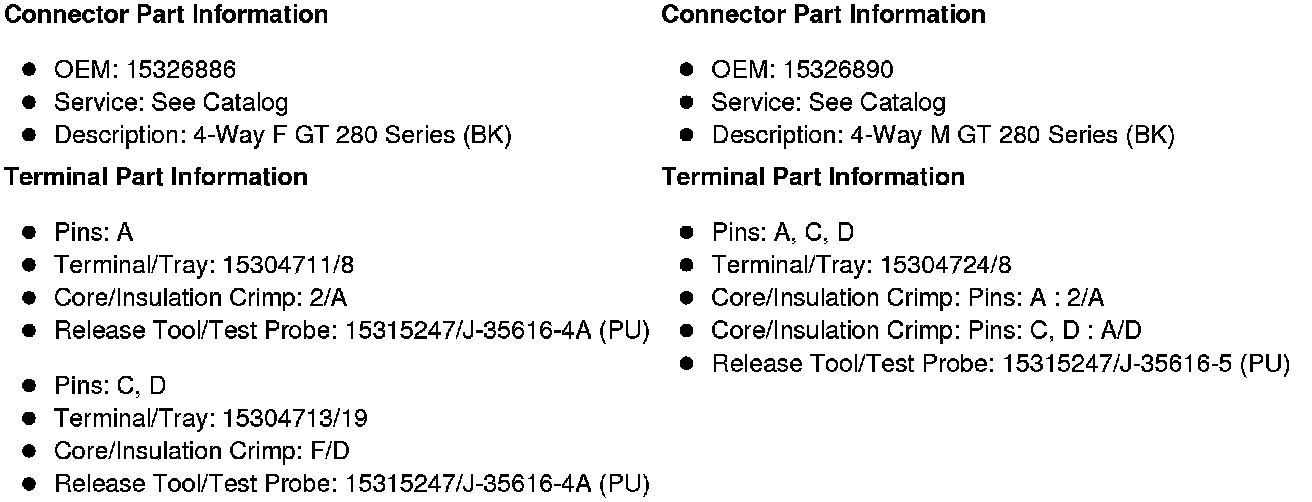

Inline Harness Connector End Views

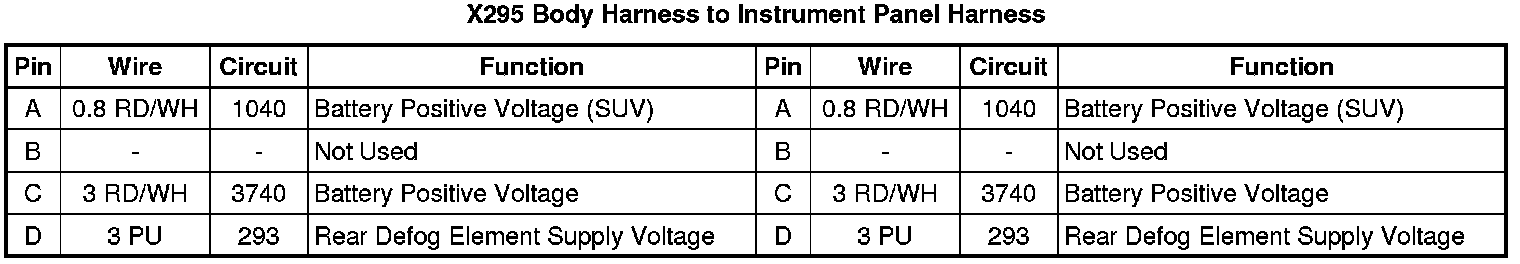

X295 Body Harness to Instrument Panel Harness
