X452
X452

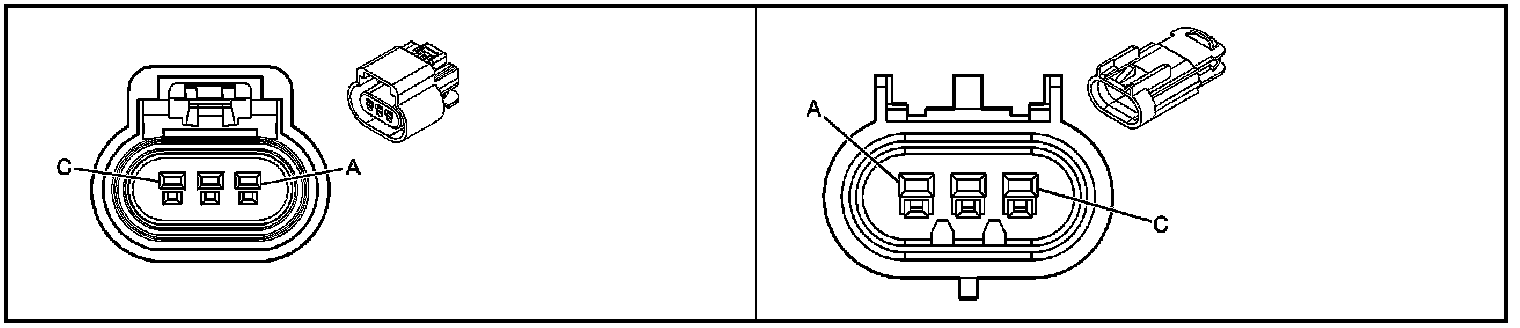

Inline Harness Connector End Views

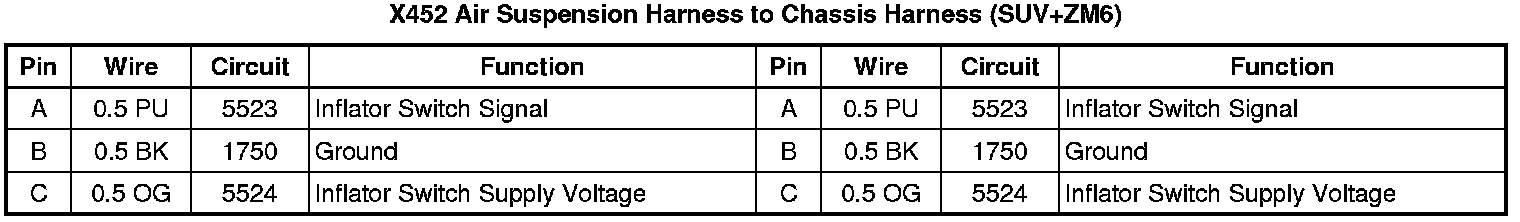

X452 Air Suspension Harness to Chassis Harness (SUV+ZM6)
