Power Window Switch
>>
Midgate Window Switch (SUT)
Midgate Window Switch (SUT)

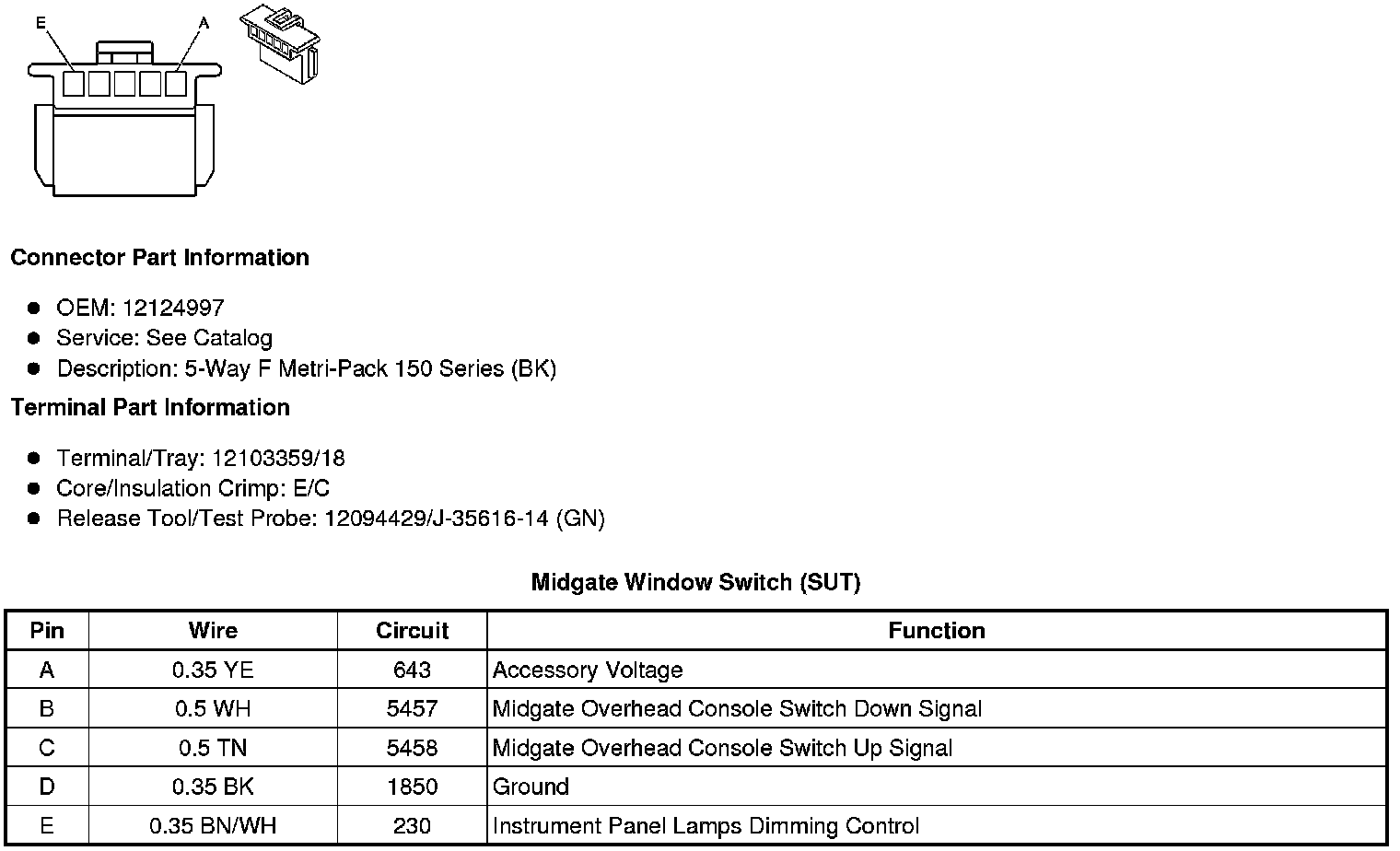

Component Connector End Views
Midgate Window Switch (SUT)
