Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Mode Switch
Suspension Mode Switch

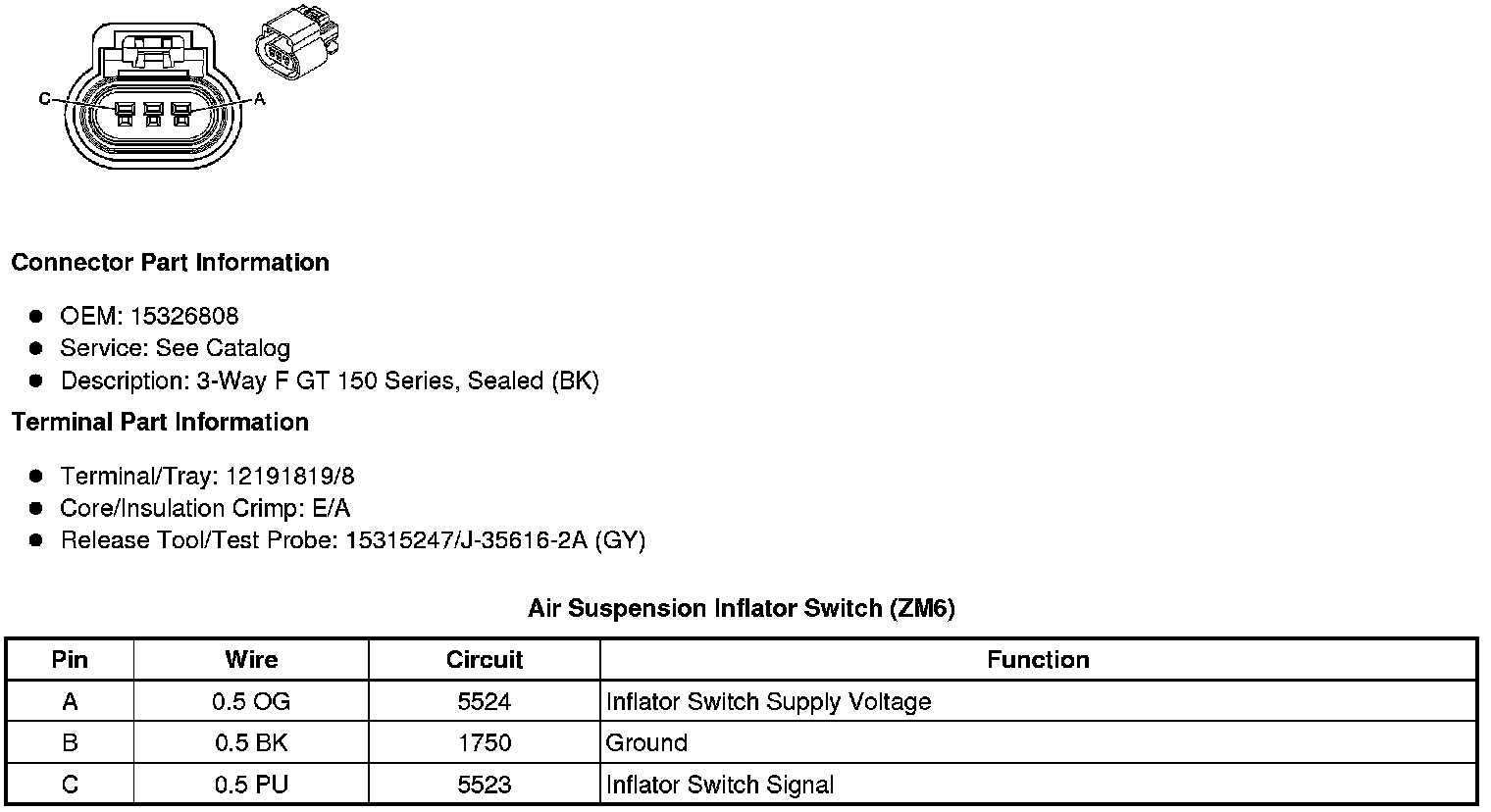

Component Connector End Views
Air Suspension Inflator Switch (ZM6)
