Door Lock/Indicator Schematics
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

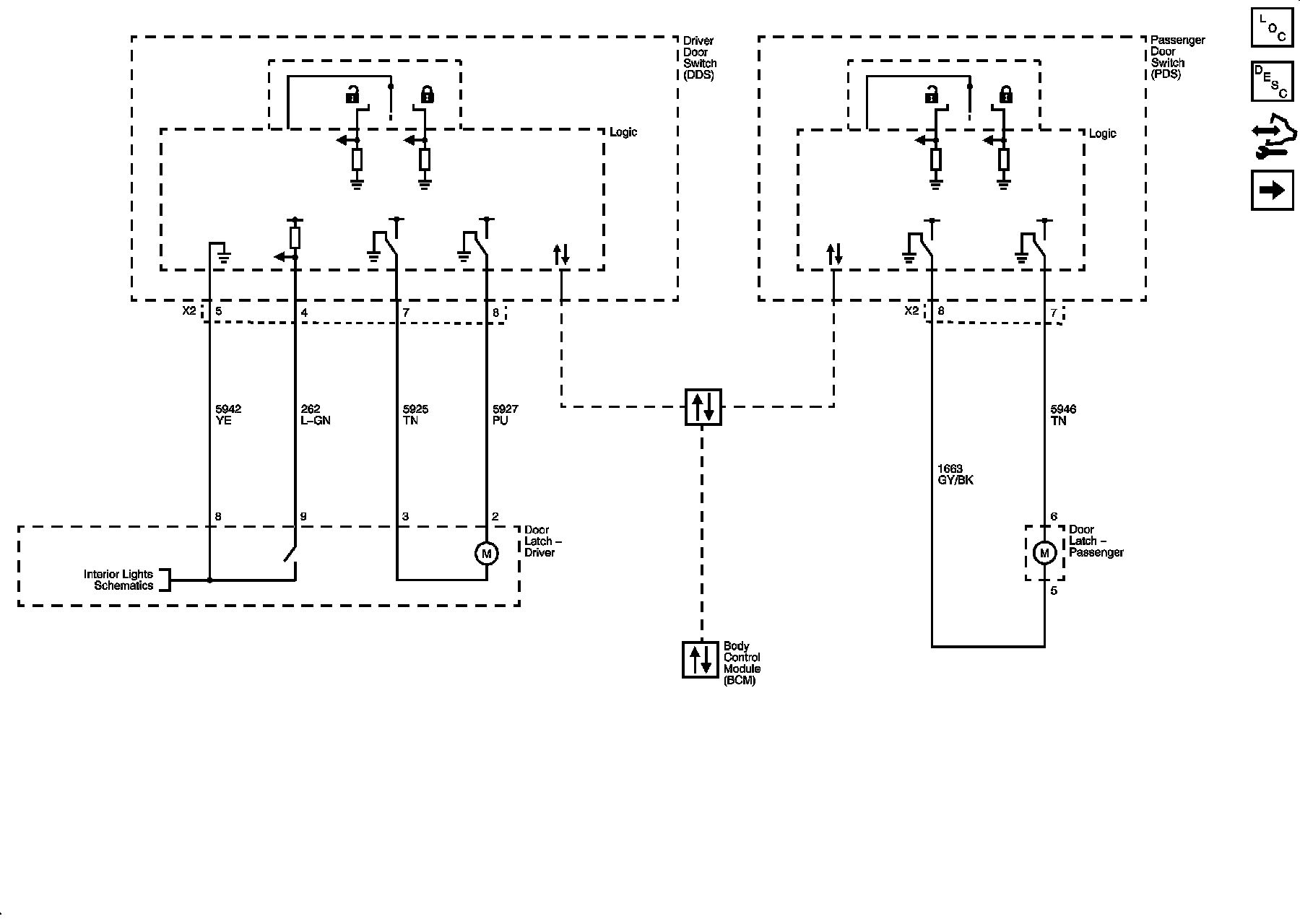

Door Lock Controls and Front Door Locks

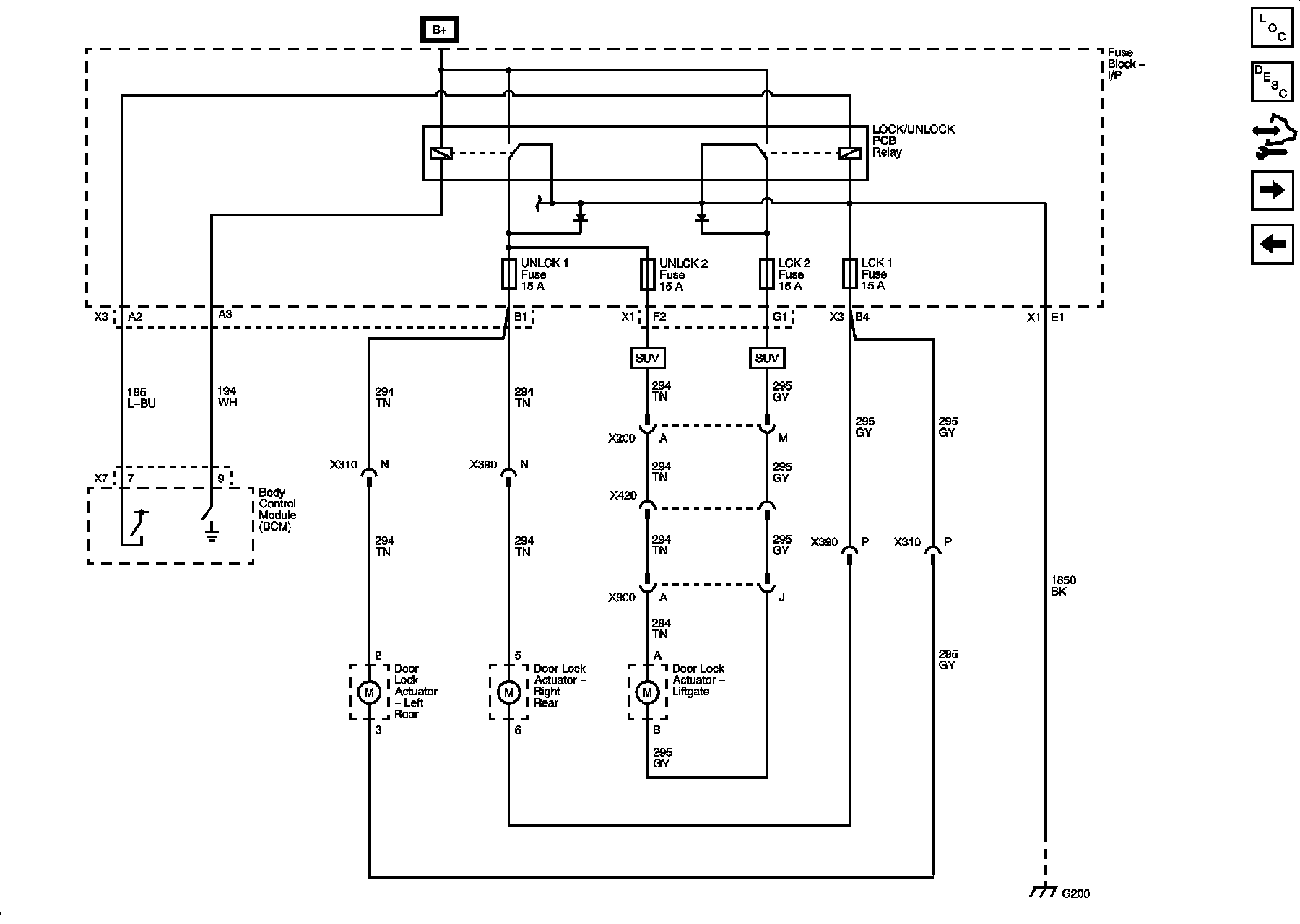

Rear Door and Liftgate Locks
