Hummer
>>
2008
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Headliner Views
Headliner Views
Harness Routing Views

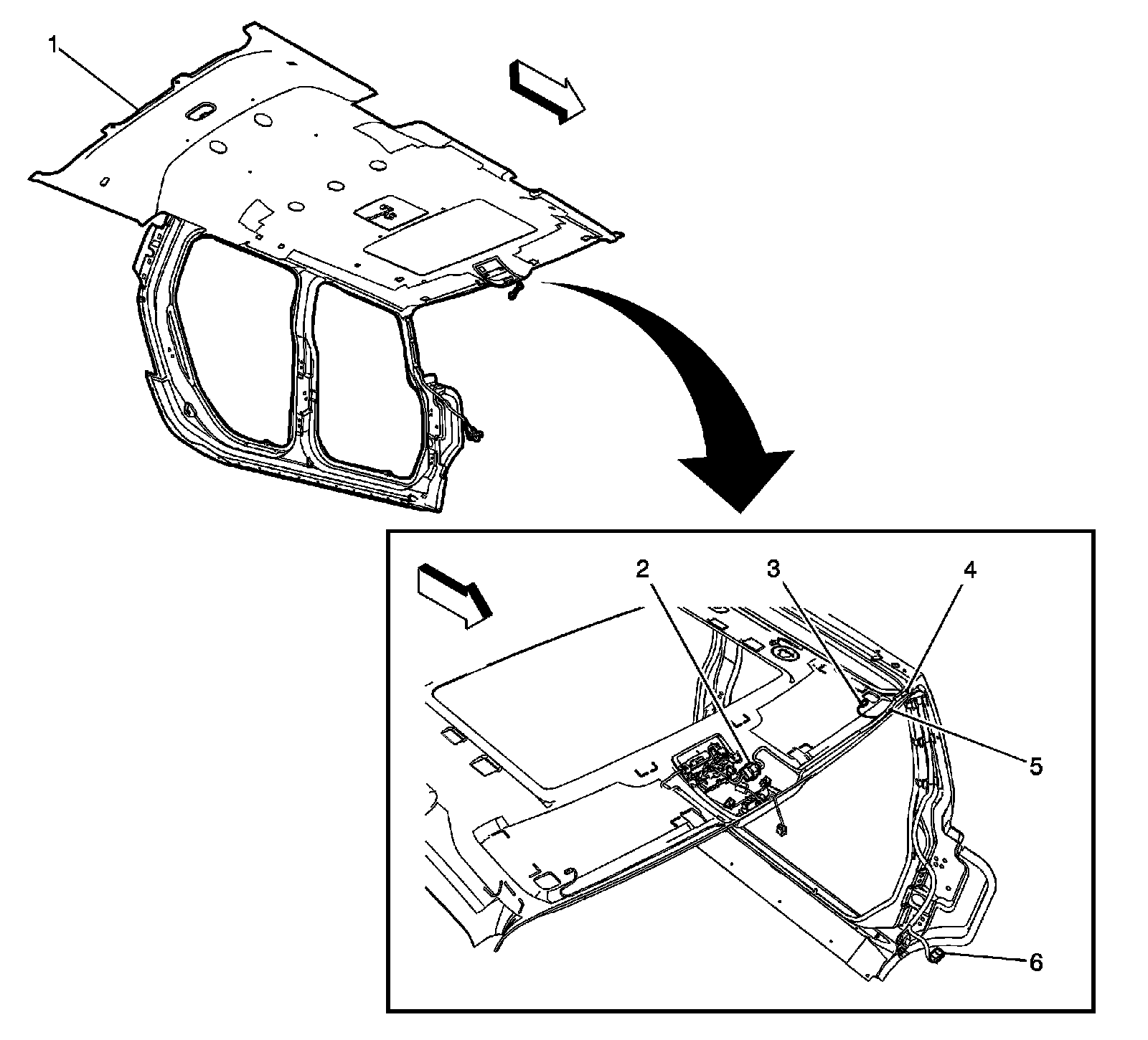

Headliner/Rear Dome Lamp Harness
1
- X406 (SUV)
2
- X304
3
- X302
4
- J301
5
- J300
6
- X204
