Power Distribution Schematic 10
Power Distribution Schematic 10
Power Distribution Schematics

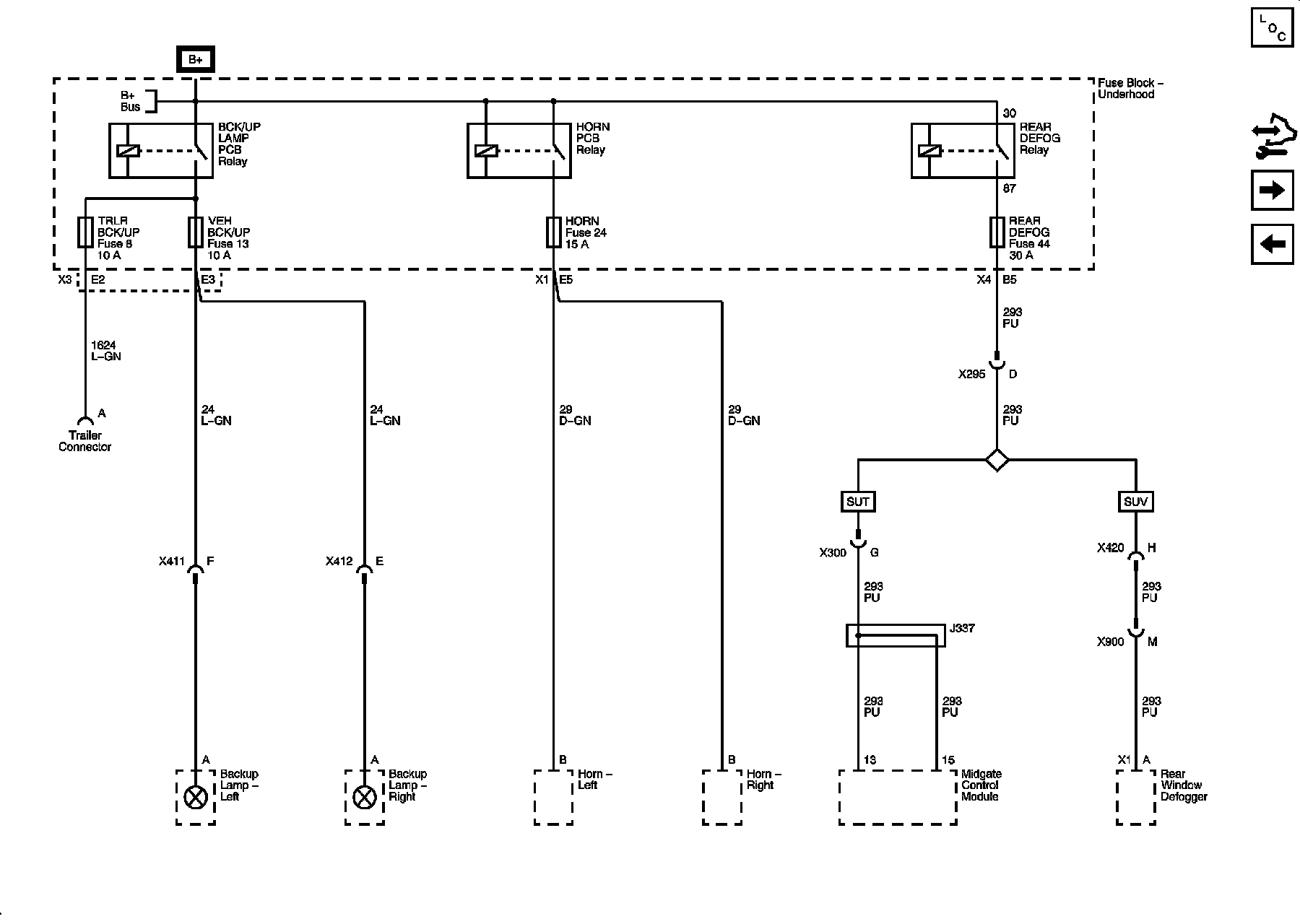

VEH BCK/UP, HORN and REAR DEFOG Fuses
