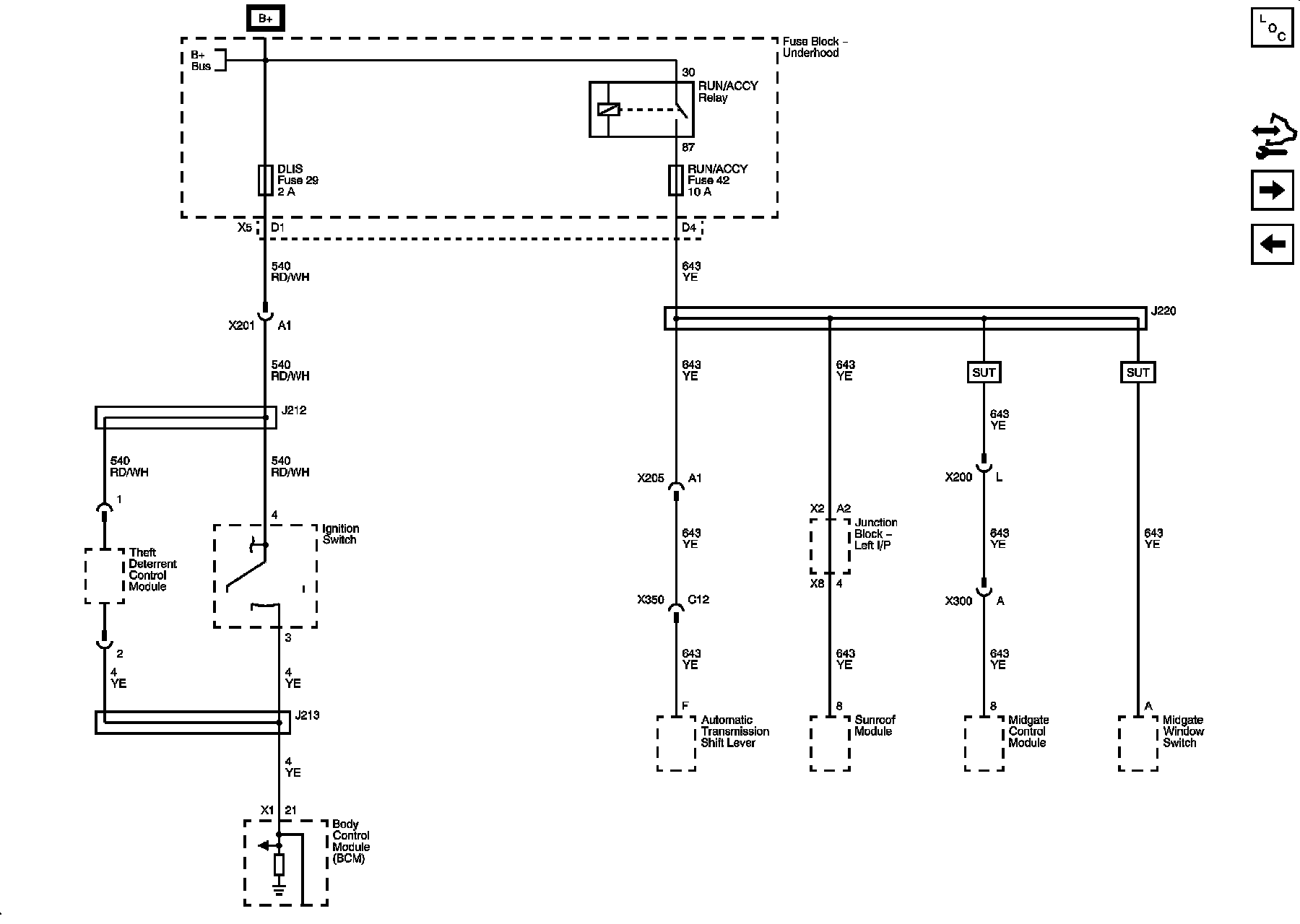

Power Distribution Schematic 11
Power Distribution Schematic 11
Power Distribution Schematics
DLIS Fuse and RUN/ACCY Relay
