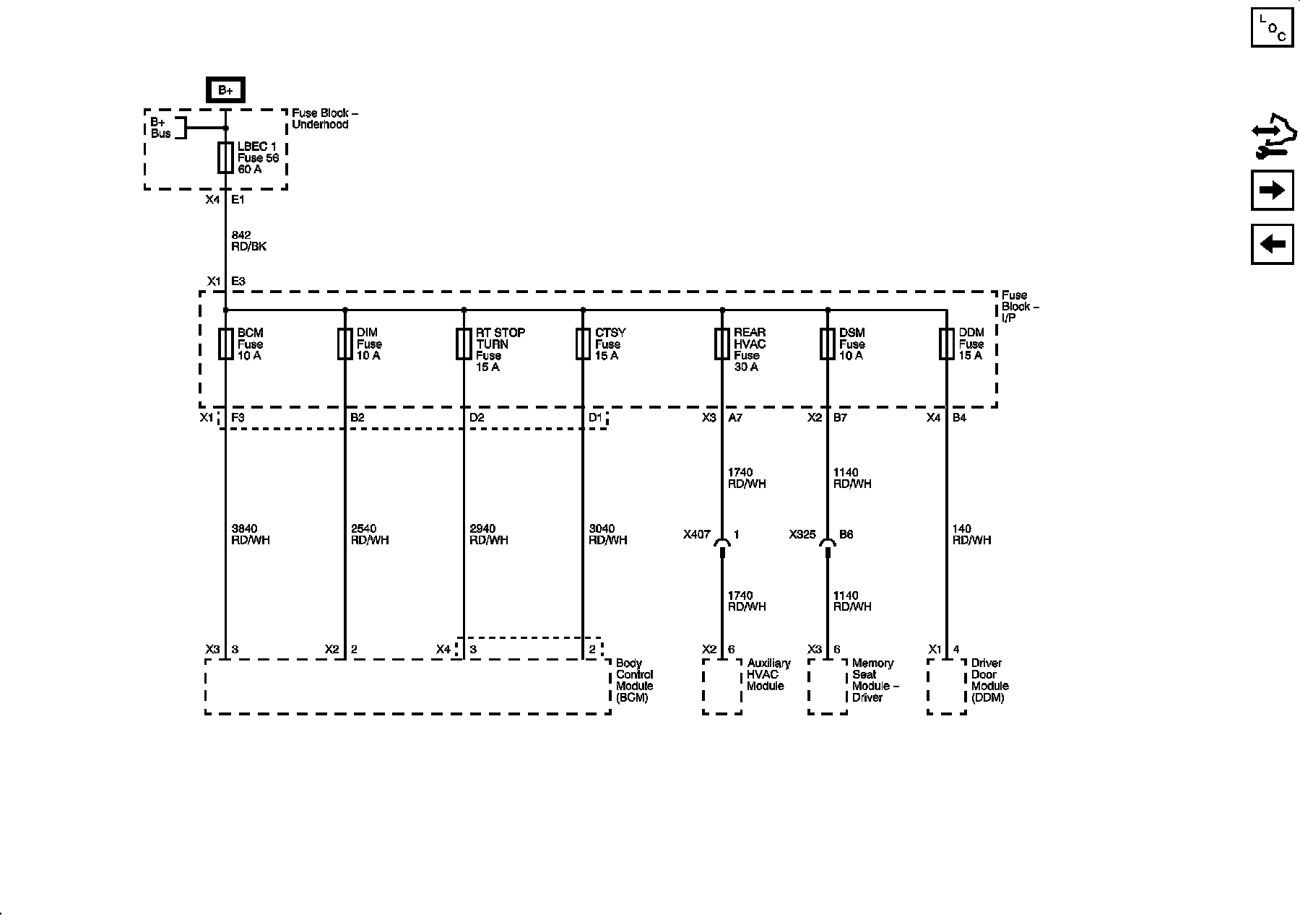

Power Distribution Schematic 3



Power Distribution Schematics

LBEC, BCM, DIM, RT STOP TURN, CTSY, REAR HVAC, DSM, DDM Fuses
