Power Distribution Schematic 6
Power Distribution Schematic 6
Power Distribution Schematics

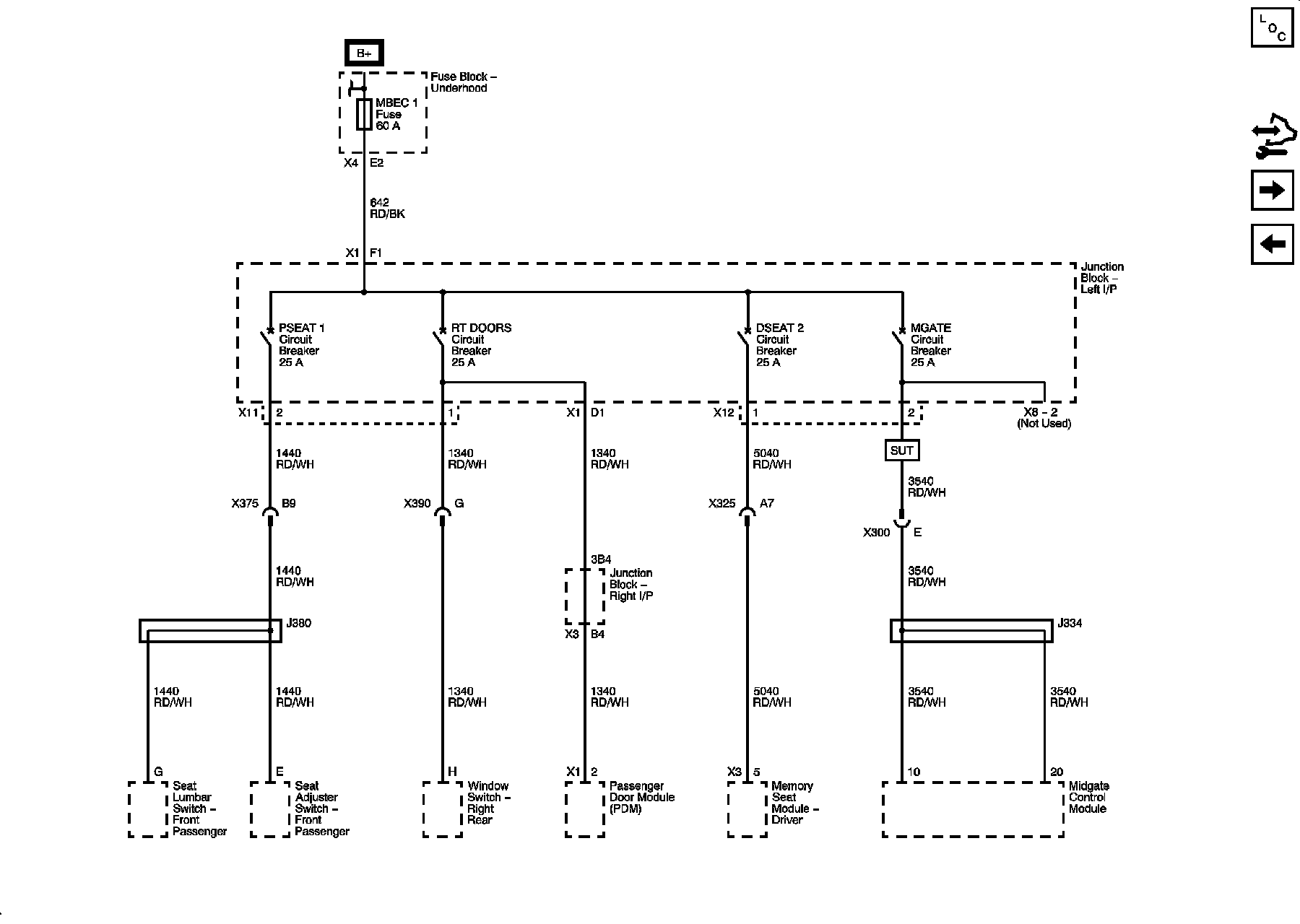

MBEC 1 Fuse and P SEAT 1, RT DOORS, D SEAT 2 and MGATE Circuit Breakers
