Power Distribution Schematic 8
Power Distribution Schematic 8
Power Distribution Schematics

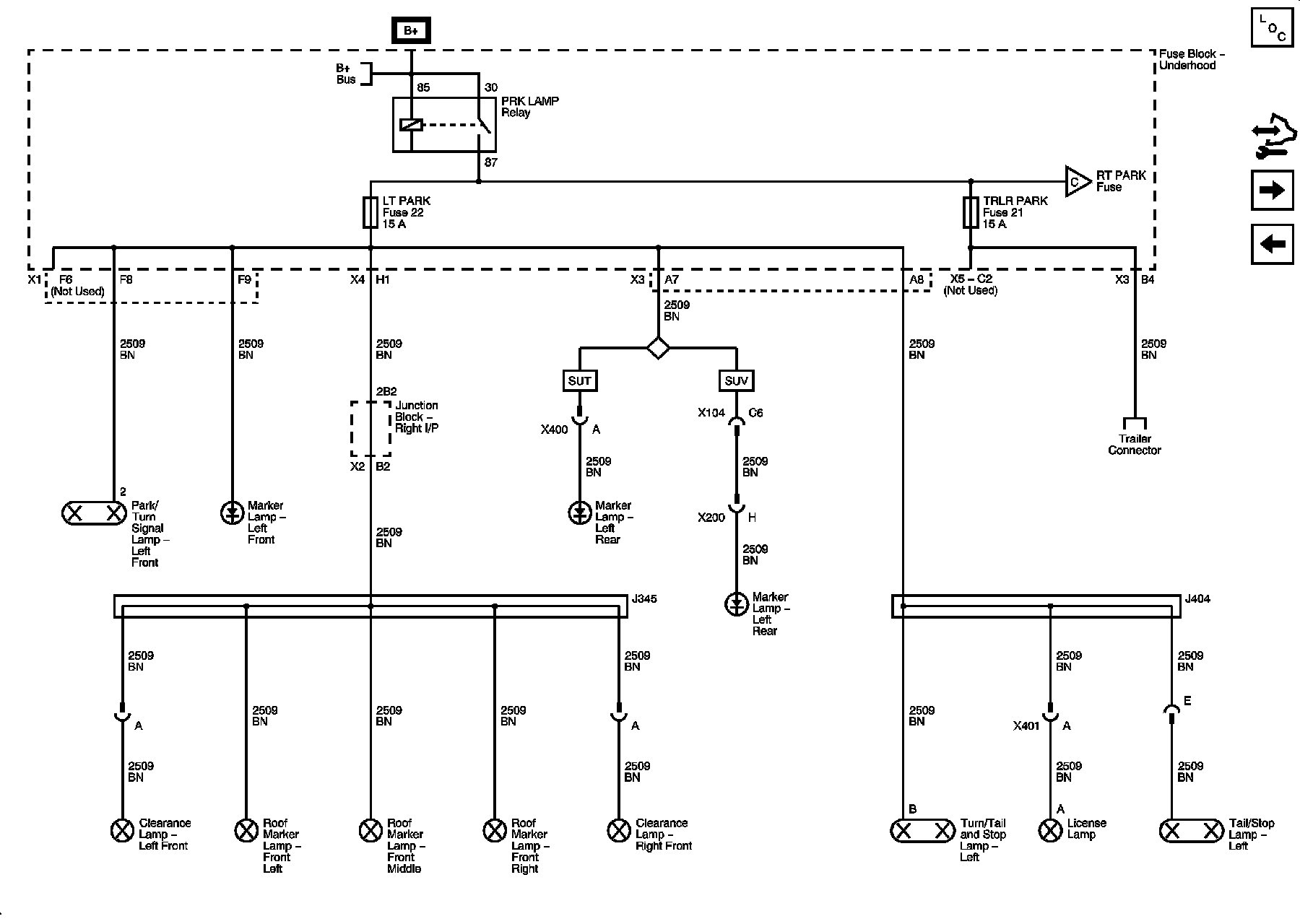

PRK LAMP Relay, LT PARK and TRLR PARK Fuses
