Engine Controls Schematic 6



Engine Controls Schematics

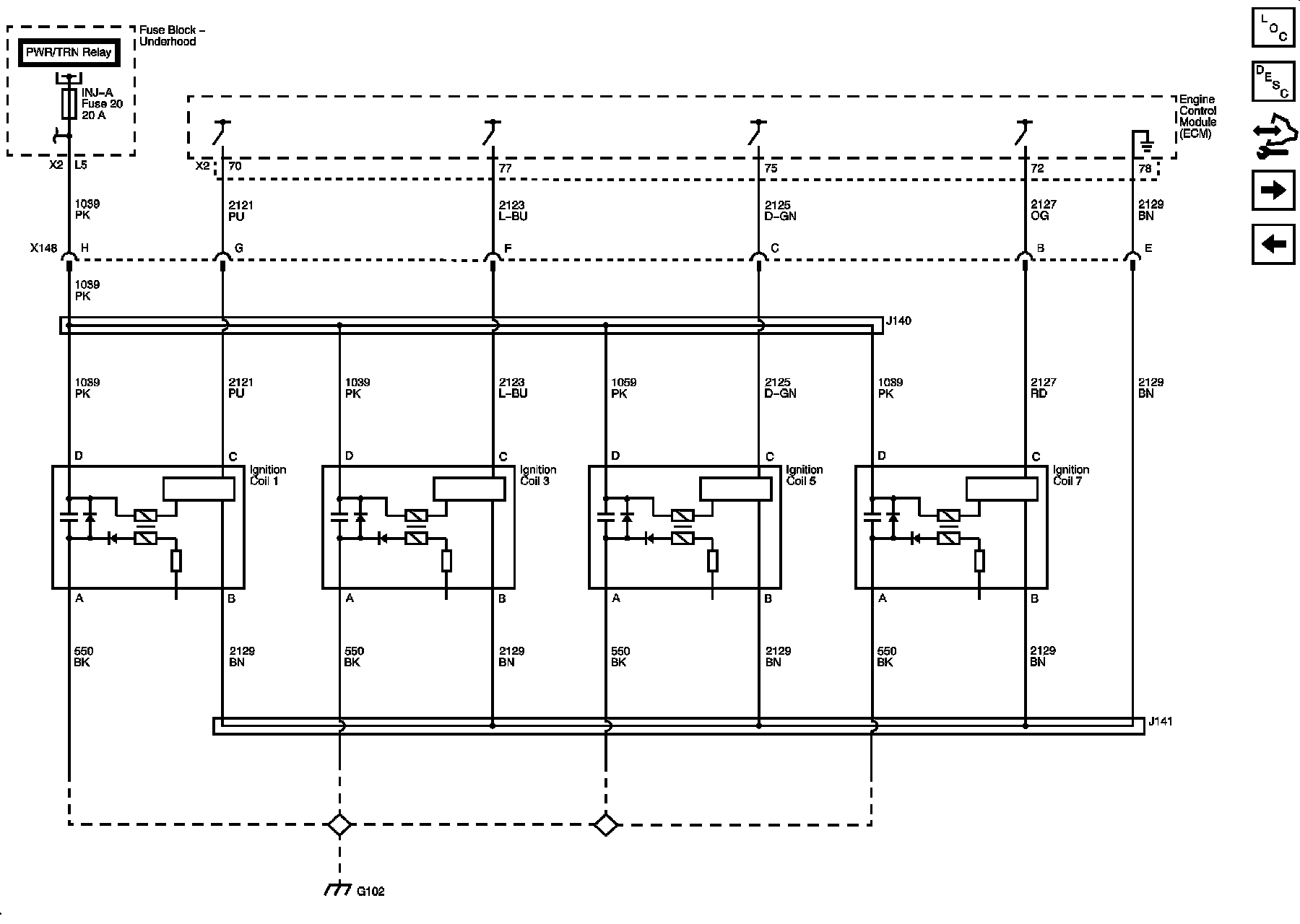

Ignition Controls - Ignition System Coils 1, 3, 5 and 7
