Vehicle Speed Sensor: Locations

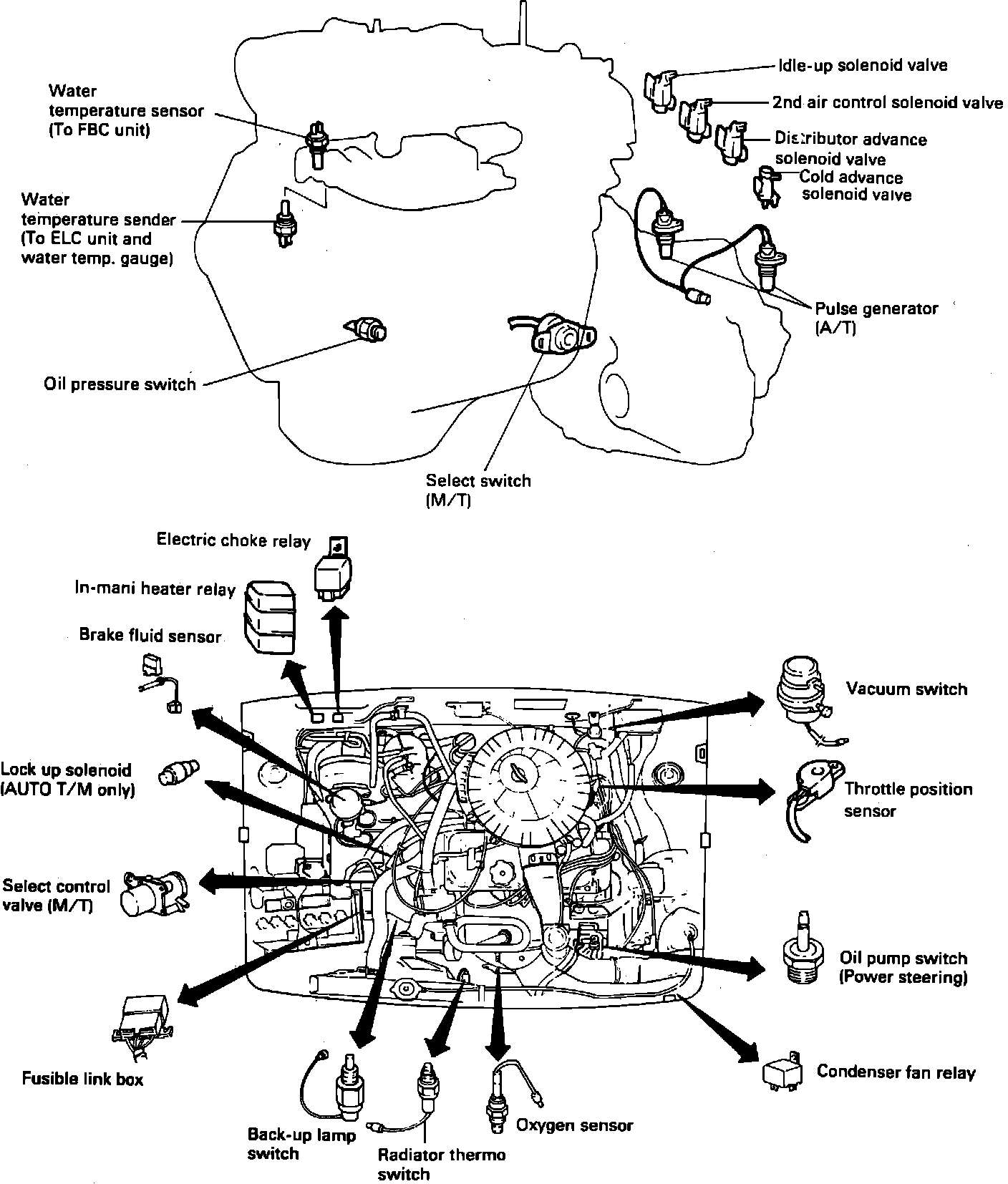

Engine Compartment Switches and Relays (FBC):




RH Side Of Transaxle
