Cruise Control Servo Cable: Adjustments

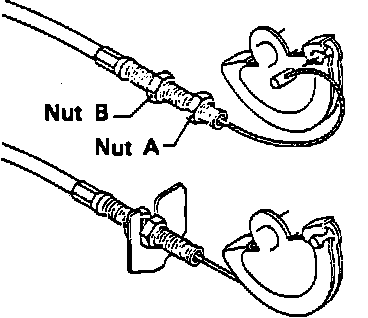

Fig. 1 Actuator Cable To Pulley Attachment:

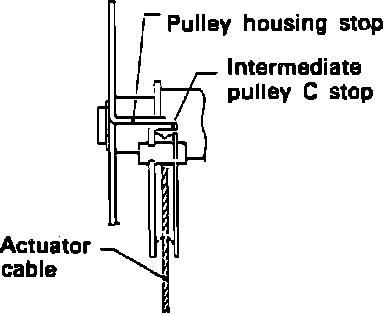

Fig. 2 Actuator Cable Stop Location:

1. With nut ``A'' at end of cable, assemble actuator cable to intermediate pulley ``C,'' Fig. 1.
2. Pull cable tight in bracket with pulley against stop, then tighten nut ``B'' against bracket.
3. Back off nut ``B'' 1 1/2 turn, then tighten nut ``A,'' Fig. 2.
4. Ensure cable has approximately 1/16 inch, of slack with pulley against stop.
