Wheel Alignment - Corrected Specifications

90hyundai03
Group CHASSIS


Number 009


Date DECEMBER, 1990


Model ALL

WHEEL ALIGNMENT SPECIFICATIONS



The rear wheel toe specification for 1990 and 1991 MY Excel and Scoupe has been corrected.

WAS: 0 + O.1 mm
- 0.05 mm

NEW: 0 + 6 mm
- 3 mm

Full wheel alignment specifications are given below. These specifications supersede all previous specifications. Please make these changes in your Shop Manuals and Service Data Books.

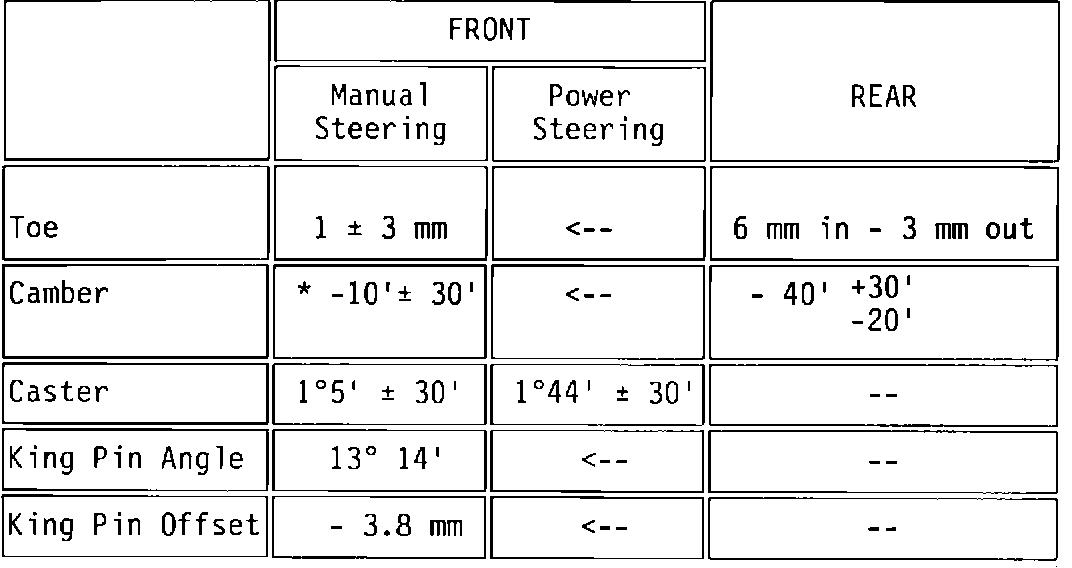

1) EXCEL (For 90 Model Year and Later)

1990 and 1991 Excel Shop Manual - Page 55-2 and 55-6. 1990 Excel Service Data Book - Page 55-1.

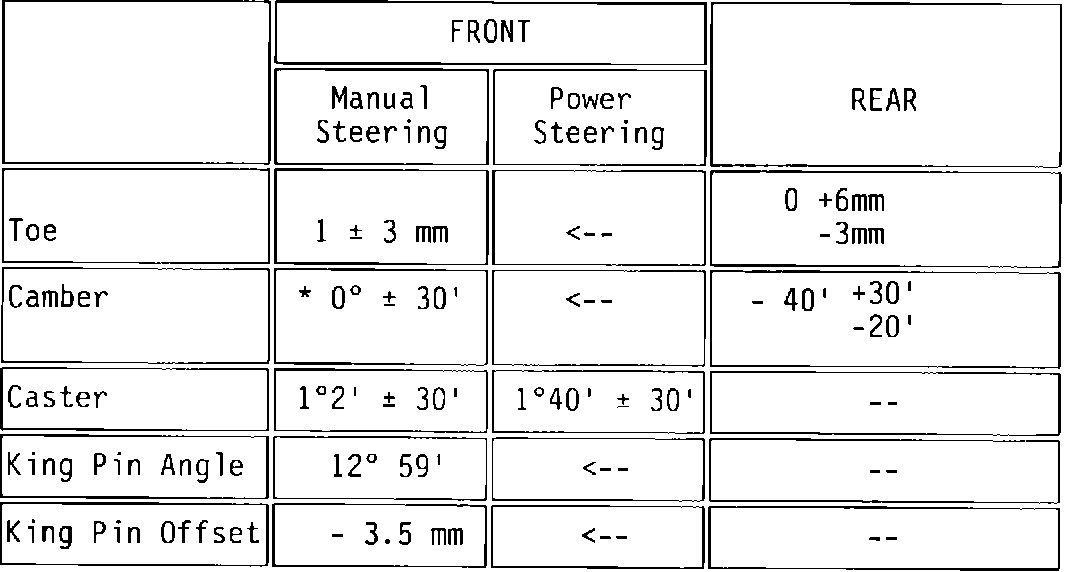

2) SCOUPE

1991 Scoupe Shop Manual - Page 55-2 and 55-6

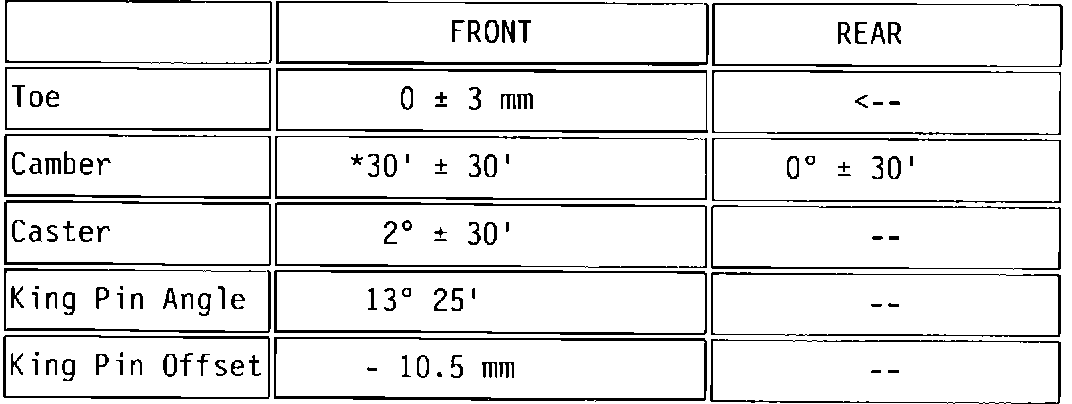

3) SONATA & V6 (1989 Model Year and Later)
*: Camber angle difference between LH and RH wheel should not be more than 30'.

NOTE: Front wheel camber and caster are not adjustable. Rear wheel alignment settings are not adjustable.
