Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations

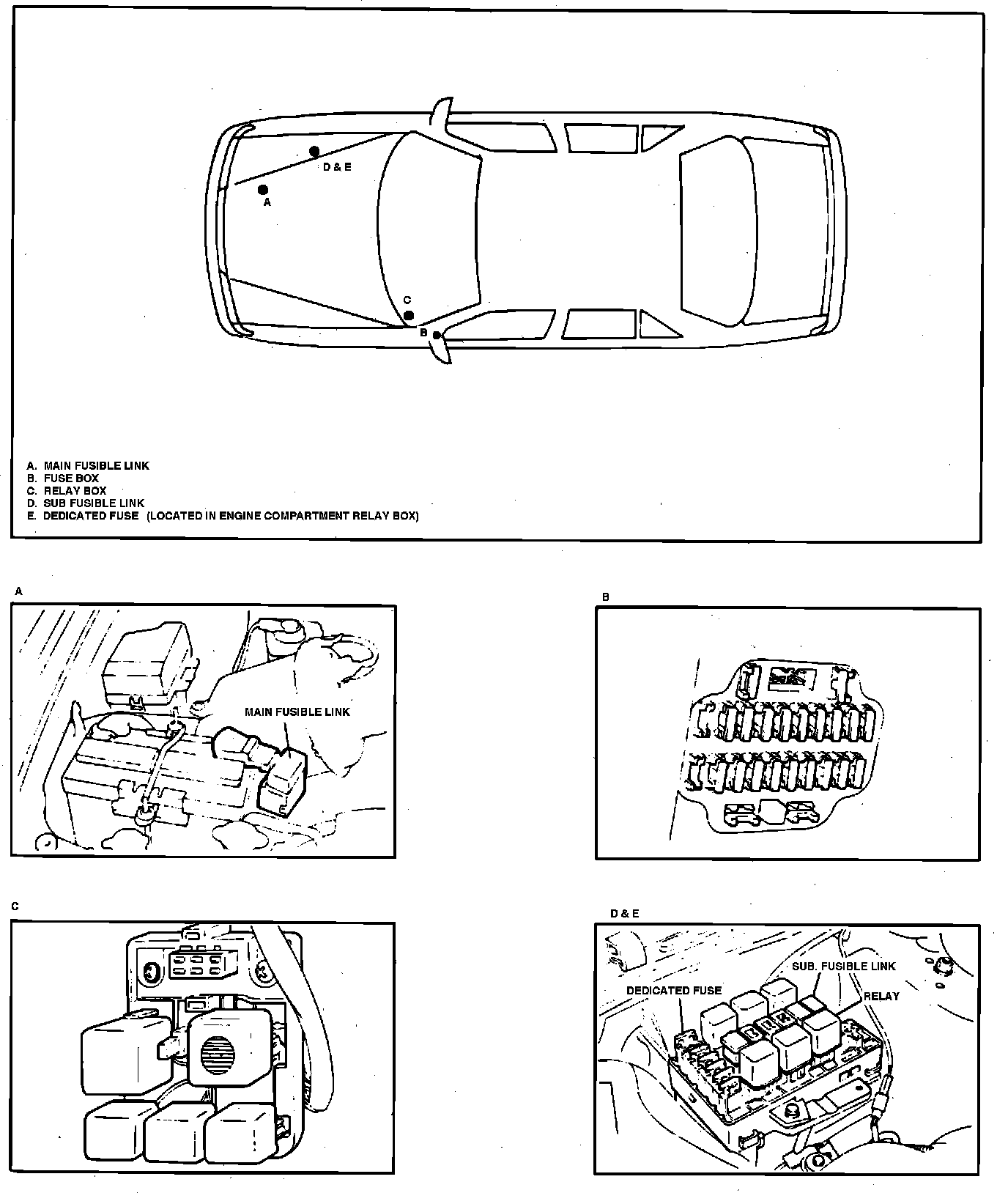

Fusible Link & Fuse Location.:
Behind LH Side Kick Panel
Applicable to: 3.0L/V6-181.4 Engine
