Connector Identification

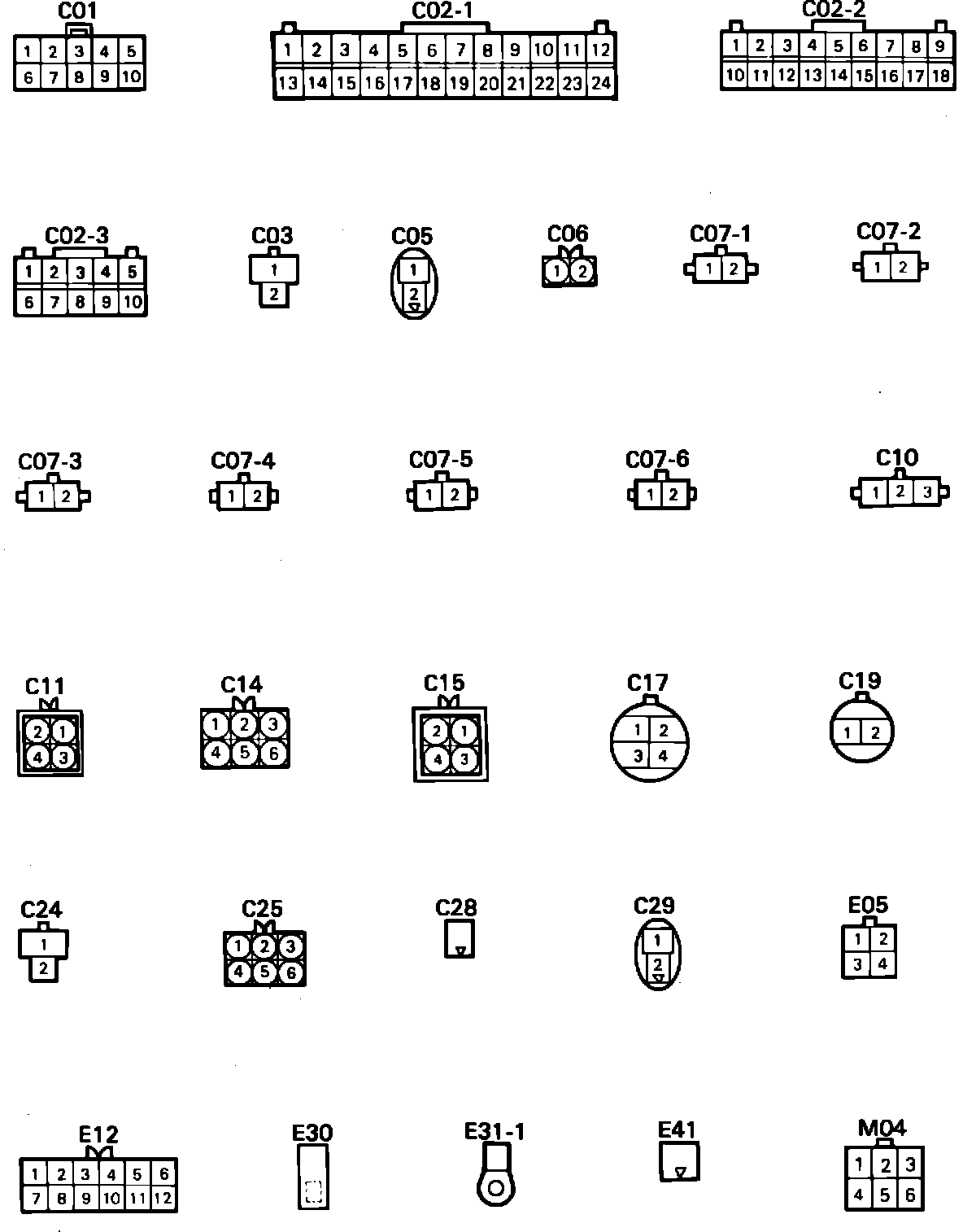

Multi-port Injections System. Connector Identification:

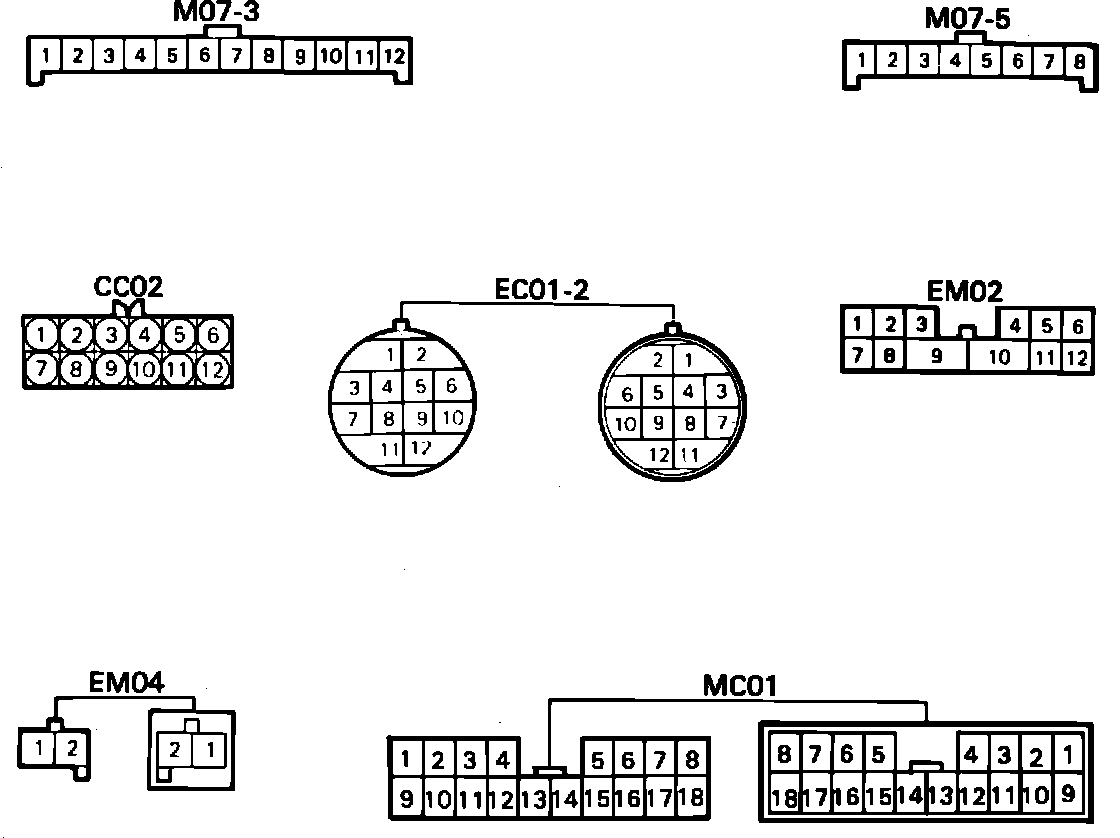

Multi-port Injections System. Connector Identification:
