Connector Views

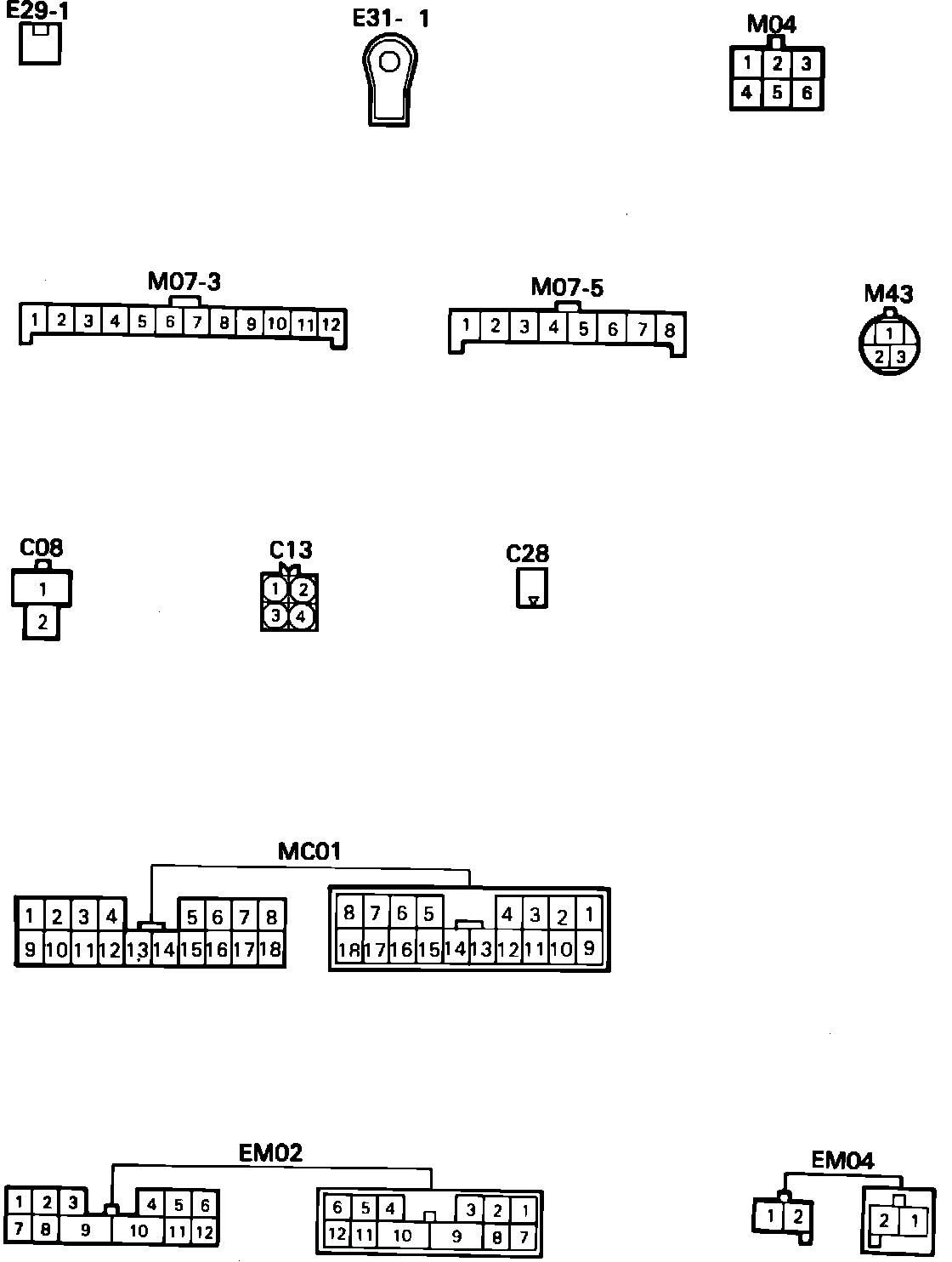

Gauges. Tachometer, Voltmeter, Check Engine, Oil, Fuel, Low Fuel And Temperature Indicator. Connector Identification:
