Oil Pan Assembly - Modifications/Installation

91hyundai01

Group: ENGINE


Number: 019 Revised

Date: January, 1991


Model: Sonata


Subject

OIL PAN DESIGN MODIFICATION AND SPECIAL INSTALLATION REQUIREMENTS

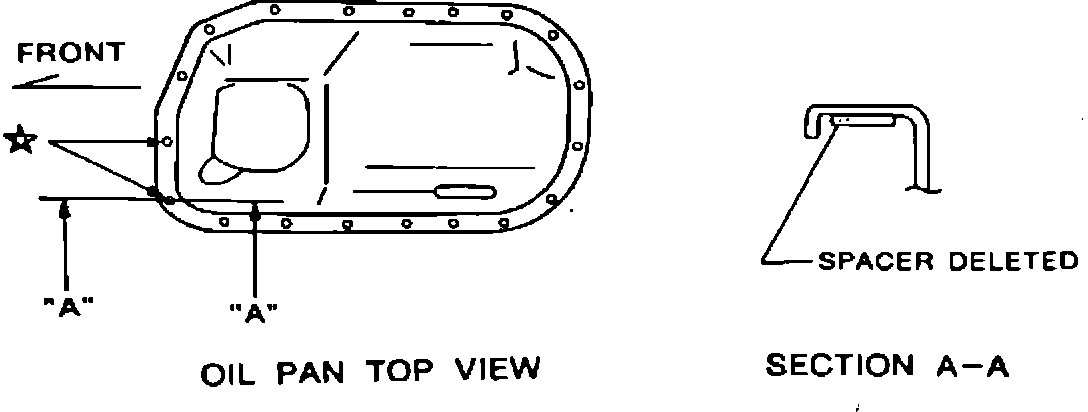

Figure 1:

This is a revision of TSB Vol 2, Engine, 019 issued in June, 1990. Please discard the original issue and use this one in it's place.

The welded spacer has been deleted from the front mounting flange of the engine oil pan and two of the nineteen (19) mounting bolts have been changed from M6 x 12 (silver), to M6 x 10 (black).

When installing the new design oil pan to the engine block, the two shorter black bolts (M6 x 10) must be installed at the star marked mounting holes as shown in Figure 1.


EFFECTIVE DATE New oil pan and bolts applied to vehicles built from February 26, 1990.


WARNING: If the longer silver bolts (M6 x 12) are installed in the holes marked with stars, they may interfere with the timing belt.

PARTS INFORMATION

CURRENT NEW
PART NAME PART NO. QTY PART NO. QTY REMARKS

Oil Pan Assembly 21510-32501 1 21510-32502 1

Bolt & Washer 11233-06126 19 11233-06126 17 M6x12 silver
Assembly - - 111233-06103 2 M6x10 black

Parts interchangeability

When the oil pan and bolts are installed as a set, the new parts are interchangeable with the current parts.
