Diagnostic Procedures

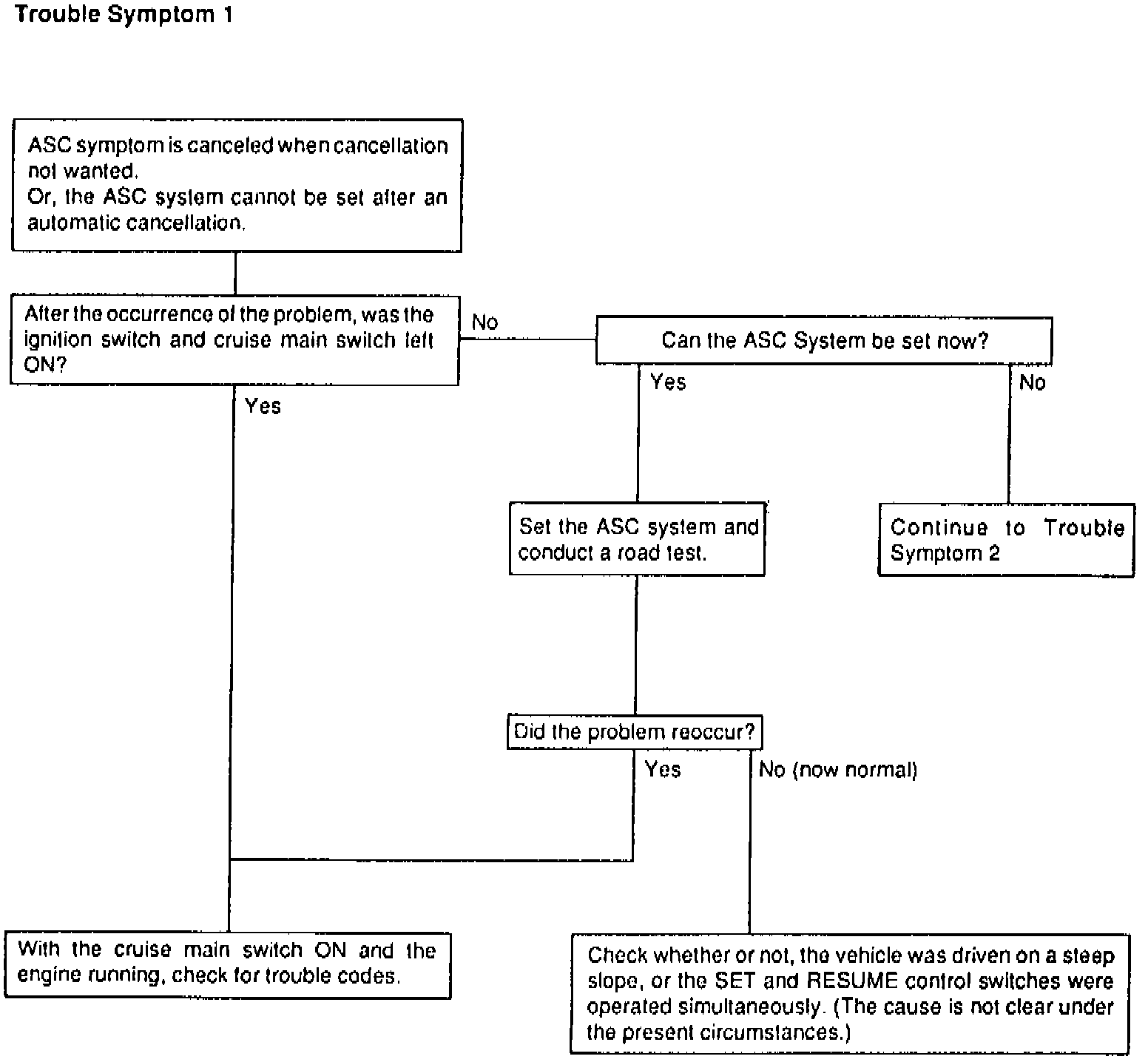

Fig. 8 Speed Control Symptom Chart (Part 1 Of 5):

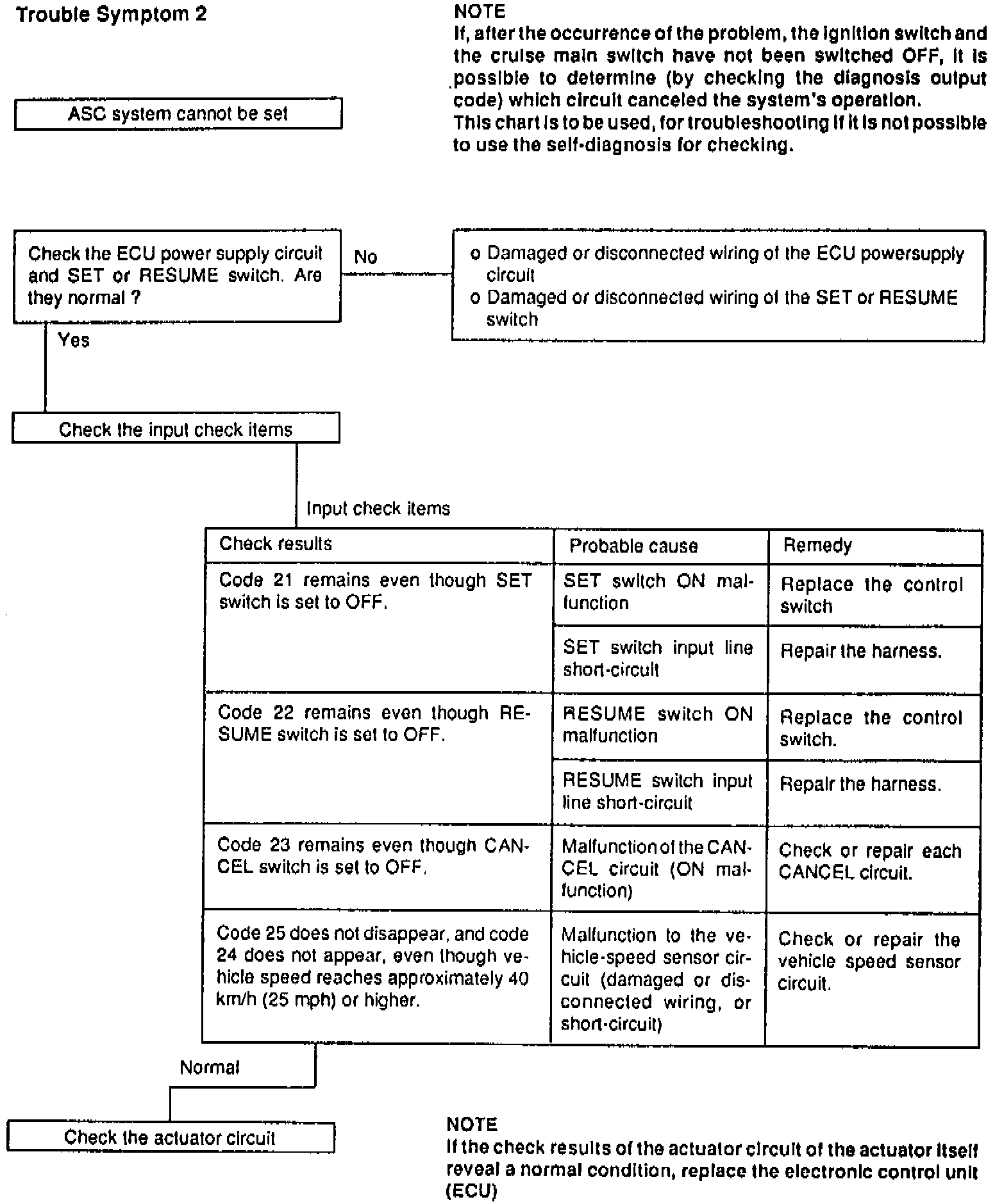

Fig. 8 Speed Control Symptom Chart (Part 2 Of 5):

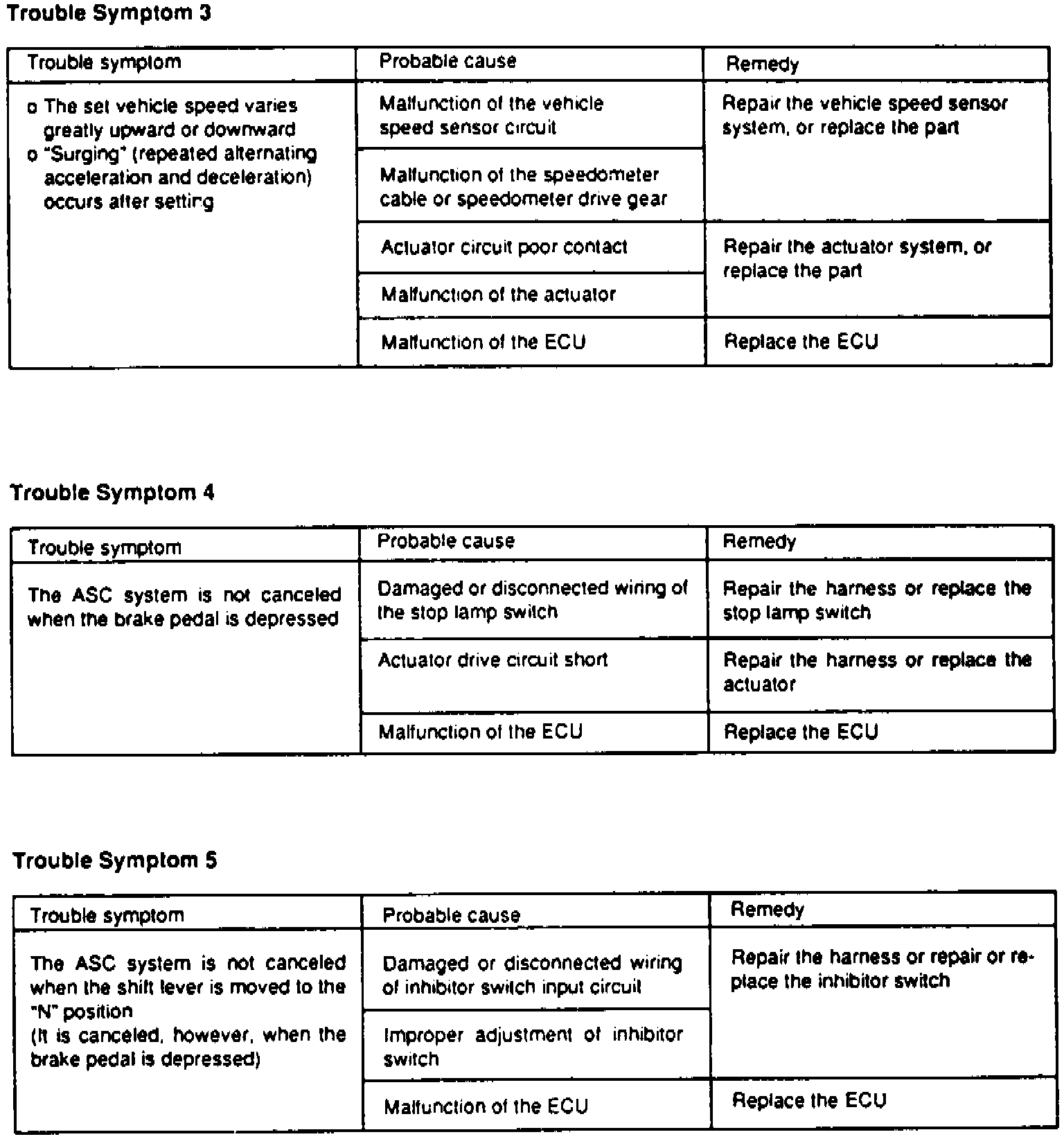

Fig. 8 Speed Control Symptom Chart (Part 3 Of 5):

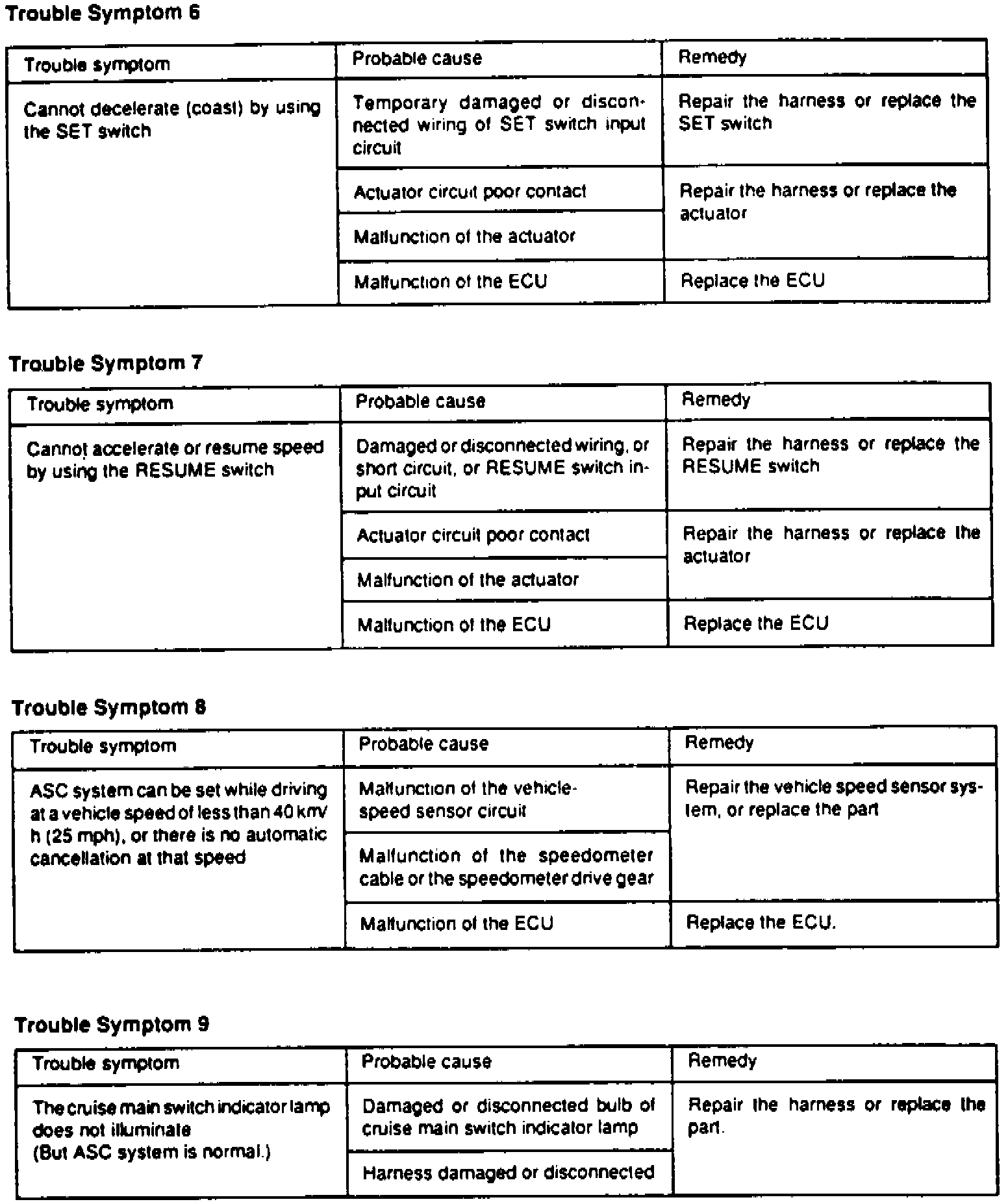

Fig. 8 Speed Control Symptom Chart (Part 4 Of 5):

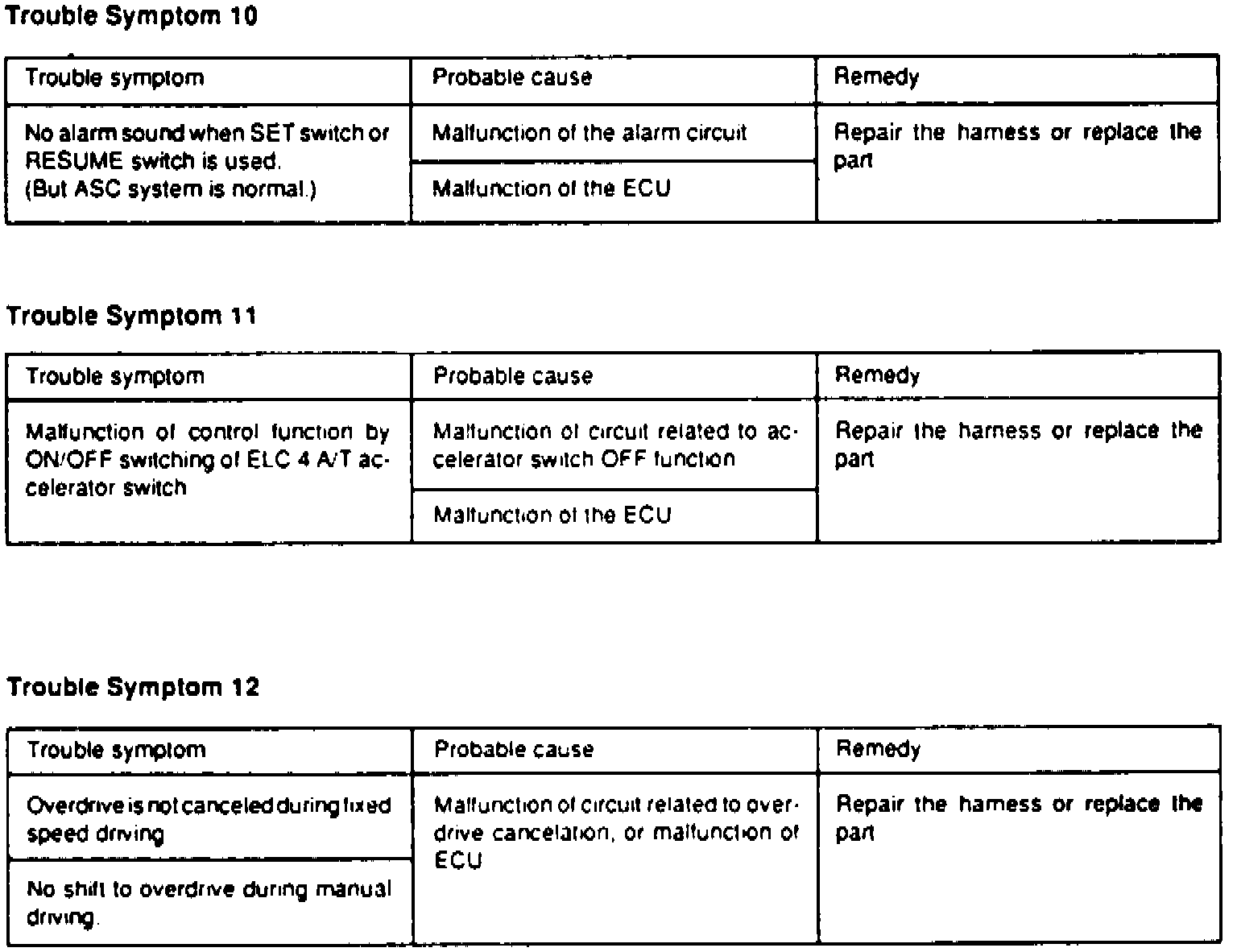

Fig. 8 Speed Control Symptom Chart (Part 5 Of 5):

After stored trouble codes are displayed, refer to trouble code symptom charts, Fig. 8.
