Condenser Fan Motor Relay: Testing and Inspection
POWER RELAY CHECK AIR-CONDITIONER RELAY, AND CONDENSER FAN RELAY. 1.
Remove the battery ground cable.
2.

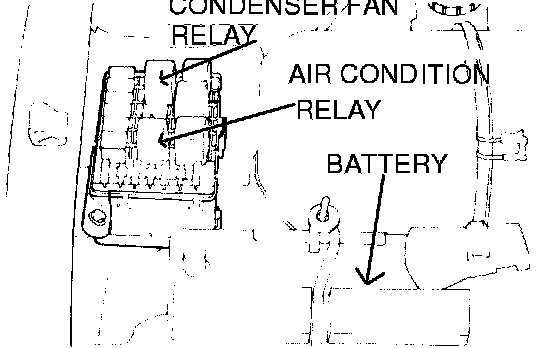

Remove the cover of
relay box located in engine compartment.
3.

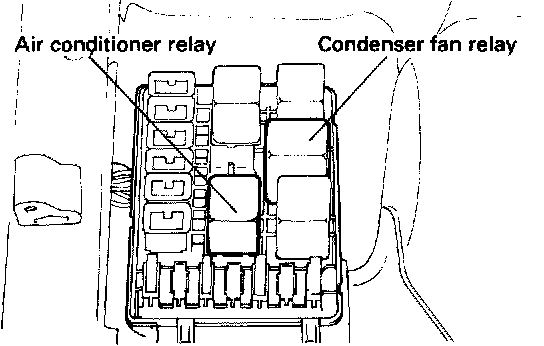

Remove the relays from
relay box.
4.

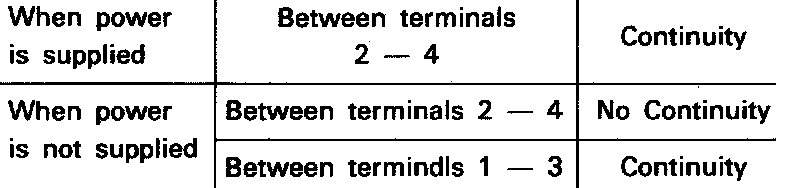

Check for continuity between the terminals.
