Automatic Transmission

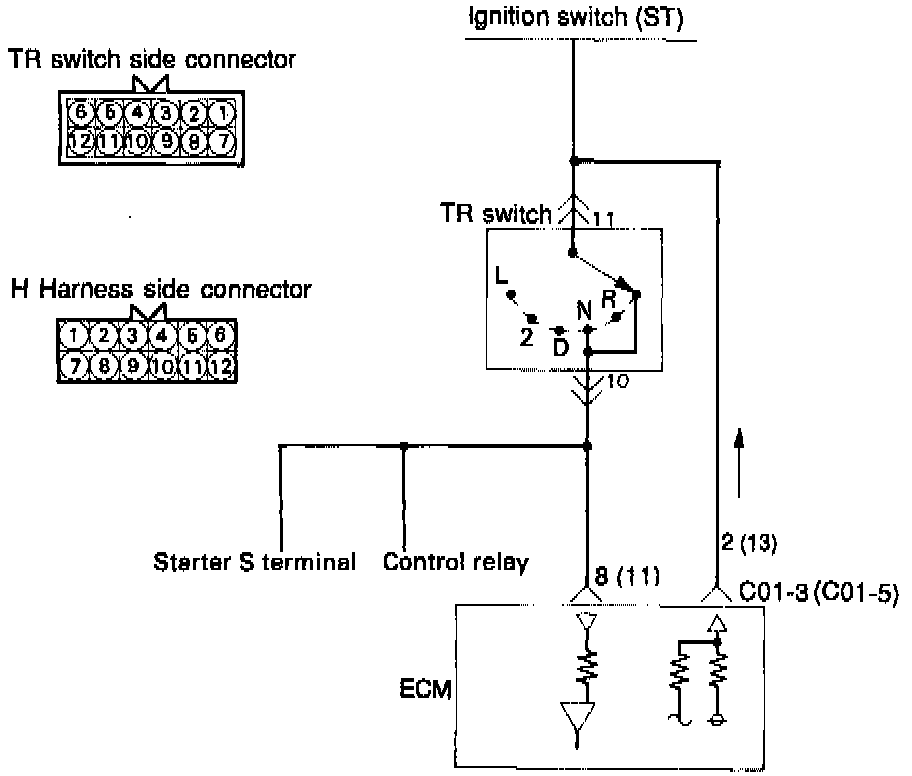

Circuit diagram
Troubleshooting Hints It the transaxle range switch harness check is normal but the transaxle range switch output is abnormal, check for the control cable adjustment.

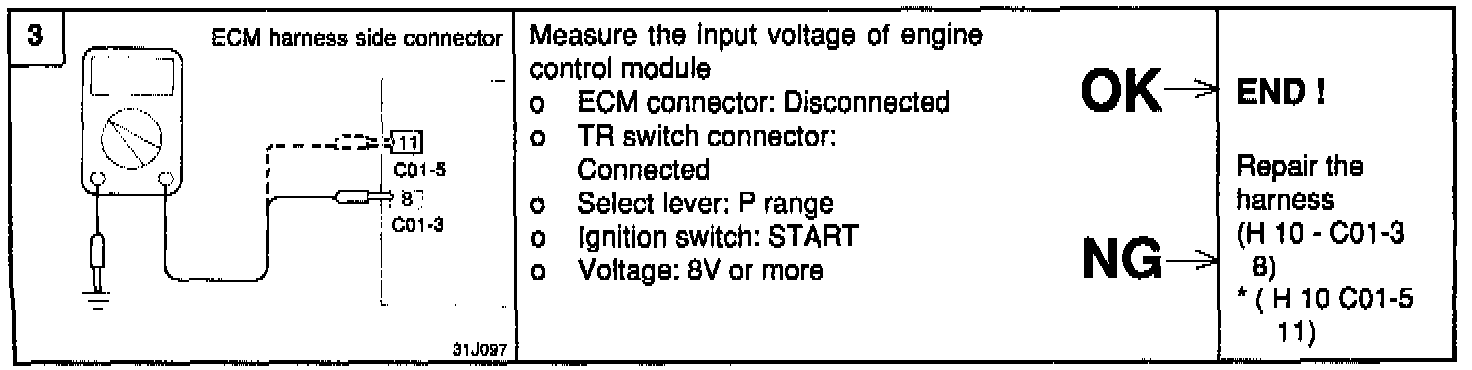

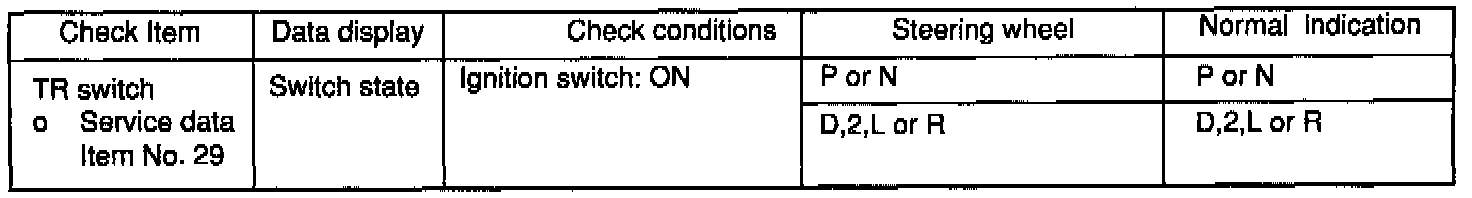

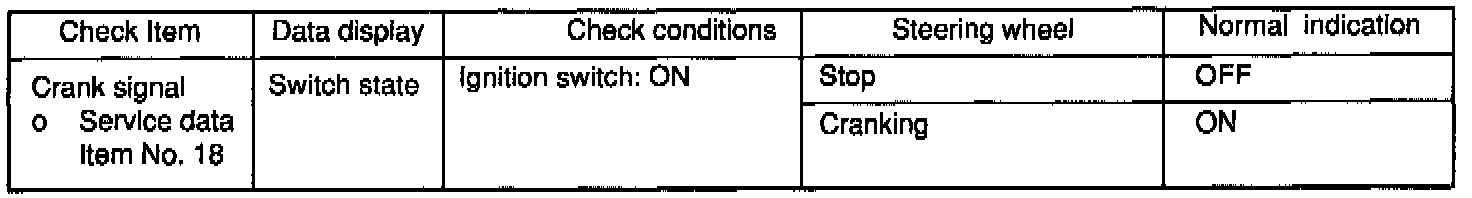

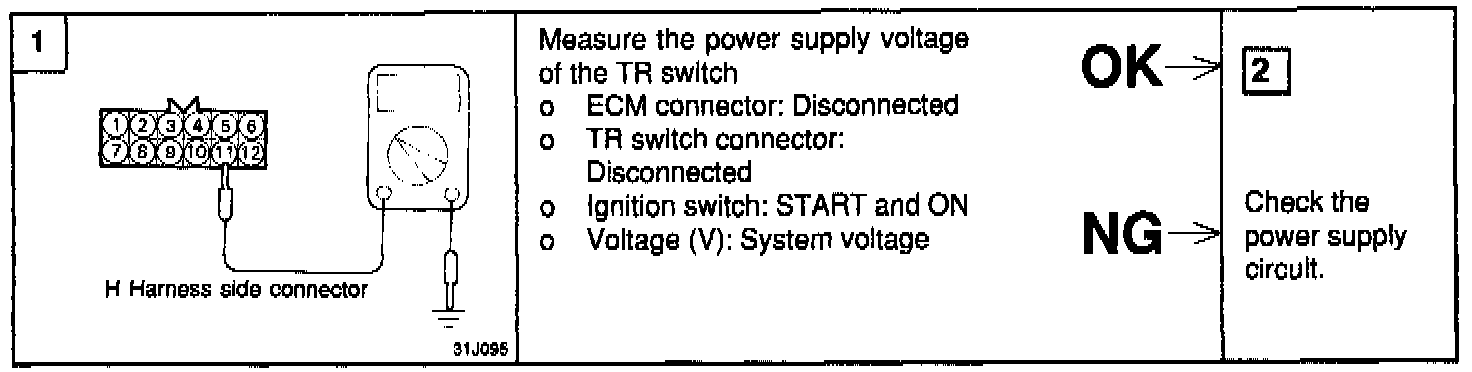

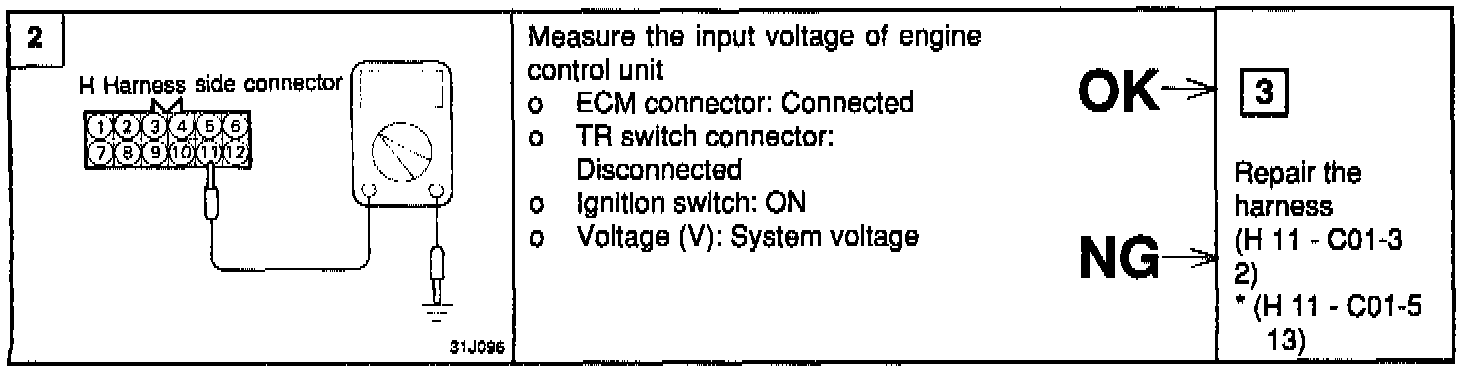

Using scan ToolHarness Inspection Procedure
