ECM Power and Ground Supply Circuits
ENGINE CONTROL MODULE POWER GROUND
Description Grounds the
engine control module.

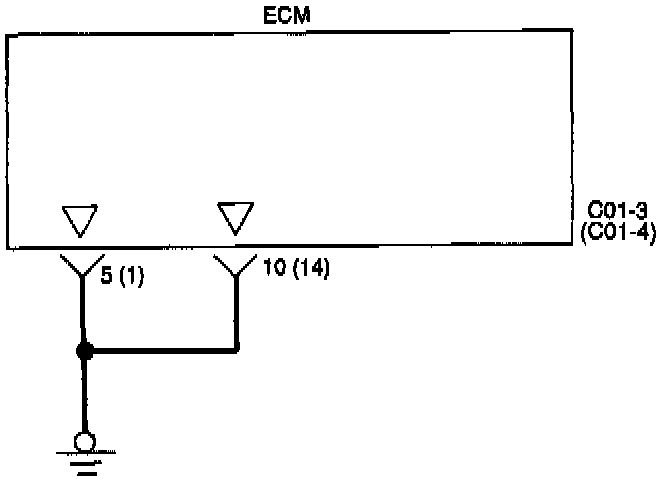

Circuit Diagram
Troubleshooting Hints If the ground wire of the
engine control module is not connected securely to ground, the unit will not operate correctly.

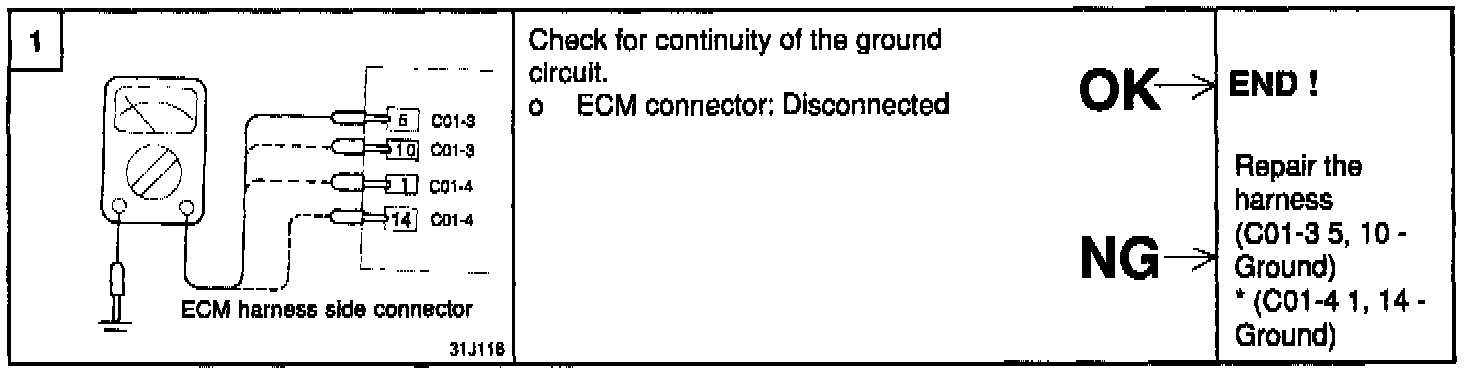

Harness Inspection Procedure
