Ignition Coil and Ignition Power Transistor
IGNITION COIL AND IGNITION POWER TRANSISTOR
Description The ignition power transistor functions to control the
ignition timing by controlling the
ignition coil promary current by signals from the
engine control module.

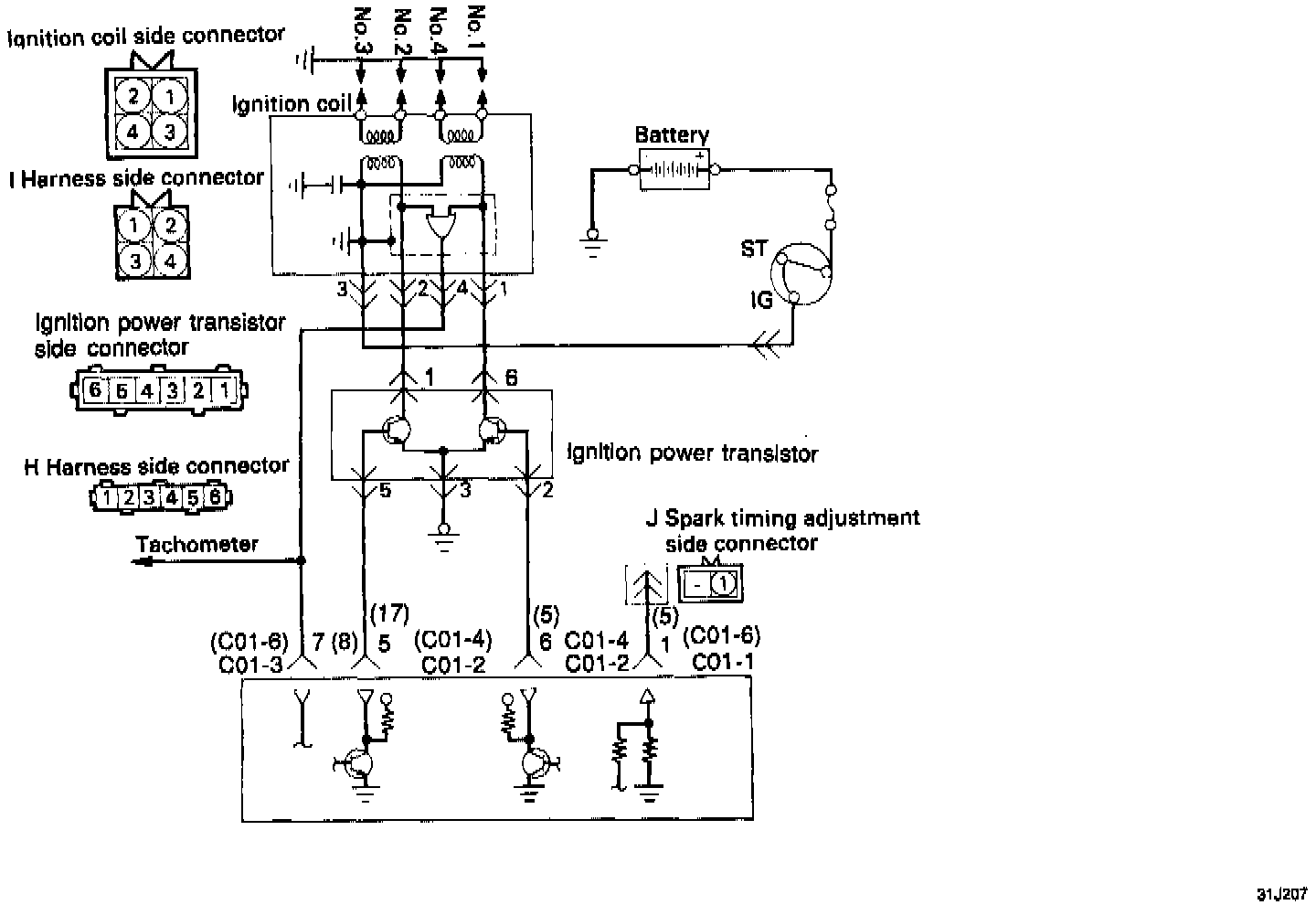

Circuit Diagram

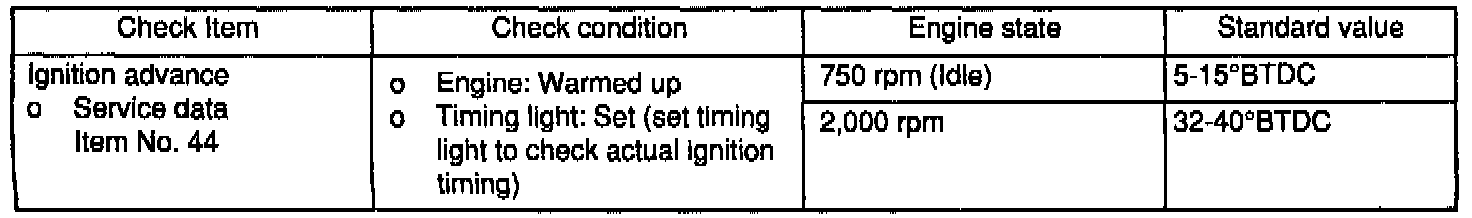

Using scan Tool

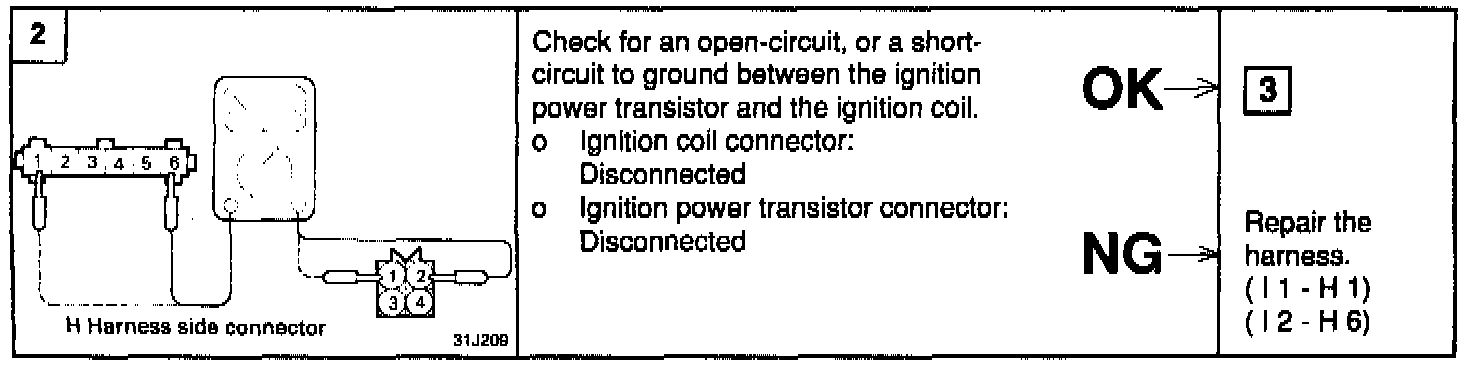

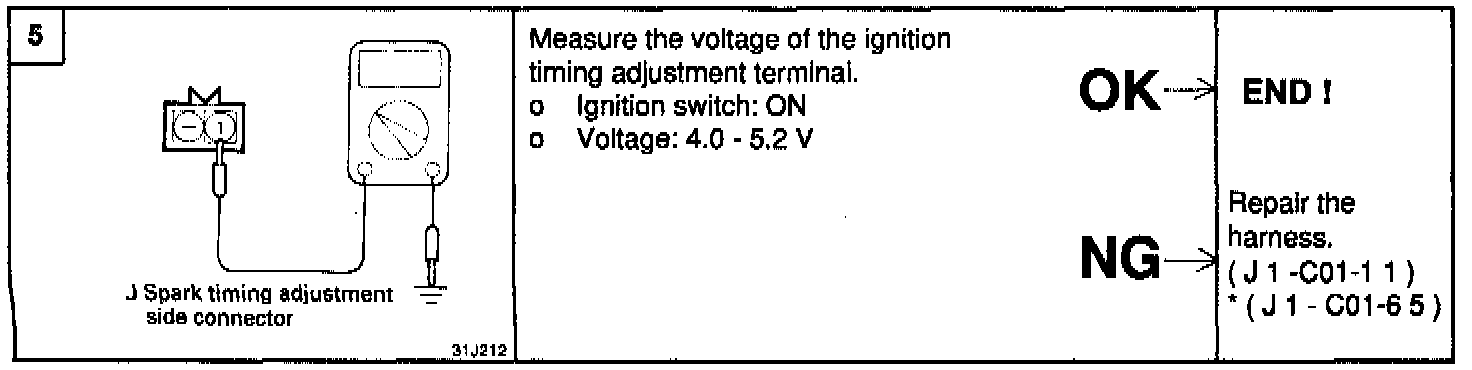

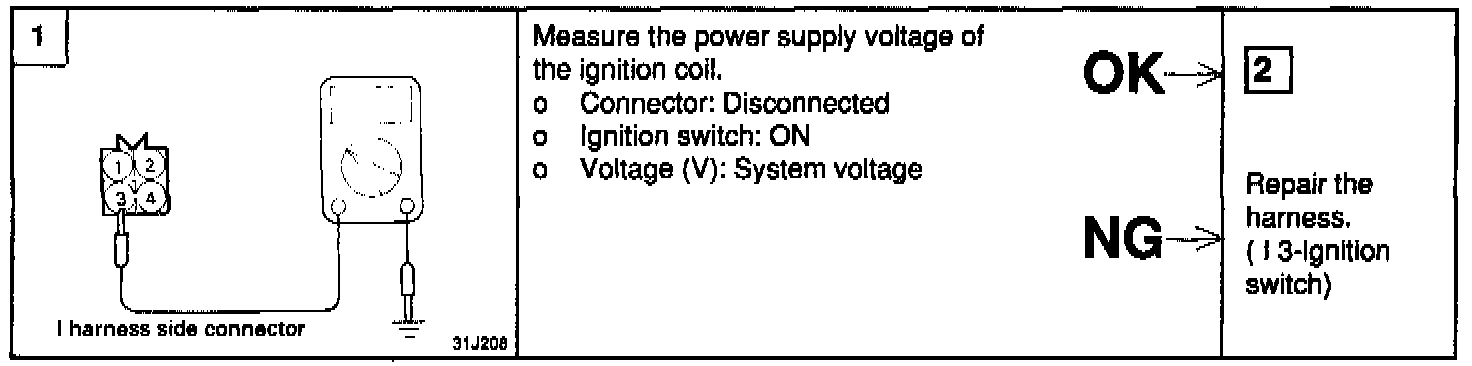

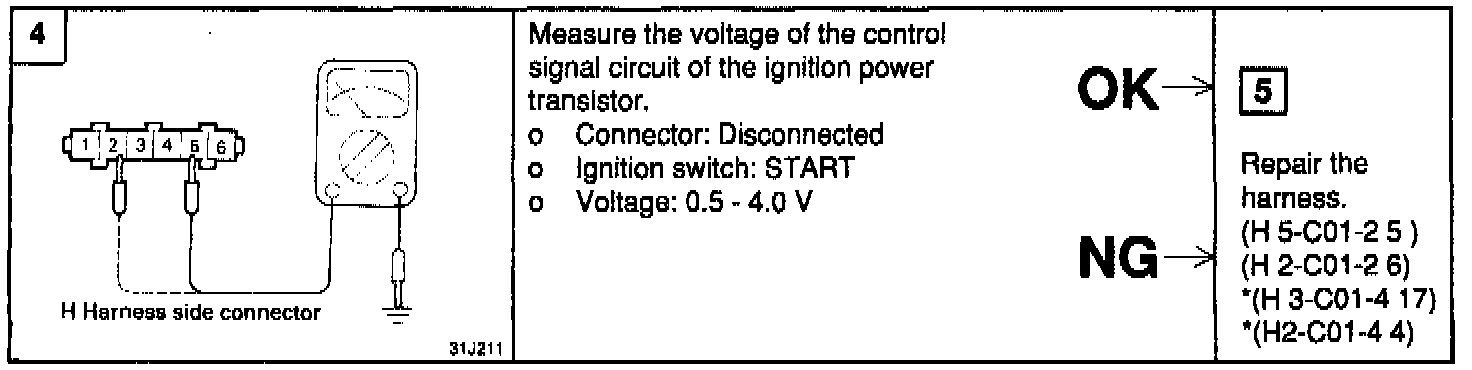

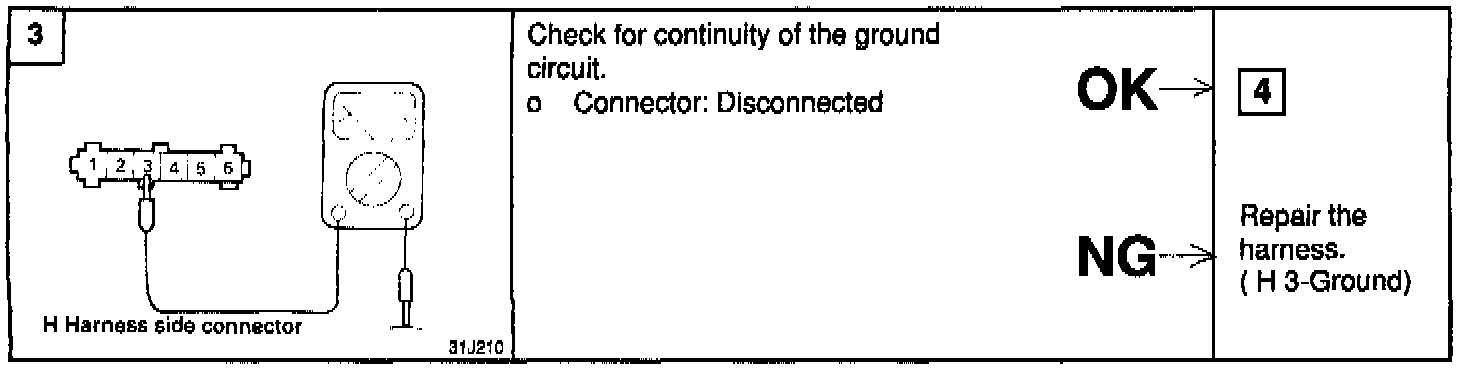

Harness Inspection Procedure
