Ignition Signal With M/T
IGNITION SWITCH WITH M/T Description The
ignition switch - ST inputs a high signal to the
engine control module while the engine is cranking.
The
engine control module provides fuel injection control, etc. at engine start-up based on this signal.

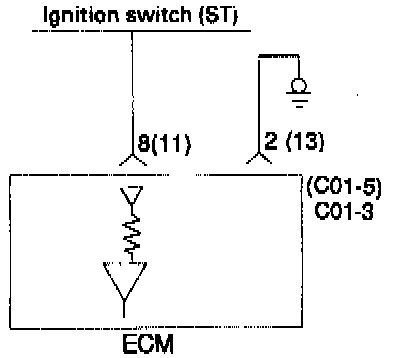

Circuit Diagram

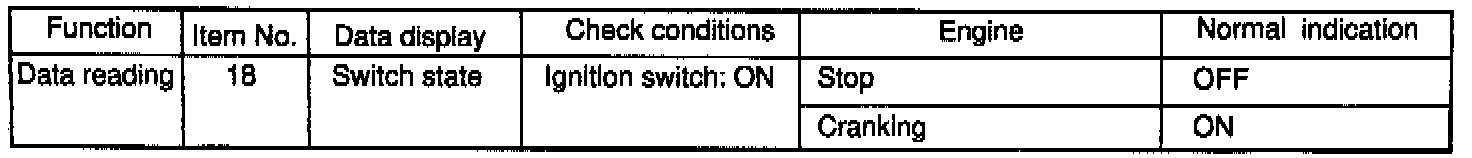

Using scan Tool

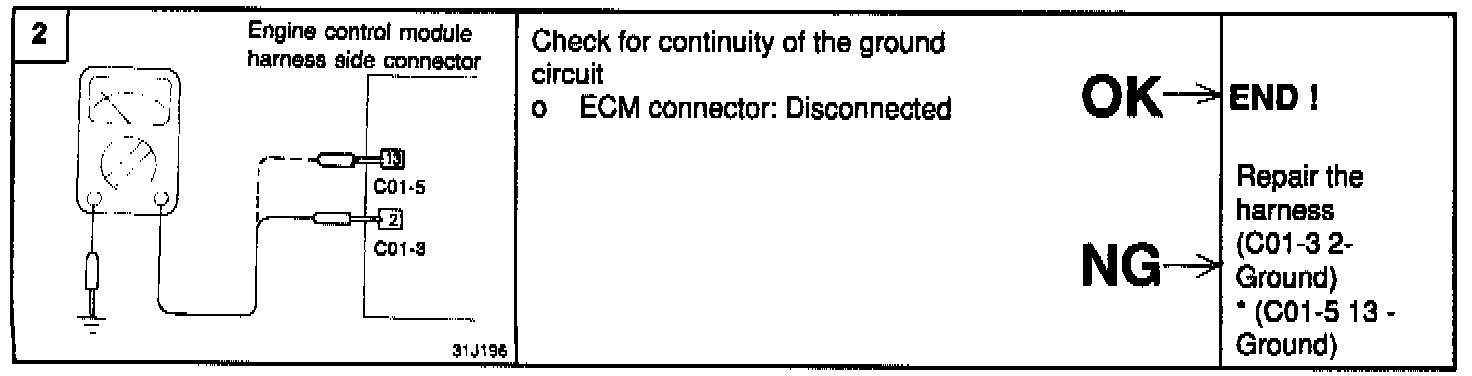

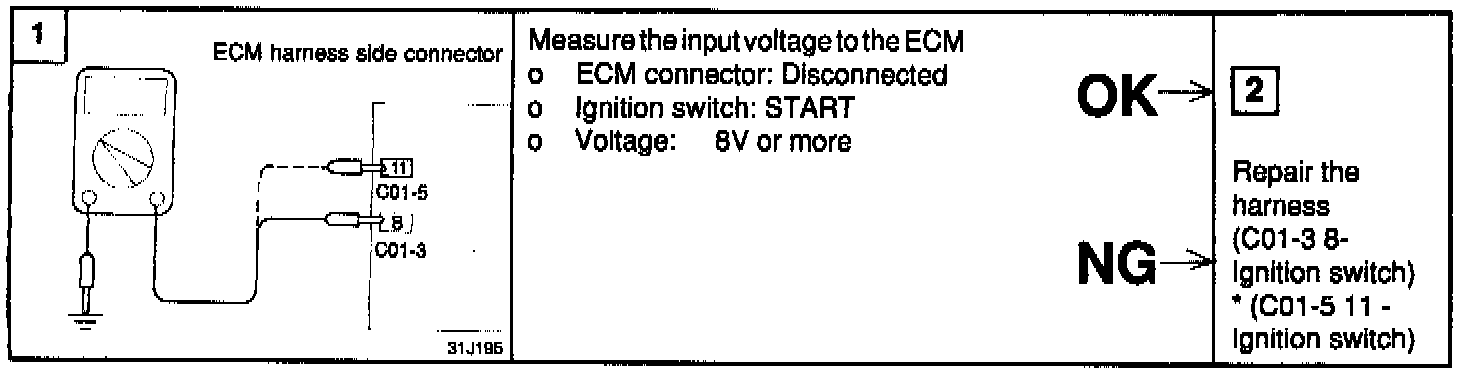

Harness Inspection Procedure
