A/T Front Clutch Assembly - Modification
Group: TRANSAXLENumber: 93-40-012
Date: AUGUST, 1993
Model: SONATA, ELANTRA
Subject:
CHANGE OF FRONT CLUTCH ASSEMBLY
DESCRIPTION

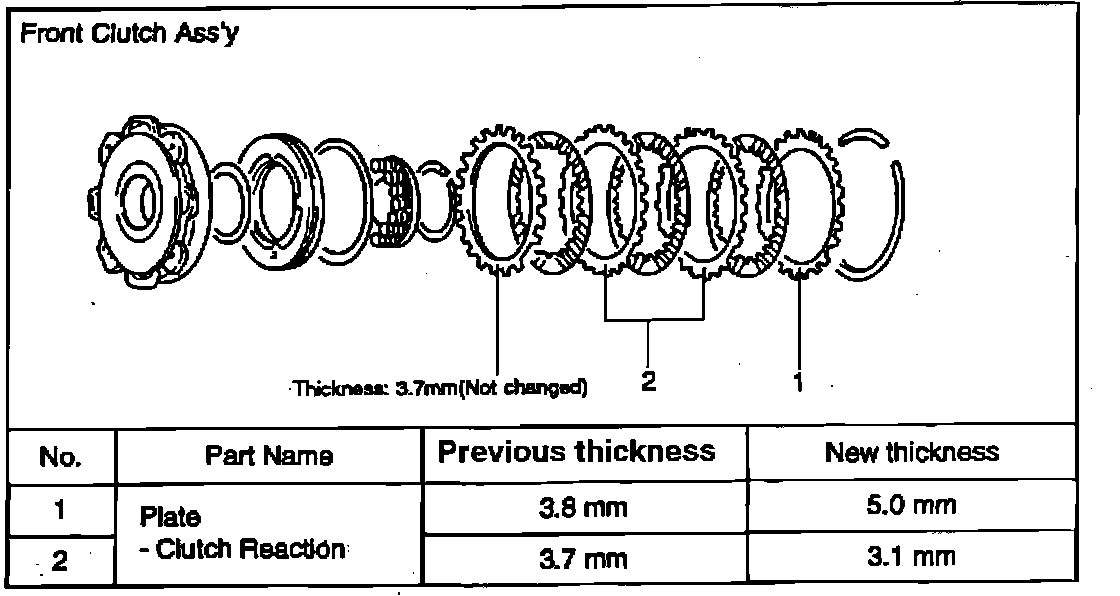

The automatic transaxle reaction plates in the front clutch have been changed in thickness as described is illustration.
The total length of the front clutch assembly has not changed even though the thickness of each reaction plates has been changed.
New reaction plates must be replaced as a set and are not interchangeable individually with the previous thinner reaction plates.
NOTE:
New and previous reaction plates cannot be mixed.
APPLICABLE MODEL
^ SONATA KM 175 All models except Sonata V6
^ ELANTRA KM 175 Vehicles equipped with 1.8L DOHC engine
PART INFORMATION
EFFECTIVE PRODUCTION DATE
Date: March 13, 1993
Auto-Transaxle Serial Number:
^ SONATA 2.0 DOHC: CPFAD 794151
^ ELANTRA 1.8 DOHC: CPGAD 794751

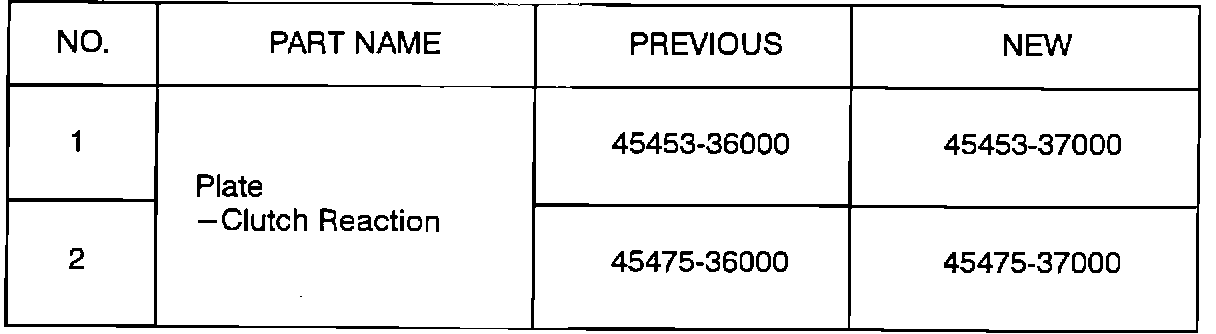

INTERCHANGEABILITY:
