Engine Oil Filter - Improved Design

Group: ENGINE MECHANICAL

Number: 93-20-012

Date: AUGUST; 1993

Model: ALL

Subject:

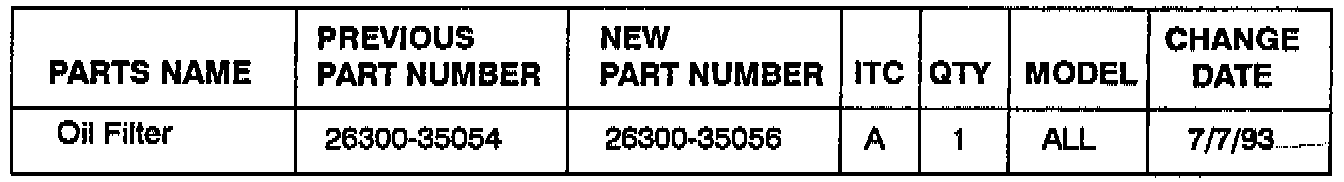

OIL FILTER CHANGED





The oil filter that was previously used exclusively on the Sonata V6 models will now be applied for use on all models and model years. The oil filter used previously on all the four cylinder engines will no longer be available once stock is depleted.

The oil filter gasket shape has been changed, the material improved, and its diameter increased. The oil filter color has been changed from gray to green.
