Vehicle Speed Sensor: Description and Operation
VEHICLE SPEED SENSOR (VSS) The vehicle speed senor is a reed switch. The
vehicle speed sensor is built into the speedometer and converts the transaxle gear revolutions into pulse signals, which are sent to ECM.

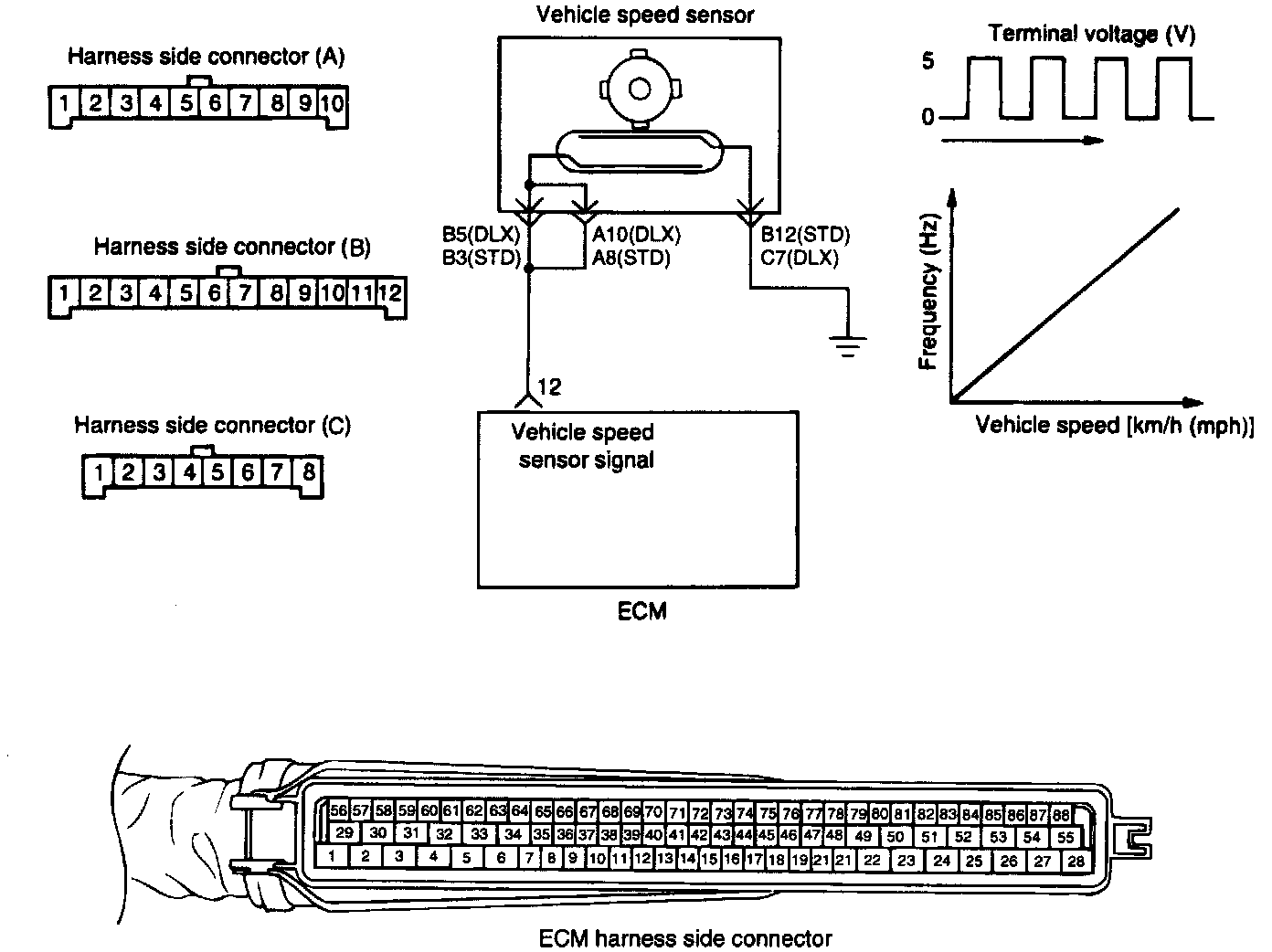

CIRCUIT DIAGRAM
