Connector Identification

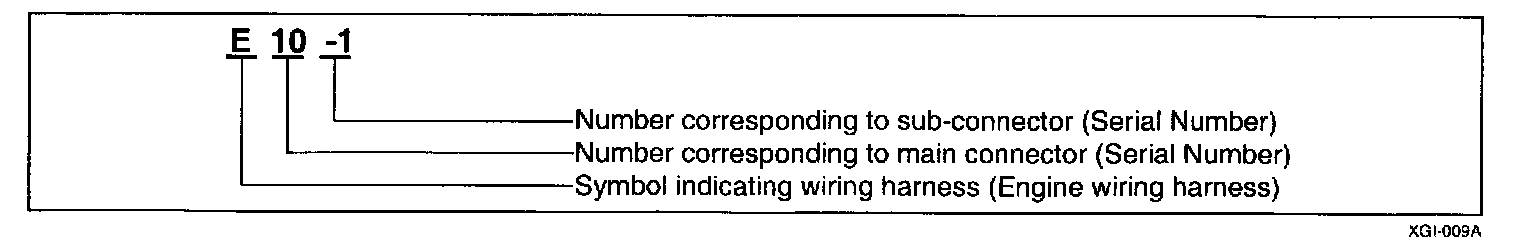

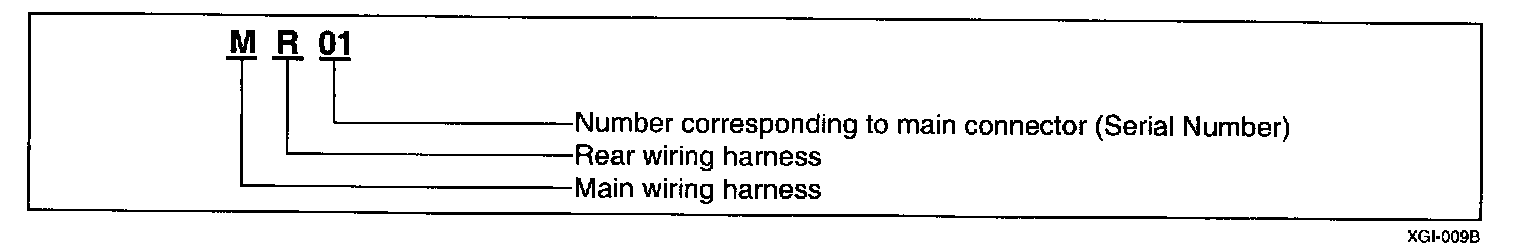

A connector identification symbol consists of a wiring harness location classification symbol corresponding to each other wiring harness location and number peculiar to the connector. These connector locations can be found in the WIRING HARNESS LAYOUT.





NOTE: Connectors which connect each wiring harness are represented by symbols.
