Air Bag Control Module: Service and Repair

SRS Control Module (SRSCM)
1. Disconnect battery ground cable.

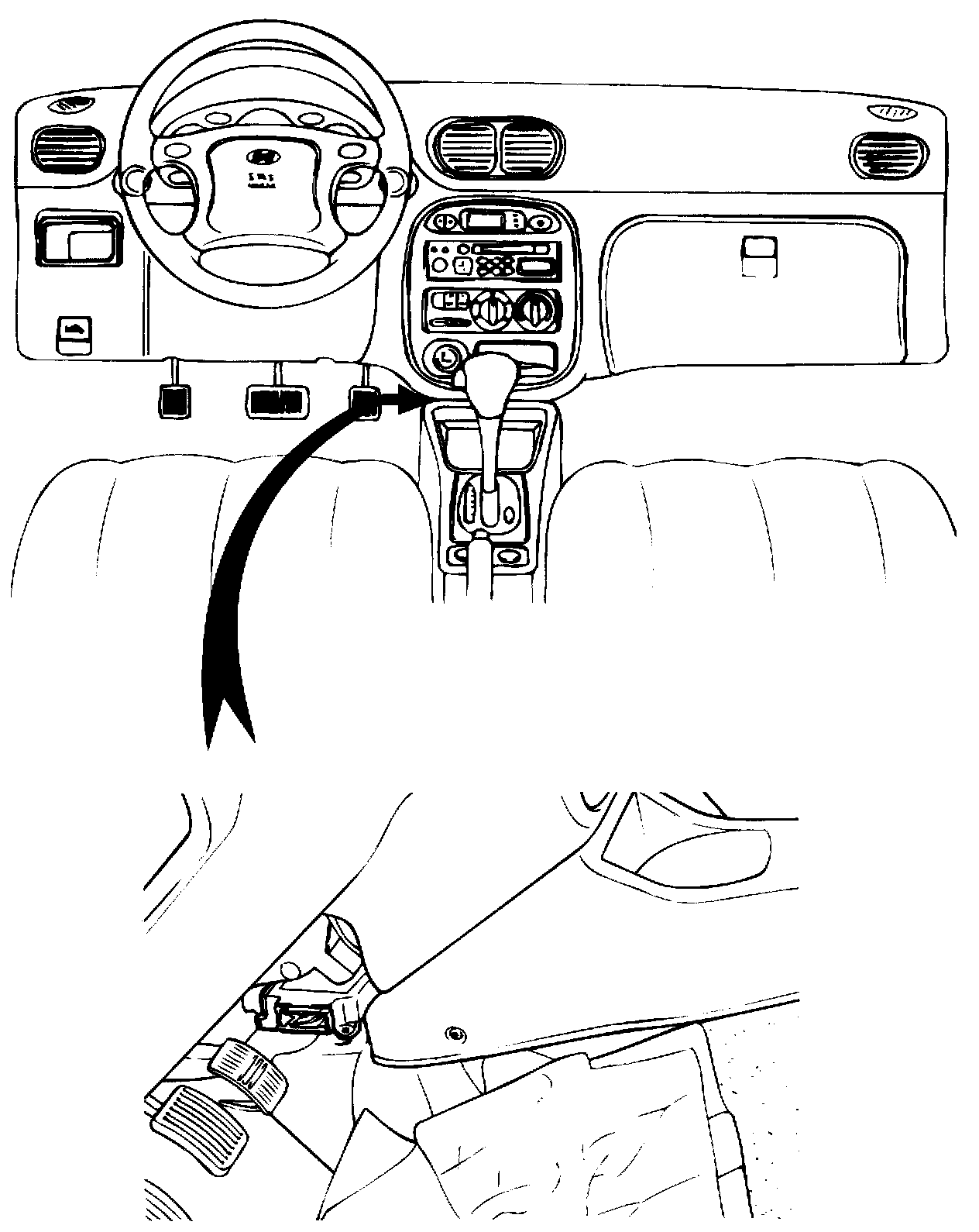

2. Remove center console side covers.
3. Disconnect air bag control module harness first before removing mounting bolts.
4. Remove mounting bolts and control module.

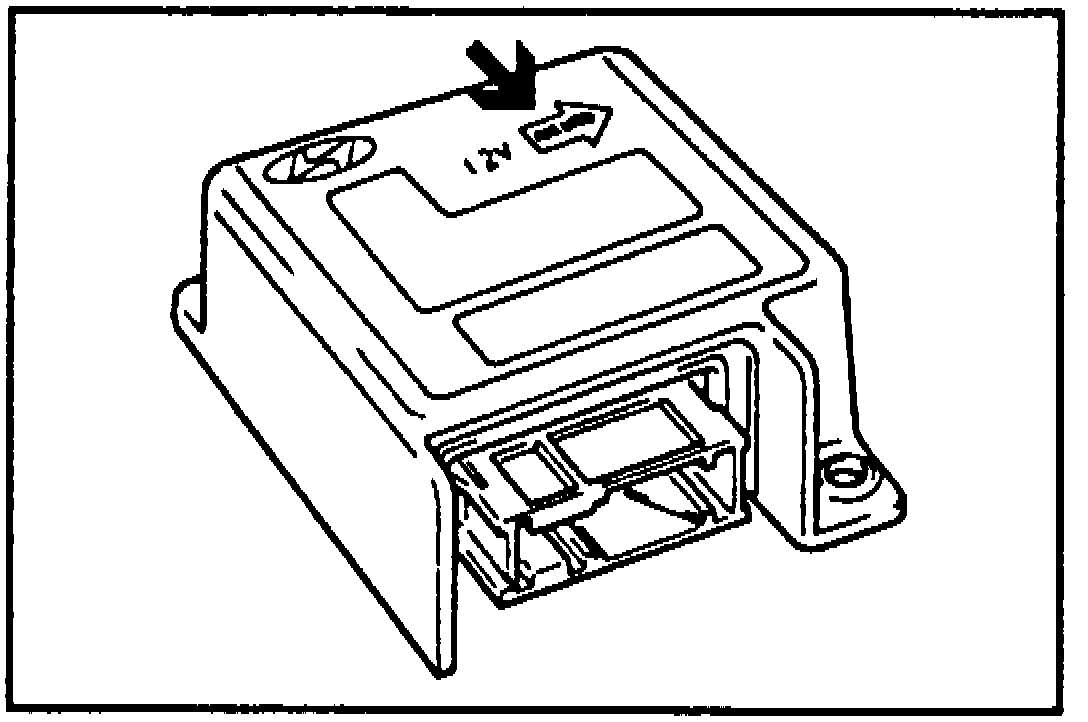

5. Reverse procedure to install. Install control module with arrow facing front of vehicle.
