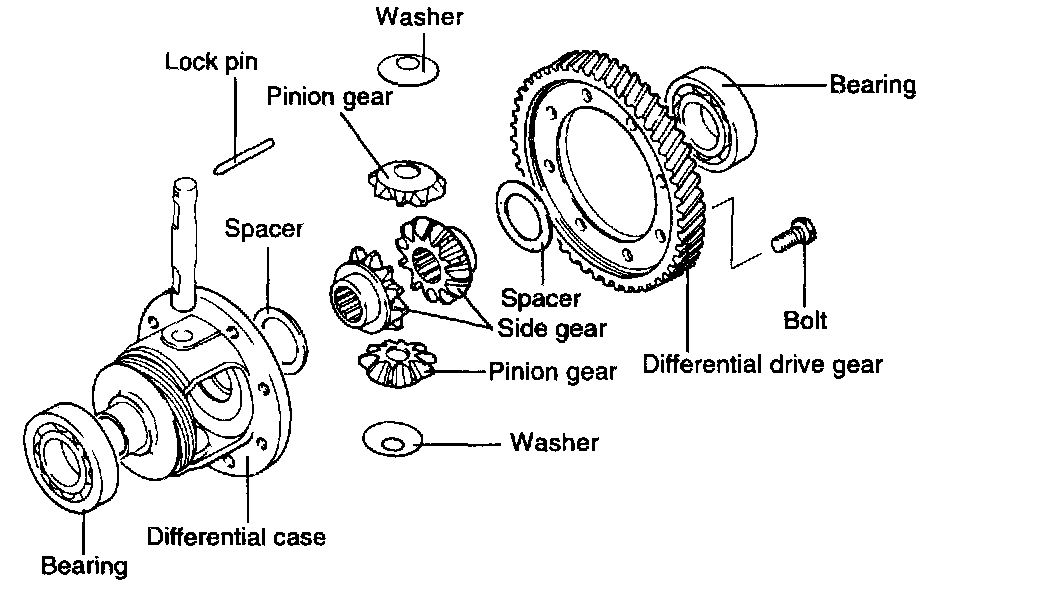

Differential

DISASSEMBLY





1. Remove the drive gear retaining bolts and drive gear from the differential case.

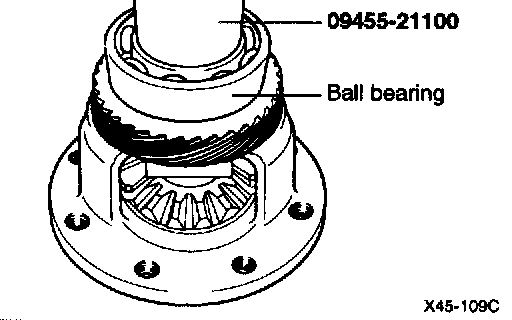

2. Remove the bearing with the special tool (09433-21000).

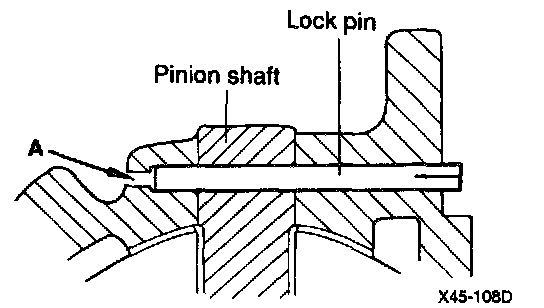

3. Drive out the lock pin with a punch inserted in hole "A".
4. Remove the pinion shaft, pinion gears and washers.
5. Remove the side gears and spacers. Do not mix the gears and spacers between the left and right sides.

REASSEMBLY
1. With the spacers installed on the back of the differential side gears, install the gears into the differential case. If reusing parts, install them in their original positions noted during disassembly. If using new differential side gears, install medium thickness spacers 1.0 mm (0.039 inch).
2. Install the washers on the back of the pinion gears. Install gears into the differential case, then insert the pinion shaft.

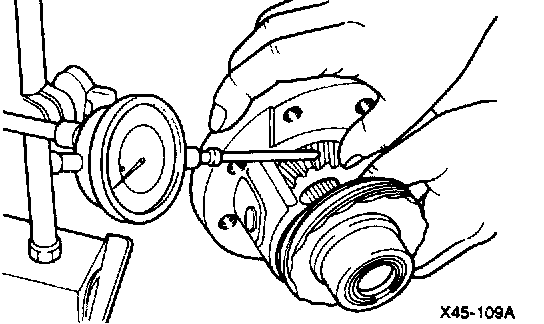

3. Measure the backlash between the side gear and the pinion gear.
Backlash should be 0.025 - 0.150 mm (0.0010 - 0.0059 inch) and the right and left hand gear pairs should have equal backlash. If the backlash is out of specification, disassemble and reassemble using different spacers for the correct backlash.
Standard value: 0.025 - 0.150 mm (0.0010 - 0.0059 inch)





4. Install the pinion shaft lock pin in the direction specified in the illustration.

Caution: The lock pin must not be reused.





5. Press the bearings onto both ends of differential case. Press on the inner race when installing the bearings. Do not apply load to outer race.
6. Install the differential drive gear onto the case.

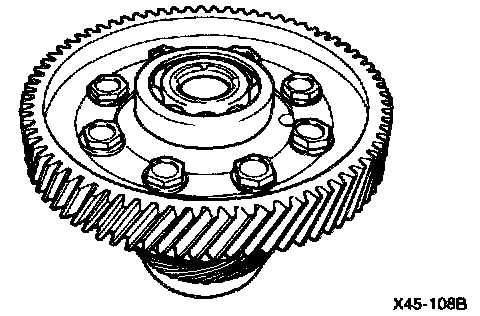

7. Apply ATF to the bolts and tighten the bolts to the specified torque in the sequence shown in the illustration.
Tightening torque: 130 - 140 Nm (1300 - 1400 kg.cm 94 - 101 ft. lbs.)
