Troubleshooting Hints

PAGE REFERENCE:

SYMPTOM CHART

QUICK TROUBLESHOOTING HINTS
- Check the blower fuse (30 A) and fuse No. 16 (10 A) for blower control system.
- Check that blower relay (M23) is mounted in passenger compartment relay box.
- Check fuse No. 1 (10 A) in the dash fuse box and Fusible Link l (BLUE, 20 A) in the engine compartment relay & fuse box for A/C control system.
- Check that A/C relay (E28) is mounted in engine compartment relay & fuse box.
- Check that A/C system is properly charged.
- Check condenser fuse (20 A) for condenser fan control and the main fusible link D (BLUE, 20 A) for radiator fan control, mounted in the engine compartment relay & fuse box.

SYMPTOM

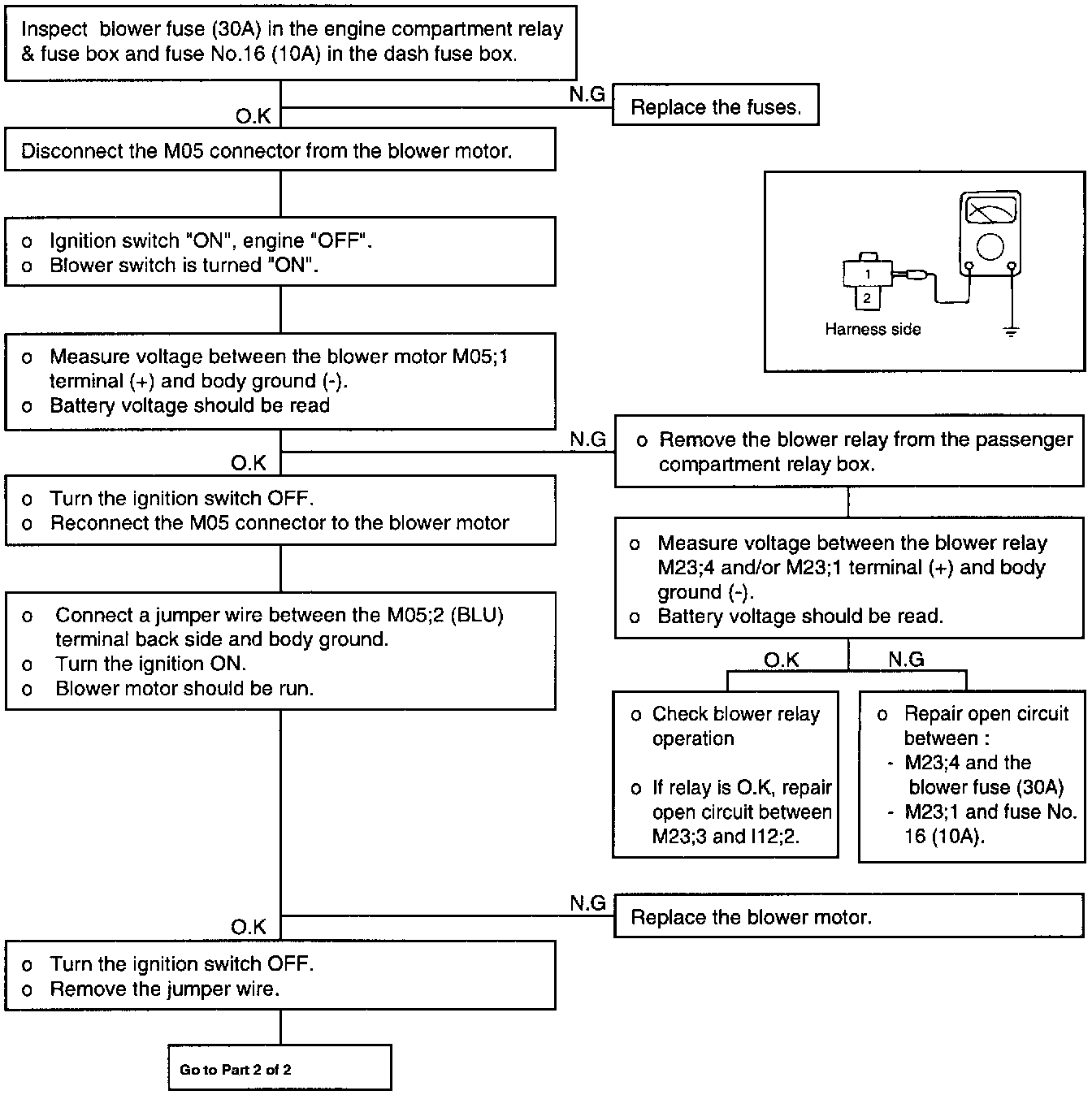

BLOWER MOTOR DOES NOT RUN AT ALL

BLOWER MOTOR RUNNING SPEED DOES NOT CHANGE

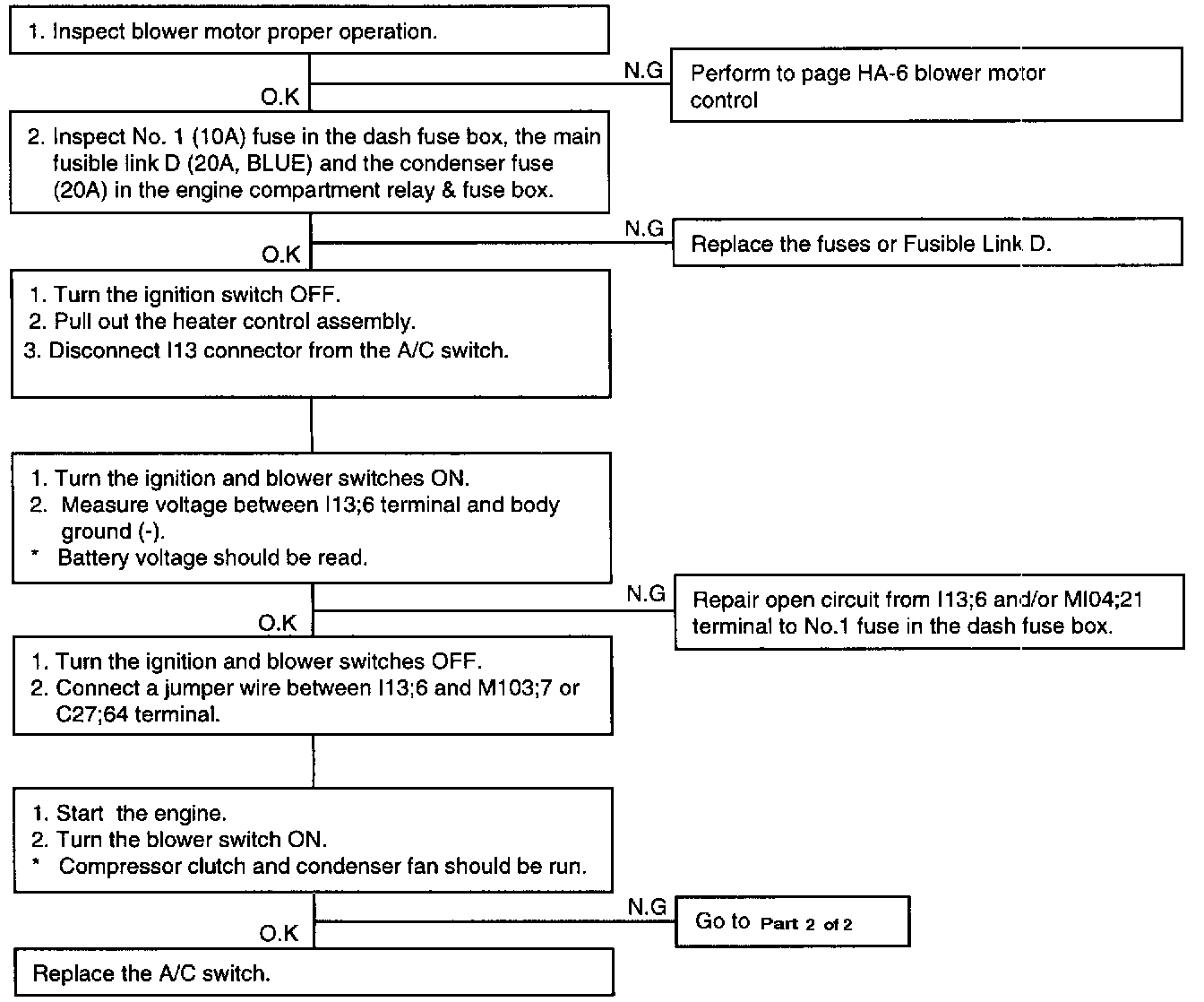

COMPRESSOR DOES NOT COME ON EVEN THOUGH THE CONDENSER FAN RUNS

COMPRESSOR AND CONDENSER FAN DO NOT RUN

ONLY CONDENSER FAN DOES NOT RUN

For Detailed Schematic Diagram Refer to Electrical Diagrams.
