Key to Wiring Diagrams and Symbol I.D.
The symbols and the abbreviations explained here are used throughout the database.

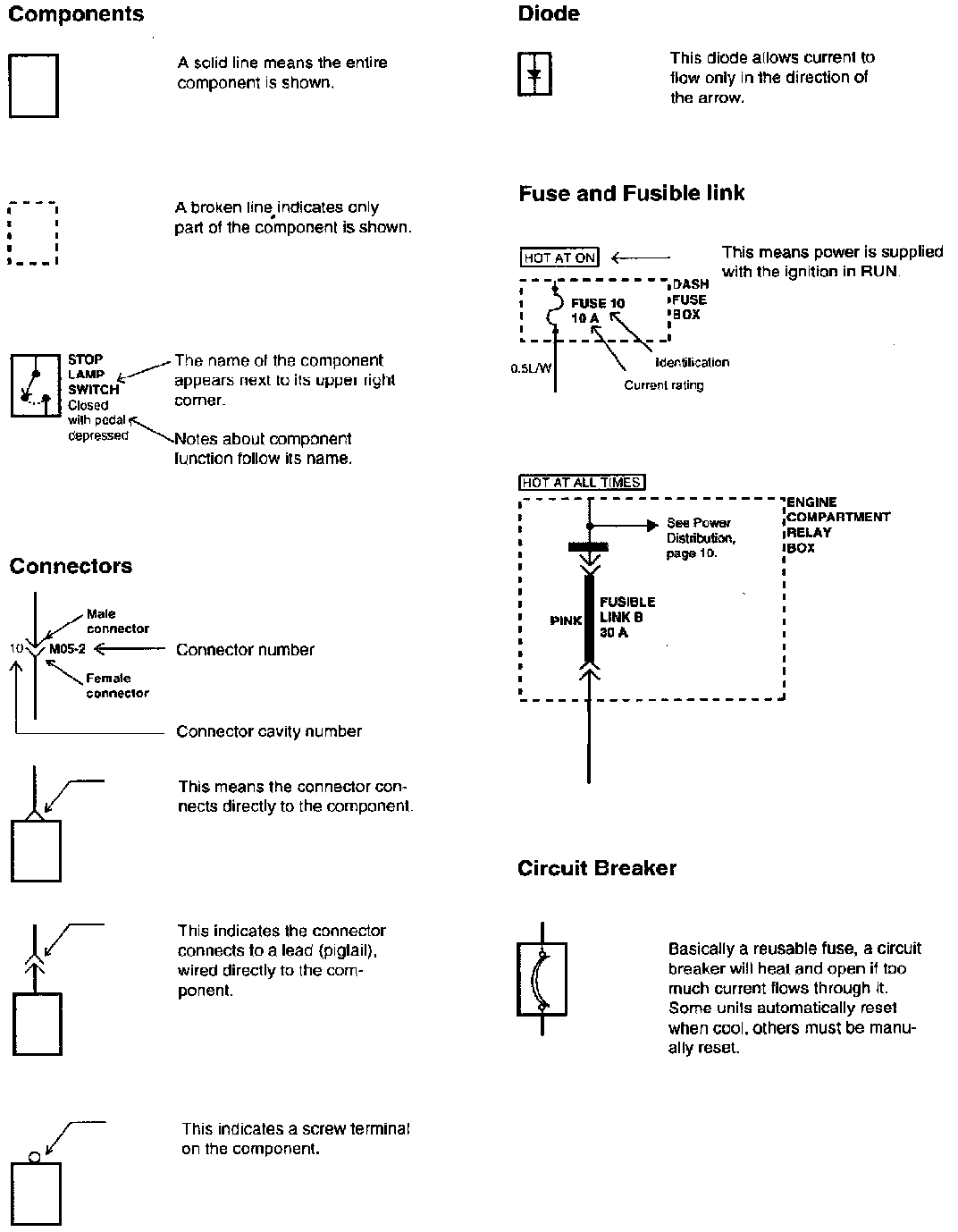

Symbols (Part 1 Of 3):
Symbols (Part 2 Of 3):
Symbols (Part 3 Of 3):
