Home >> Hyundai >> 1998 >> Accent GL Sedan L4-1495cc 1.5L SOHC MFI >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Diagrams >> Electrical Diagrams

Electrical Diagrams

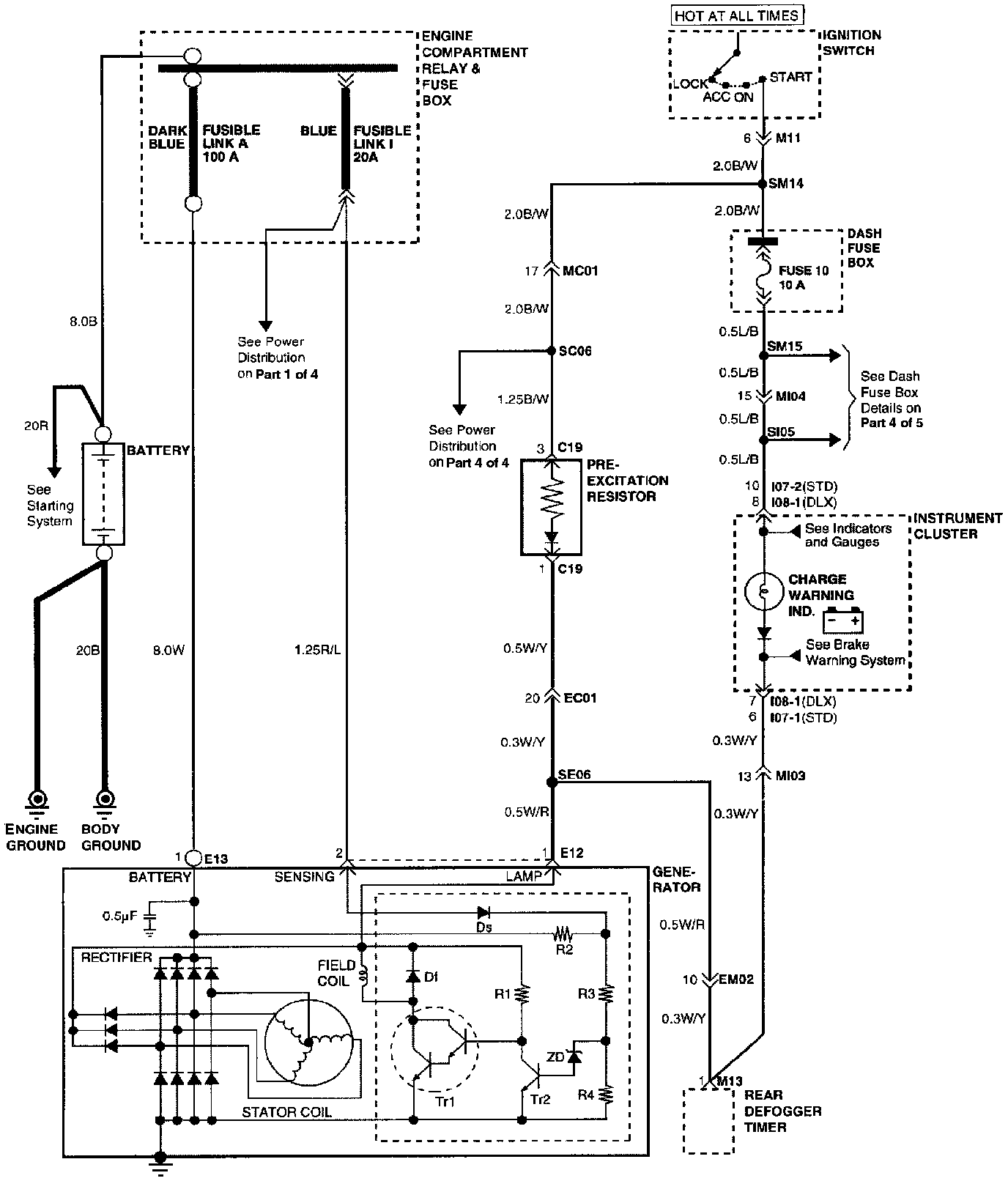

Circuit Diagrams

Connector Configurations Are Found In The Diagram Section Of The Vehicle.
Connector Views


Connector Locations Are Found In The Locations Section Of The Charging System.
