DTC 38

DESCRIPTION








- The motor pump relay supplies battery voltage to the motor pump.

- The ABS Control Module (ABSCM) switches the motor relay ON and operates the ABS motor pump.

- If a problem occurs in the ABS system, the ABSCM disables the motor pump relay.

WIRING DIAGRAM





- Refer to image for circuit schematic.

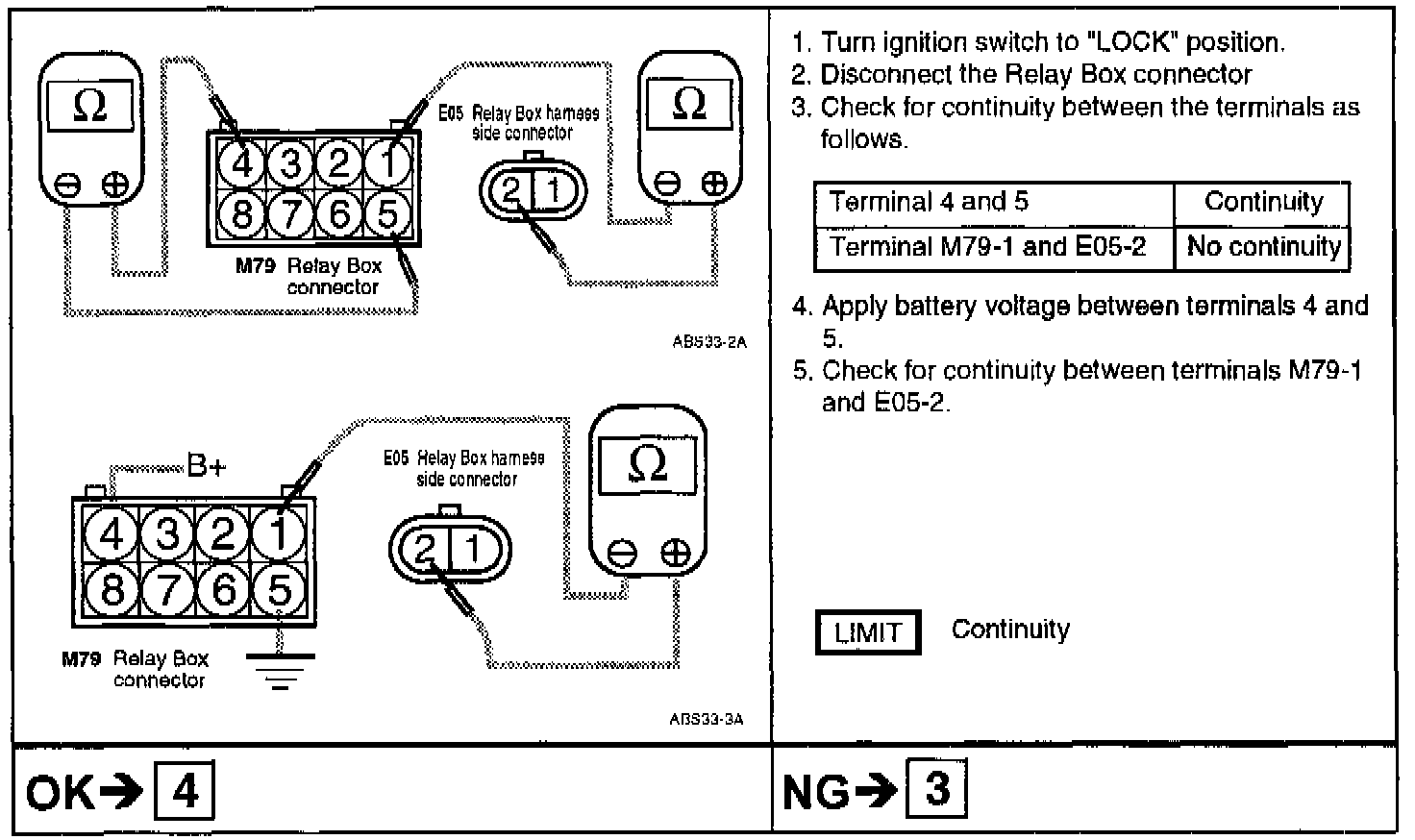

INSPECTION PROCEDURE





1. Check for voltage between the Relay Box terminal E06-1 and BODY GND. Check motor pump.





2. Check ABS-Relay Box (Motor pump relay)





3. Check resistance between each terminal of ABS Control Module (ABSCM) connector
