Troubleshooting Hints

1. Check the fusible link K (30 A) and fuse No. 16 (10 A) for blower control system.

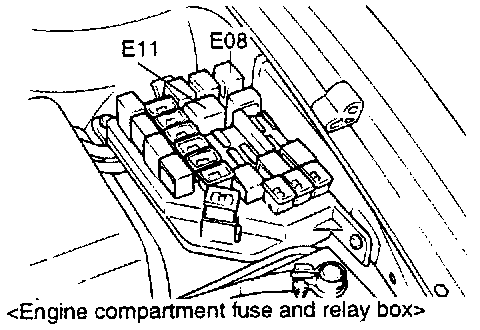

2. Check that blower relay (E11) is properly mounted in the engine compartment relay box.

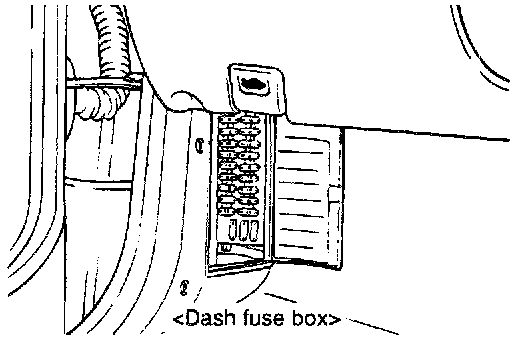

3. Check fuse No. 1 (10 A) in the dash fuse box and A/C fuse (10 A) in the engine compartment relay & fuse box for A/C control system.
4. Check that A/C relay (E08) is properly mounted in engine compartment relay & fuse box.




5. Check that A/C system is properly charged.
6. Check fuse No.8 (20 A) in the dash fuse box and the Fusible Link D (BLUE, 20 A) in the engine compartment relay & fuse box for condenser fan control.
