Parking Brake System: Adjustments

1. Pull the brake lever with a force of approximately 20 kg (44 lbs.), and count the number of clicks.
Parking brake lever stroke
[Standard value]: 7 - 8 clicks

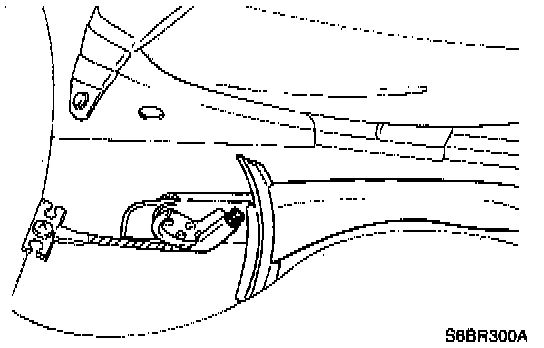

2. If the number of notches is not within the standard value, adjust the cable length with the adjusting nut of the equalizer.
3. The indicator light will go out when the brake lever is fully released, and will light with the lever is pulled up one notch. If it does not operate, check the bulb and/or switch.
4. After the adjustment, check that the rear brakes do not drag with the parking brake lever released.
